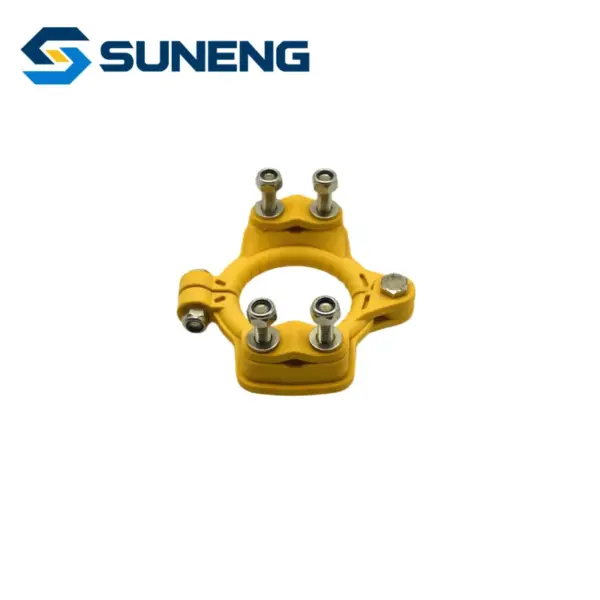

CDGL 10kV/20kV Aluminum Alloy Anti-Wind Cable Clamp for Overhead Power Lines
Product Overview
The CDGL anti-wind cable clamp is designed to secure insulated overhead conductors and prevent cable movement caused by wind, vibration and environmental loads. It is suitable for 10kV and 20kV lines and supports conductor sizes from 25 to 240mm².
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Suitable for 10kV and 20kV overhead distribution lines
- Compatible with conductor sizes from 25 to 240mm²
- Aluminum alloy structure provides strength and corrosion resistance
- Helps prevent cable swing, twisting and wind-induced displacement
- Suitable for different insulated cable diameters
- Easy to install and suitable for long-term outdoor use

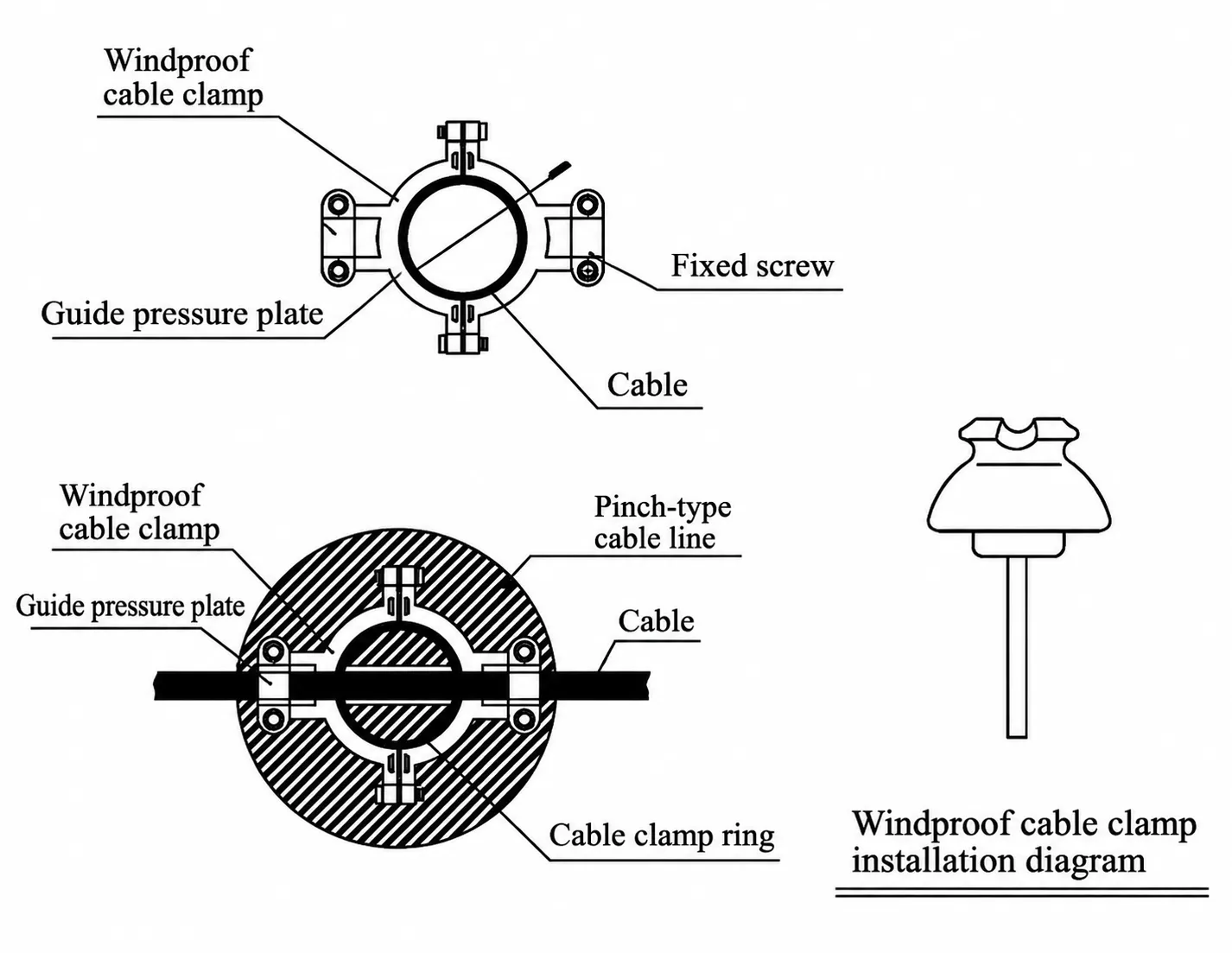

Product Structure
Technical Specifications
| Model | Applicable Voltage | Applicable Conductor Cross-section | Insulator Neck Clamping Size |
|---|---|---|---|
| CDGL-P6 | 10KV | 25-240mm² | Φ54-56mm |
| CDGL-PS15 | 10KV | 25-240mm² | Φ62-66mm |
| CDGL-P15T | 10KV | 25-240mm² | Φ66-72mm |
| CDGL-PSN | 20KV | 25-240mm² | Φ70-76mm |
| CDGL-P15 | 10KV | 25-240mm² | Φ80-84mm |
| CDGL-P20 | 10KV | 25-240mm² | Φ100-106mm |
Applications
Medium-voltage overhead distribution lines
Wind-prone power-line sections
Pole-mounted cable installations
Utility grid construction and maintenance
Rural and industrial power networks
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
Open Full Enquiry PageRelated Products
Nut-1 Adjustable Type Ut Cable Wedge Clamp for Overhead Power Line with ISO CE Certified

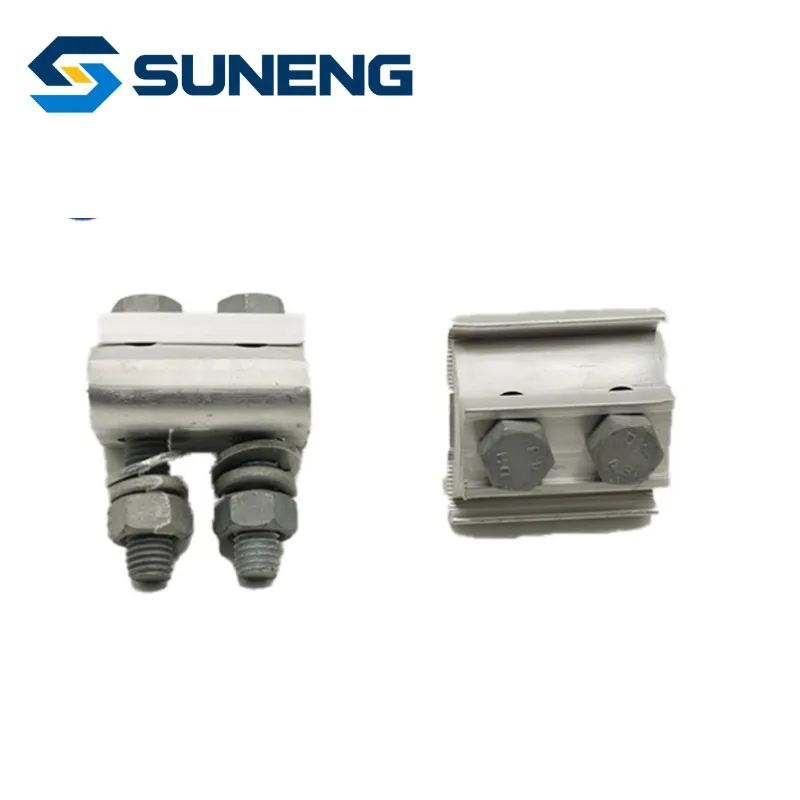

Jbl Reinforced Aluminum Electrical Pg Wire Clamp Parallel Groove Clamp
