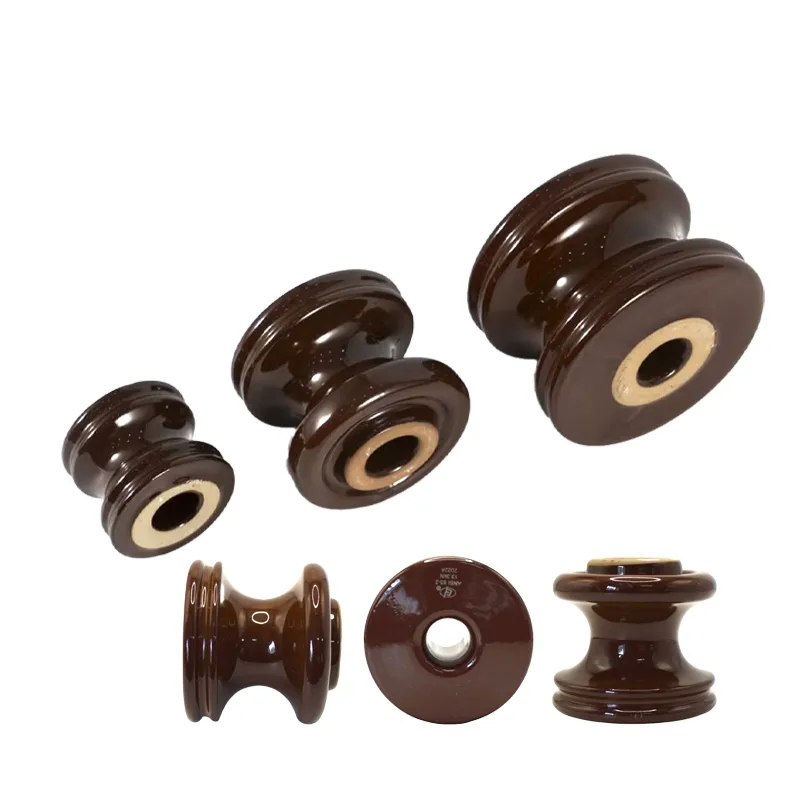

ANSI 53-2 C29.5 Electrical Ceramic Spool Insulator Porcelain 0.4kv~11kv Insulators
August 26, 2026
ANSI 53-2 Spool Type Porcelain Insulator complies with ANSI C29.2 standard, designed for low-voltage overhead distribution lines, guy wire and service drop insulation in North American power grids. It delivers balanced transverse mechanical strength and reliable basic insulation performance for guying and secondary line applications.
Core Technical Parameters
ANSI Class: 53-2
Compliance Standard: ANSI C29.2, IEC, CE, ISO
Outdoor Service Life: Over 30 Years
OEM & ODM Customization: Supported
Transverse Strength: 3,000 lbs (13.6 kN)
Low Frequency Dry Flashover Voltage: 25 kV
Vertical Low Frequency Wet Flashover Voltage: 12 kV
Horizontal Low Frequency Wet Flashover Voltage: 15 kV
Approximate Net Weight: 0.55 kg
