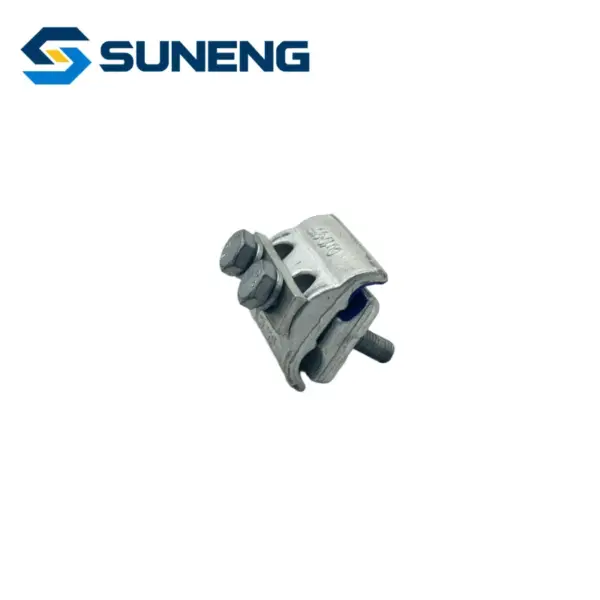

CAPG Aluminum Bimetallic Parallel Groove Clamp for Overhead Power Lines
Product Overview
The copper-aluminum bimetallic parallel groove clamp is used to connect conductors made from different metals in power transmission and distribution systems. Its parallel groove structure provides secure conductor positioning and reliable electrical contact.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Suitable for copper-to-aluminum conductor connections
- Helps prevent galvanic corrosion between dissimilar metals
- Strong bolted construction provides secure fastening
- Reliable current transfer with stable contact pressure
- Suitable for outdoor overhead line applications
- Easy to install and maintain with standard tools
Technical Specifications
| Description | Type | Specification | Bolt number |
|---|---|---|---|
| Bimetal PG Clamp, CAPG Type | CAPG-A1 | Cu 6-50 mm², Al 16-70 mm² | Single bolt |
| Bimetal PG Clamp, CAPG Type | CAPG-A2 | Cu 10-95 mm², Al 25-150 mm² | Single bolt |
| Bimetal PG Clamp, CAPG Type | CAPG-B1 | Cu 6-50 mm², Al 16-70 mm² | Double bolts |
| Bimetal PG Clamp, CAPG Type | CAPG-B2 | Cu 10-95 mm², Al 25-150 mm² | Double bolts |
| Bimetal PG Clamp, CAPG Type | CAPG-B3 | Cu 25-185 mm², Al 25-150 mm² | Double bolts |
| Bimetal PG Clamp, CAPG Type | CAPG-C1 | Cu 6-50 mm², Al 16-70 mm² | Tri-bolts |
| Bimetal PG Clamp, CAPG Type | CAPG-C2 | Cu 10-95 mm², Al 25-150 mm² | Tri-bolts |
| Bimetal PG Clamp, CAPG Type | CAPG-C3 | Cu 25-185 mm², Al 35-240 mm² | Tri-bolts |
| Bimetal PG Clamp, CAPG Type | CAPG-C4 | Cu 35-240 mm², Al 35-300 mm² | Tri-bolts |
Applications
Overhead transmission and distribution lines
Copper-aluminum conductor transition points
Substation and transformer connections
Power-line branch and jumper connections
Utility grid expansion and renovation
Industrial and commercial power systems
Workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
