Insulator Link Fittings

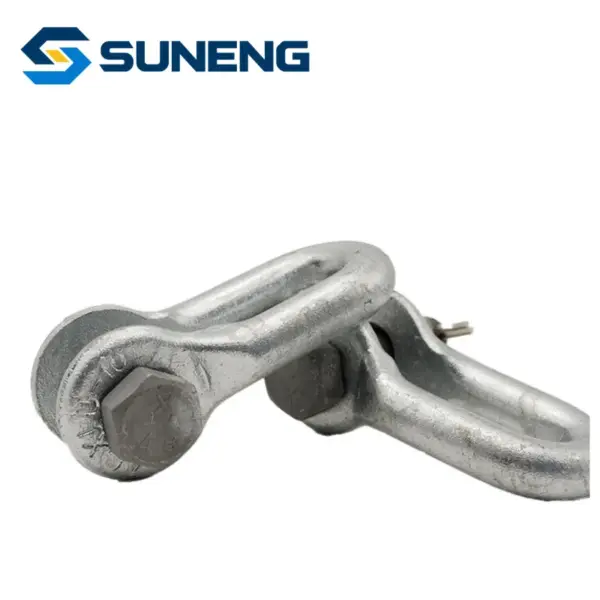

UF-10 Hot DIP Galvanized Parallel Clevis U-Type Link Fittings
Product Overview
UF Series U-Type Clevis Fittings are engineered for mechanical connections between insulators, link fittings and conductor hardware in power transmission systems. Manufactured from forged galvanized steel, they offer high tensile strength, excellent durability and long service life. With specified failure loads from 70kN to 500kN, they are suitable for medium and high-voltage overhead line applications.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Quick Specs
Models: UF-7 to UF-50
Failure Load: 70kN-500kN
Material: Hot-Dip Galvanized Forged Steel
Connection Type: Clevis Connection
Weight Range: 0.50kg-7.00kg
Application: Suspension & Strain Assemblies
Corrosion Protection: Hot-Dip Galvanized
Standards: IEC / GB / DL/T
OEM/ODM Service: Available
Models: UF-7 to UF-50
Failure Load: 70kN-500kN
Material: Hot-Dip Galvanized Forged Steel
Connection Type: Clevis Connection
Weight Range: 0.50kg-7.00kg
Application: Suspension & Strain Assemblies
Corrosion Protection: Hot-Dip Galvanized
Standards: IEC / GB / DL/T
OEM/ODM Service: Available
Product Features
- Designed specifically for insulator string and line hardware connections
- Essential accessory for porcelain, glass and composite insulators
- Hot-dip galvanized steel provides excellent corrosion resistance
- High mechanical strength ensures secure insulator assembly
- Precision manufactured for accurate fit and reliable performance
- Suitable for transmission and distribution line applications

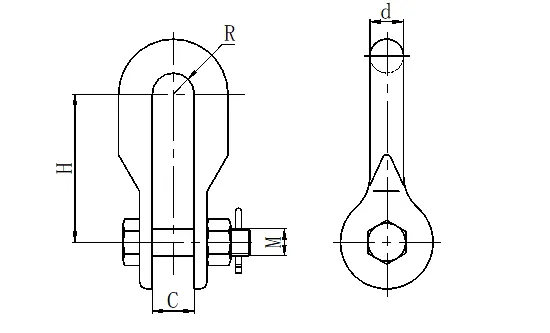

Product Structure
Technical Specifications
| Model | C (mm) | M (mm) | d (mm) | H (mm) | R (mm) | Specified Failure Load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| UF-7 | 20 | 16 | 16 | 60 | 10 | 70 | 0.50 |
| UF-10 | 22 | 18 | 18 | 70 | 11 | 100 | 0.54 |
| UF-12 | 24 | 22 | 20 | 80 | 12 | 120 | 0.96 |
| UF-16 | 26 | 24 | 22 | 90 | 13 | 160 | 1.47 |
| UF-20 | 30 | 27 | 24 | 100 | 15 | 200 | 2.20 |
| UF-25 | 34 | 30 | 26 | 110 | 17 | 250 | 2.79 |
| UF-30 | 38 | 36 | 30 | 130 | 19 | 300 | 3.70 |
| UF-40 | 42 | 42 | 36 | 150 | 21 | 400 | 7.00 |
| UF-50 | 44 | 42 | 36 | 150 | 22 | 500 | 7.00 |
Applications
• Porcelain Insulator String Assembly
• Glass Insulator String Connections
• Composite Insulator Installations
• Overhead Transmission Lines
• Power Distribution Networks
• Utility Pole Hardware Systems
Workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
