Insulator Link Fittings

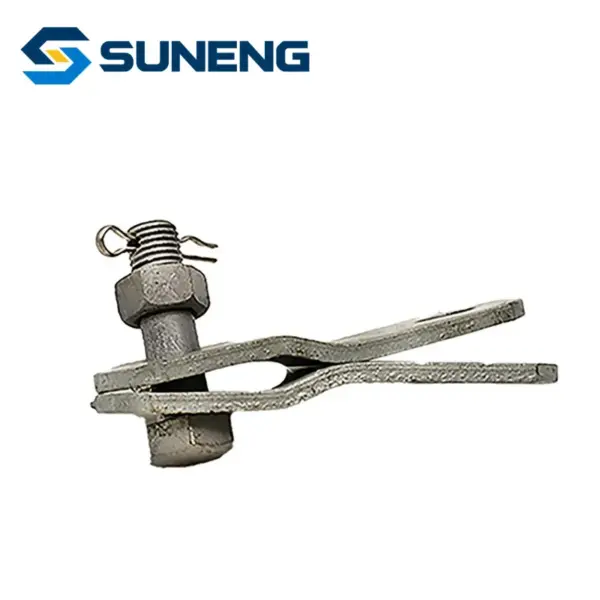

PS Parallel Clevis Galvanized ANSI Electrical Power Fittings
Product Overview
PS Series Clevis Keeper Fittings are used to secure clevis and tongue connections in overhead transmission and distribution systems. Manufactured from high-strength galvanized steel, they provide dependable locking performance, high mechanical strength and long-term operational reliability. Their robust design helps ensure the safety and stability of insulator string assemblies.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Quick Specs
Models: PS-7 to PS-30
Failure Load: 70kN-300kN
Material: Hot-Dip Galvanized Forged Steel
Connection Type: Keeper & Clevis Connection
Weight Range: 0.60kg-5.30kg
Application: Insulator String Hardware
Corrosion Protection: Hot-Dip Galvanized
Standards: IEC / GB / DL/T
OEM/ODM Service: Available
Models: PS-7 to PS-30
Failure Load: 70kN-300kN
Material: Hot-Dip Galvanized Forged Steel
Connection Type: Keeper & Clevis Connection
Weight Range: 0.60kg-5.30kg
Application: Insulator String Hardware
Corrosion Protection: Hot-Dip Galvanized
Standards: IEC / GB / DL/T
OEM/ODM Service: Available
Product Features
- Designed specifically for insulator string and line hardware connections
- Essential accessory for porcelain, glass and composite insulators
- Hot-dip galvanized steel provides excellent corrosion resistance
- High mechanical strength ensures secure insulator assembly
- Precision manufactured for accurate fit and reliable performance
- Suitable for transmission and distribution line applications

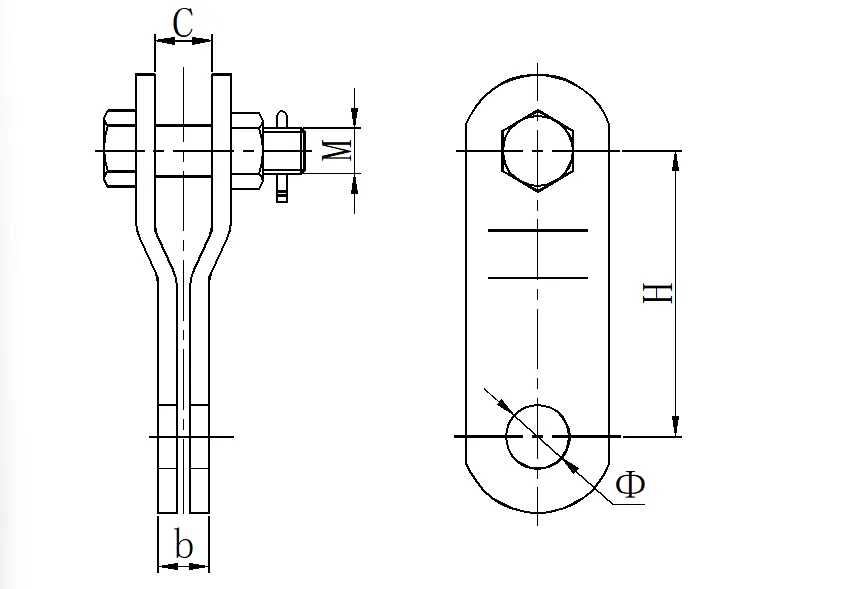

Product Structure
Technical Specifications
| Stable designCatalog No. | Model | C (mm) | b (mm) | M (mm) | Φ (mm) | H (mm) | Specified Failure Load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| PS-7 | 20 | 16 | 16 | 20 | 90 | 70 | 0.60 | |
| PS-10 | 20 | 20 | 18 | 20 | 90 | 100 | 0.80 | |
| PS-12 | 20 | 20 | 22 | 24 | 95 | 120 | 1.50 | |
| PS-16 | 26 | 24 | 24 | 26 | 155 | 160 | 2.70 | |
| PS-30 | 38 | 34 | 36 | 39 | 140 | 300 | 5.30 | |
| PS-0790 | 20 | 16 | 16 | 18 | 90 | 70 | 0.60 | |
| PS-10100 | 20 | 18 | 18 | 20 | 100 | 100 | 0.80 |
Applications
• Porcelain Insulator String Assembly
• Glass Insulator String Connections
• Composite Insulator Installations
• Overhead Transmission Lines
• Power Distribution Networks
• Utility Pole Hardware Systems
• Substation Electrical Projects
