Fxbw-22/70 Composite Polymeric Electrical Rubber Insulator Polymer Insulator
Product Overview
FXBW-22/70 Composite Suspension Insulators are designed for 22kV overhead transmission & distribution lines. Built with silicone rubber sheds and fiberglass core rod, it delivers lightweight design, excellent hydrophobic anti-pollution performance and reliable mechanical tensile strength, perfectly suited for outdoor tension suspension power grids in polluted coastal, industrial and mountain areas.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Attributes
Model: FXBW-22/70
Shed Diameter: 120/80 mm
Shed Spacing: 60 mm
Section Length: 420 mm
Dry Arcing Distance: 241 mm
Leakage Distance: 750 mm
Specified Mechanical Load: 70 kN
Routine Test Load: 35 kN
Rated Voltage: 22 kV
Low Frequency Dry Flashover Voltage: 95 kV
Low Frequency Wet Flashover Voltage: 70 kV
Positive Critical Impulse Flashover Voltage: 140 kV
Negative Critical Impulse Flashover Voltage: 145 kV
Product Features
- 70kN stable tensile load for suspension line tension
- 750mm long leakage distance with strong anti-fouling property
- Hydrophobic silicone rubber resists dust, salt fog and acid rain
- Lightweight for easy transport and field installation
- Excellent dry & wet flashover insulation performance
- Anti-aging, UV-resistant for long outdoor service

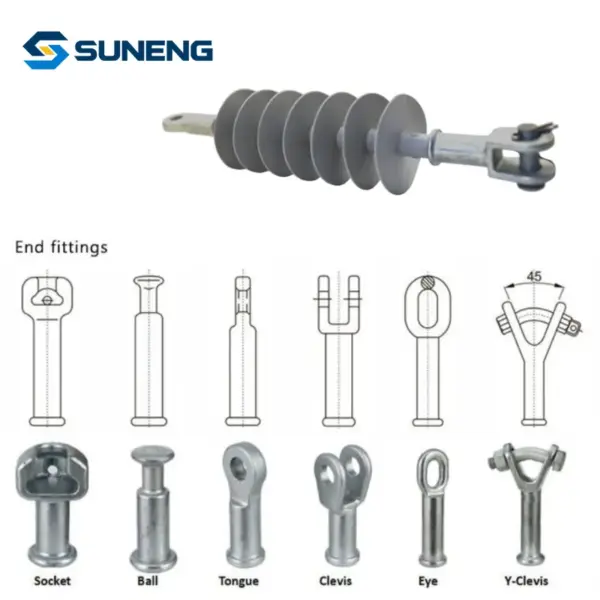

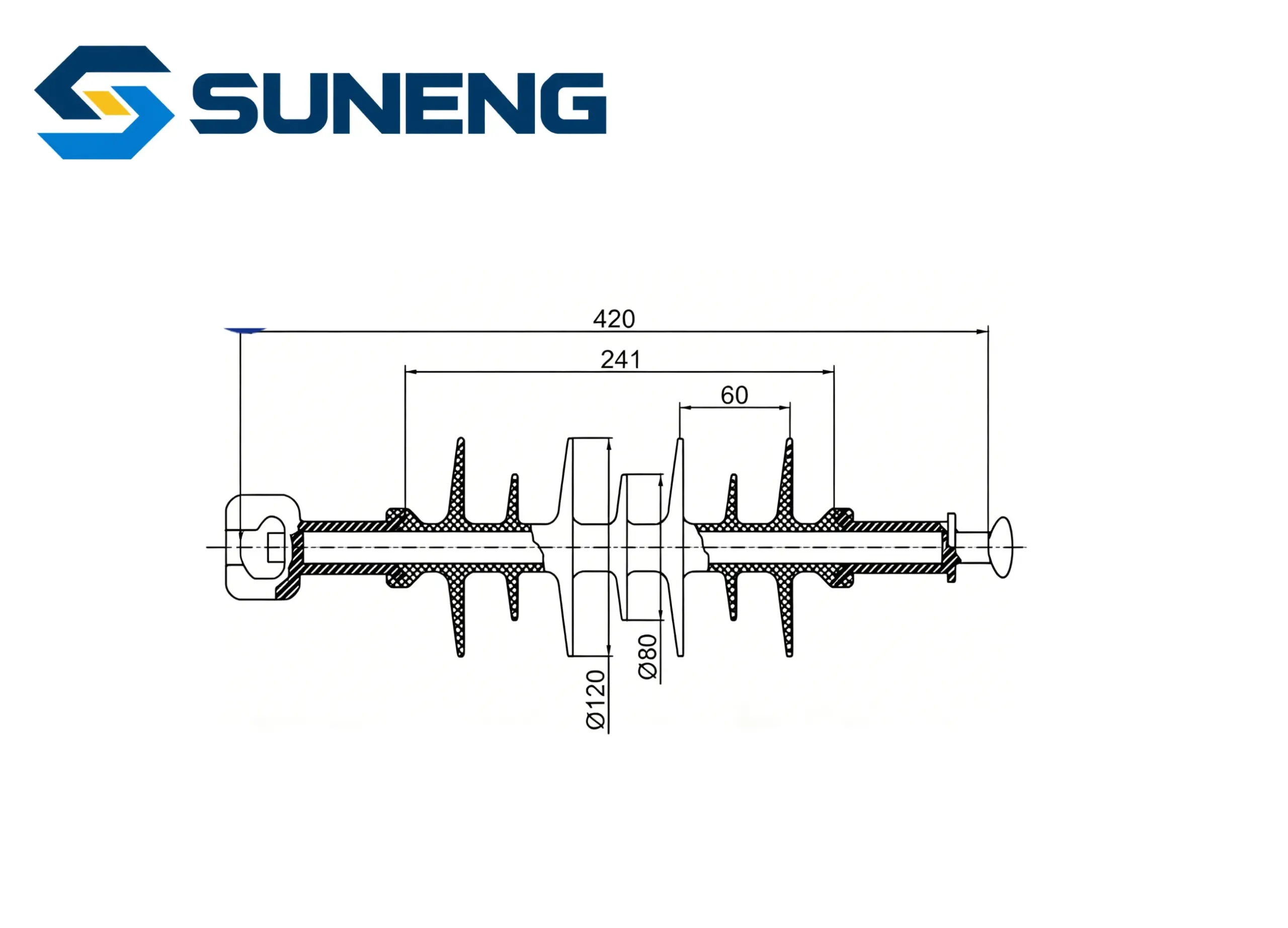

Product Structure

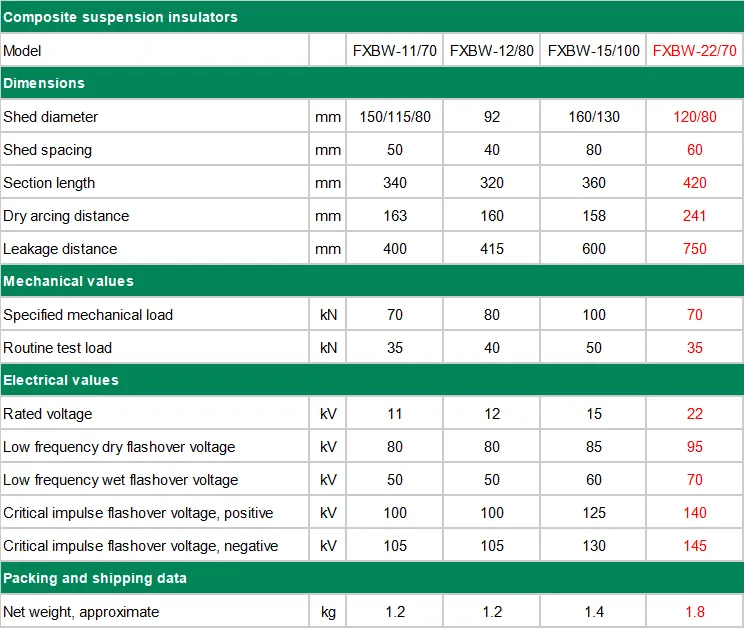

Performance & Dimensions
Applications
• 22kV overhead transmission & distribution lines
• Tower suspension tension sections
• Industrial, coastal and heavily polluted power grids
• Mountain and rural overhead electrical infrastructure
• Urban medium-voltage overhead transmission projects
workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
