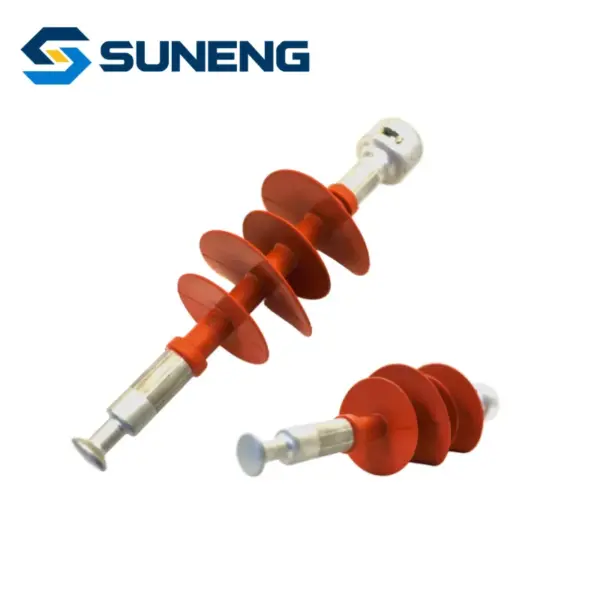

Fxbw-15/100 Composite Polymeric Electrical Suspension Rubber Insulator
Product Overview
FXBW-15/100 Composite Suspension Insulator is a silicone rubber composite insulator designed for 15kV overhead power transmission lines. It features lightweight structure, excellent anti-pollution hydrophobic silicone sheds and stable 100kN mechanical load capacity, effectively solving pollution flashover issues in coastal, industrial and foggy areas.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Attributes
Standard: IEC, GB, CE, ISO
Shed Diameter: 160/130 mm
Shed Spacing: 80 mm
Section Length: 360 mm
Dry Arcing Distance: 158 mm
Leakage Distance: 600 mm
Specified Mechanical Load: 100 kN
Routine Test Load: 50 kN
Rated Voltage: 15 kV
Low Frequency Dry Flashover Voltage: 85 kV
Low Frequency Wet Flashover Voltage: 60 kV
Positive Critical Impulse Flashover Voltage: 125 kV
Negative Critical Impulse Flashover Voltage: 130 kV
Standard: IEC, GB, CE, ISO
Shed Diameter: 160/130 mm
Shed Spacing: 80 mm
Section Length: 360 mm
Dry Arcing Distance: 158 mm
Leakage Distance: 600 mm
Specified Mechanical Load: 100 kN
Routine Test Load: 50 kN
Rated Voltage: 15 kV
Low Frequency Dry Flashover Voltage: 85 kV
Low Frequency Wet Flashover Voltage: 60 kV
Positive Critical Impulse Flashover Voltage: 125 kV
Negative Critical Impulse Flashover Voltage: 130 kV
Product Features
- 100kN high mechanical load for heavy-duty suspension
- Hydrophobic silicone sheds with 600mm leakage distance for strong anti-pollution
- Lightweight, easy transportation and field installation
- Self-cleaning surface reduces routine maintenance
- Stable dry, wet and impulse insulation performance
- UV, salt fog and acid rain resistant for harsh outdoor environments

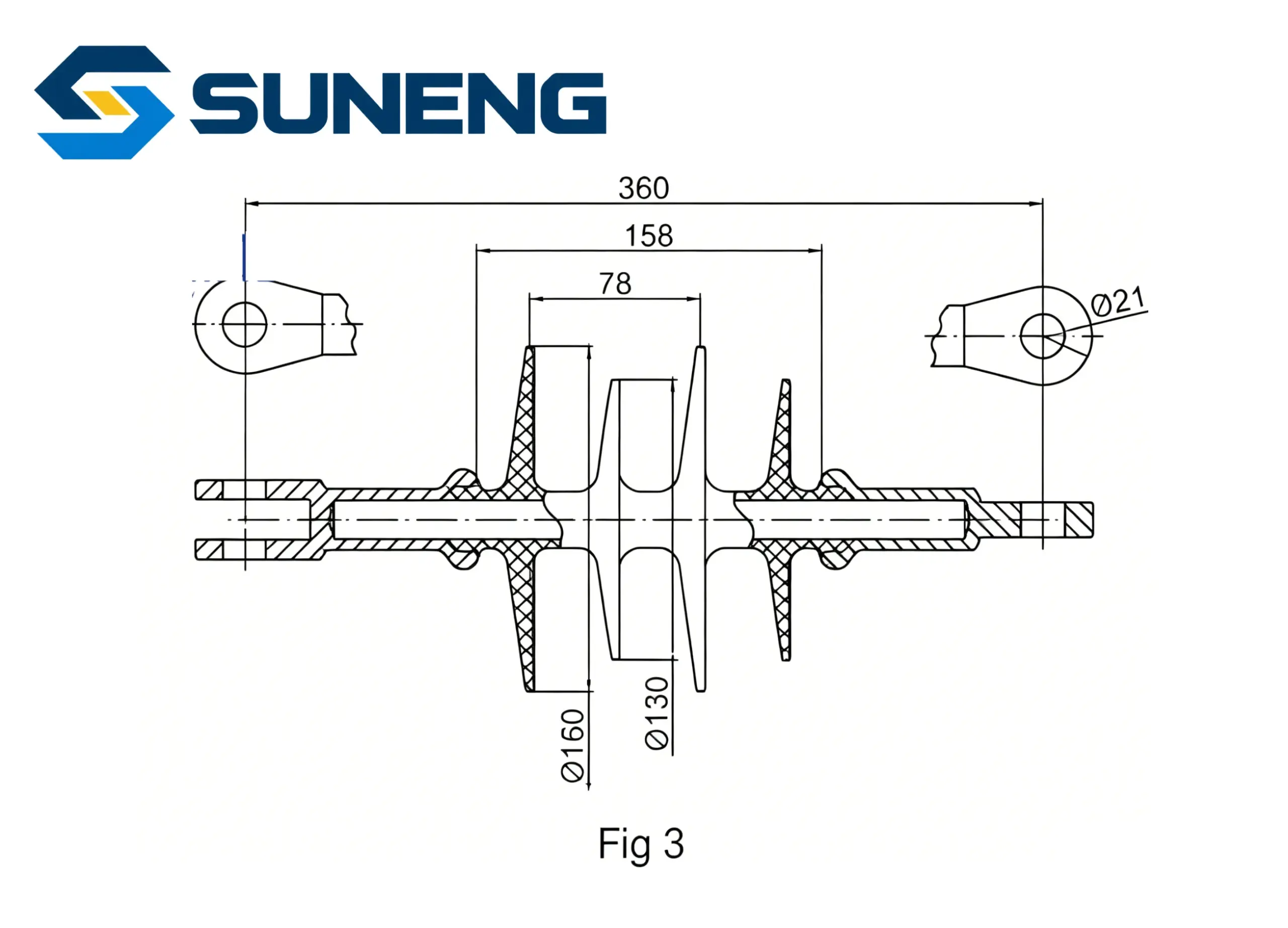

Product Structure
Performance & Dimensions
Applications
• 15kV overhead medium voltage transmission lines
• Tower suspension insulator string assemblies
• Coastal, chemical and medium-heavy pollution power grids
• Mountain fog-prone overhead power projects
• Urban and rural distribution power transmission infrastructure
