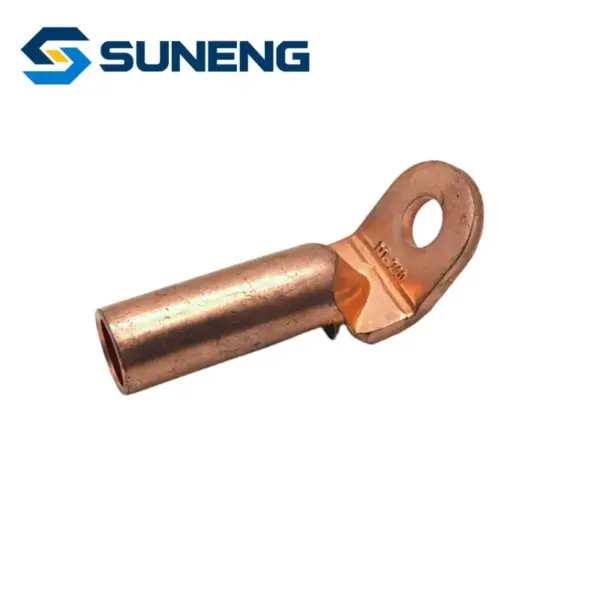

DT Oil-Blocking Copper Cable Lug and Sealed Compression Terminal Lugs for Power Cables
Product Overview
The DT oil-blocking copper cable lug is designed for terminating copper power cables while helping prevent oil or insulating compound leakage through the cable conductor. Its high-conductivity copper body provides reliable current transfer and mechanical strength.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- High-conductivity copper construction
- Oil-blocking design helps prevent cable fluid leakage
- Suitable for compression and crimped cable termination
- Low contact resistance supports stable current transmission
- Strong barrel and palm provide secure mechanical connection
- Available in multiple cable sizes and stud-hole options

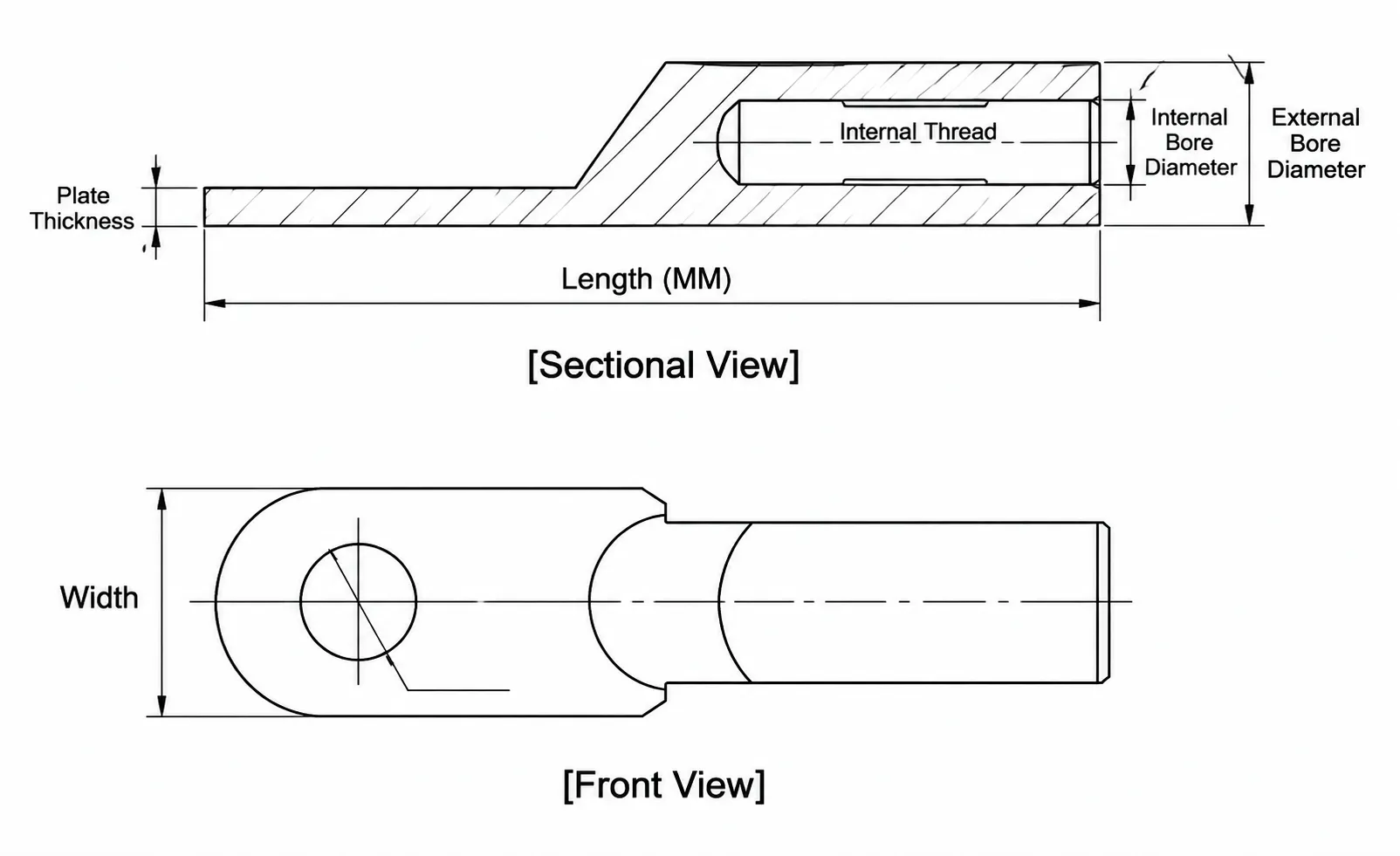

Product Structure
Technical Specifications
| Model | Length | Plate Width | Screw Hole | Plate Thickness | Threading Depth | Outer Pipe Diameter | Inner Pipe Diameter |
|---|---|---|---|---|---|---|---|
| DT-10 | 64.2 | 16 | 8.5 | 2.2 | 23 | 9 | 5.8 |
| DT-16 | 66.2 | 16 | 8.5 | 2.6 | 23.5 | 10 | 6.5 |
| DT-25 | 72.2 | 18 | 8.5 | 2.6 | 30.2 | 11 | 7.5 |
| DT-35 | 75.3 | 20 | 10.5 | 3 | 38 | 12 | 8.5 |
| DT-50 | 85.5 | 23 | 10.5 | 3.7 | 42 | 14 | 10 |
| DT-70 | 92.5 | 26 | 12.5 | 4 | 44 | 16 | 11.3 |
| DT-95 | 103 | 28 | 12.5 | 4.2 | 49 | 18 | 13.2 |
| DT-120 | 108 | 30 | 14.5 | 5 | 51.5 | 20 | 15.3 |
| DT-150 | 117.5 | 34 | 14.5 | 5.2 | 55.5 | 22 | 17 |
| DT-185 | 125 | 37 | 16.5 | 5.6 | 60 | 24 | 19 |
| DT-240 | 135.6 | 40 | 16.5 | 6.5 | 63.5 | 27 | 21 |
| DT-300 | 150.5 | 50 | 21 | 7.5 | 67.5 | 30 | 23.5 |
| DT-400 | 160 | 50 | 32 | 8 | 74 | 34 | 26 |
| DT-500 | 170 | 55 | 21 | 8.5 | 75 | 38 | 29.3 |
| DT-630 | 207 | 60 | 21 | 10 | 85 | 45 | 34 |

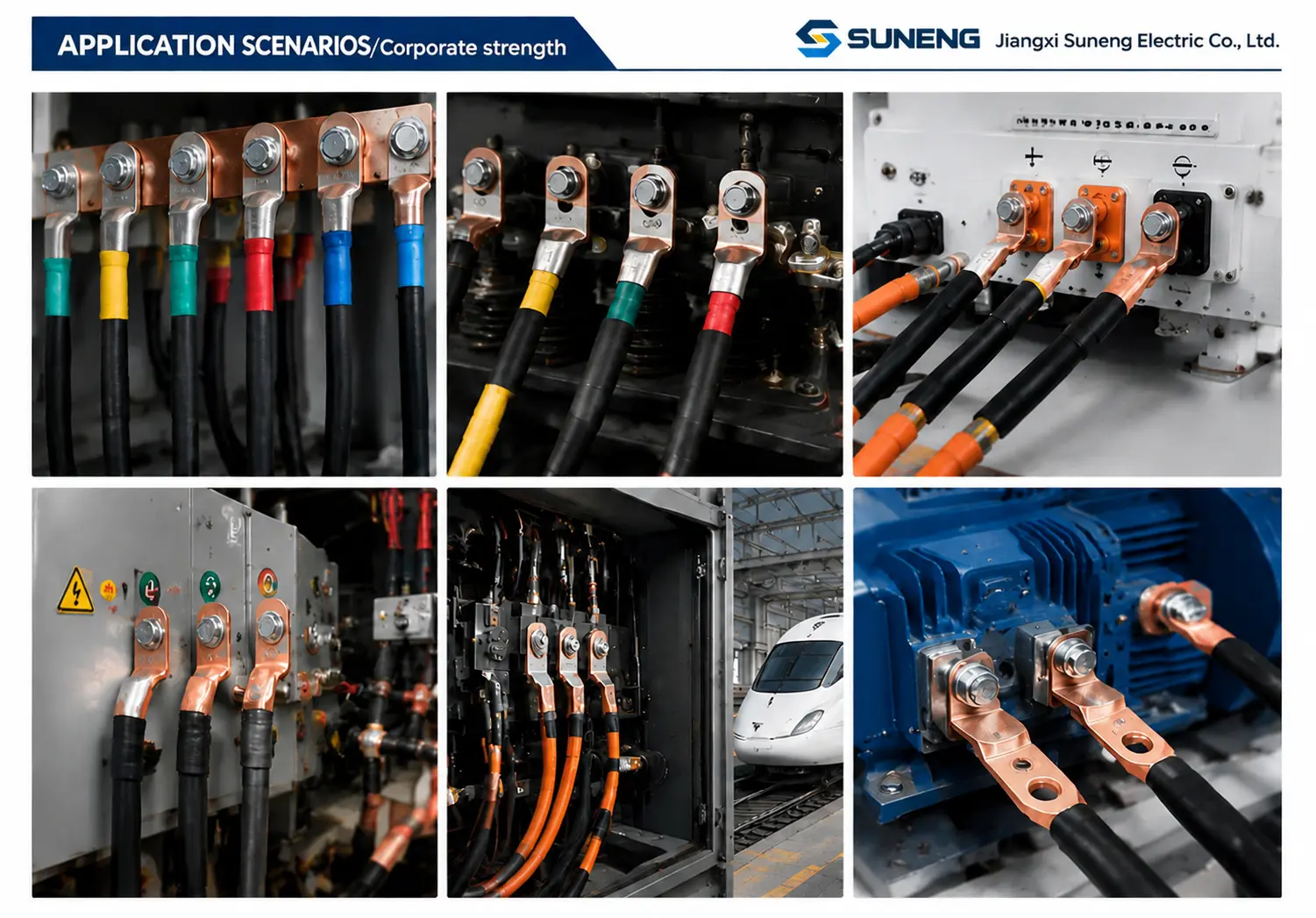

Applications
Oil-filled and insulated power cable systems
Transformer cable terminals
Switchgear and distribution cabinets
Substation cable connections
Industrial power equipment
Workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
Open Full Enquiry PageRelated Products
L-Type Right-Angle Cable Connector and Branch Terminal Lug for 10–120mm² Power Cables

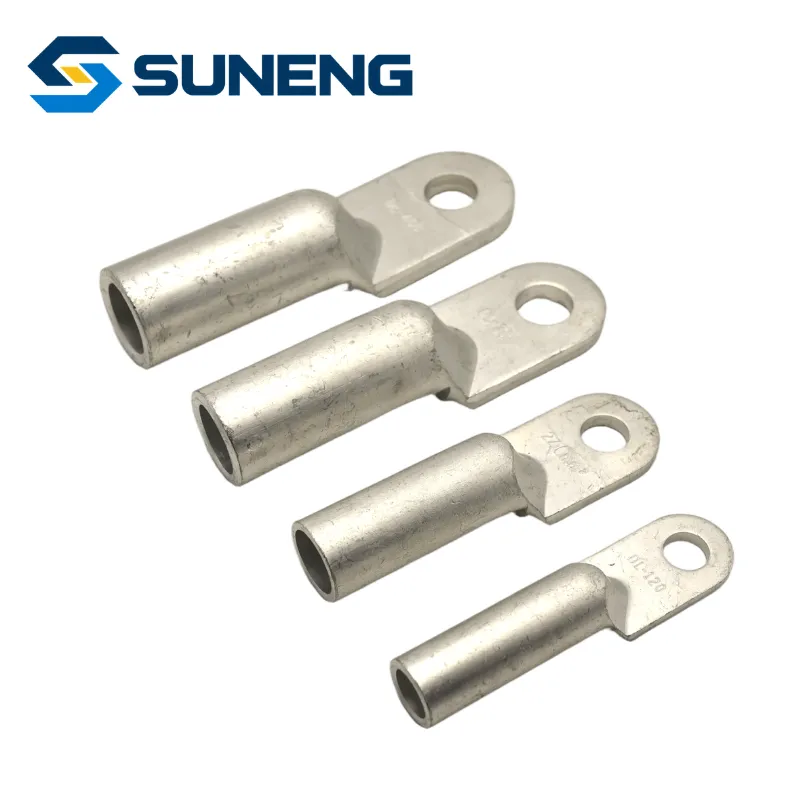

DL Cable Lug and Compression Terminal for Power Cable and Busbar Connections
Sy (C=90°) Hydraulic Crimping Single-Hole 58/60 mm² Electrical Aluminum Terminal Lugs

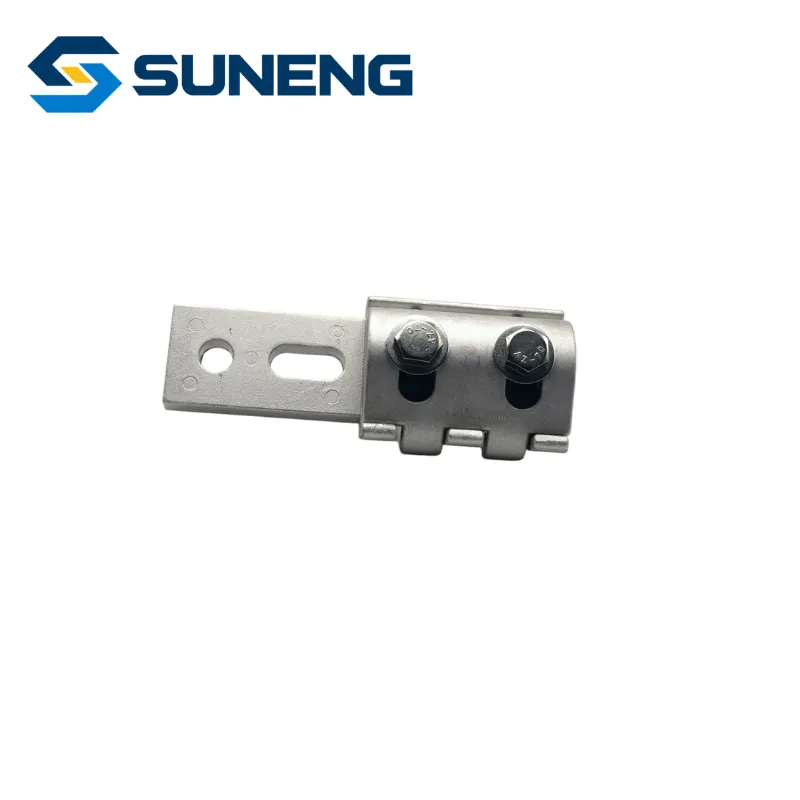

SGB Bolt-Type Aluminum Electrical Equipment Clamp for Overhead Power Lines and Substations
DLS Double Hole Aluminum Cable Lug for High Current Busbar and Transformer Connections
The SL Series Bolt Type Aluminum Terminal Clamp

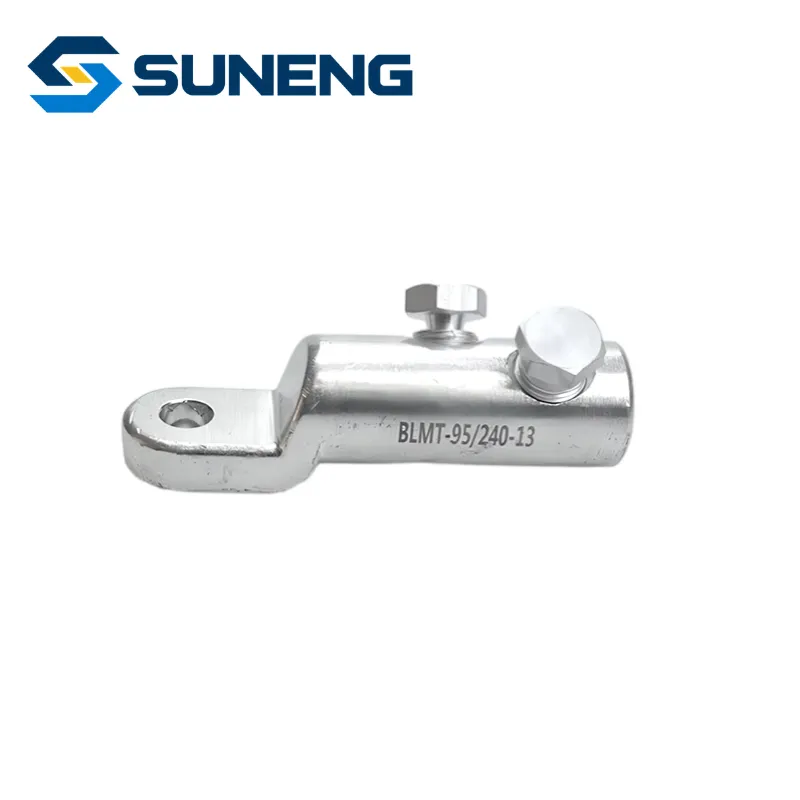

AMS Aluminum Alloy 2 Torque Bolt Mechanical Shear Bolt Lugs Terminal Lugs for 35-240 mm² Cable
