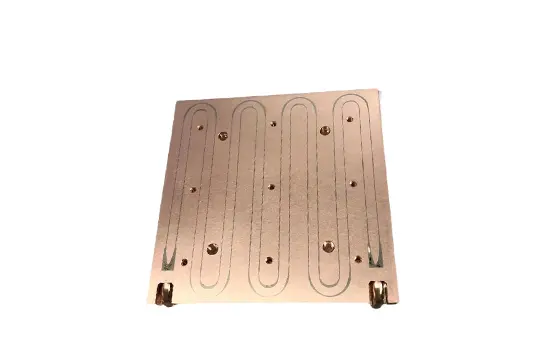

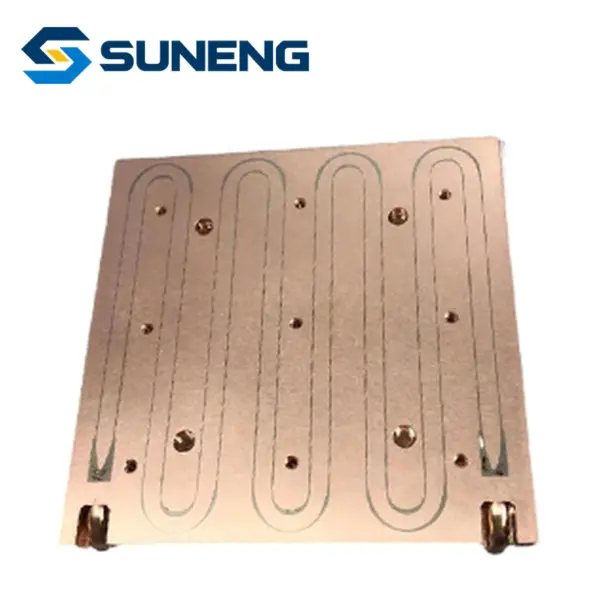

Custom Brazed Cold Plate
- Brazed internal passages
- Material and channel options
- Custom mounting layout
Product Overview
A configurable brazed plate for liquid cooling of batteries, power modules and electronic equipment. Select the material, flow path and fluid interfaces around the application.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Construction & Cooling Design
A brazed assembly joins a base, cover and internal flow features into a coolant-carrying plate. Available channel arrangements include serpentine, parallel and microchannel layouts; material and finish are selected for the circuit.
Technical Specifications
Values below describe the available configuration. Final dimensions and operating conditions are defined in the approved drawing and order specification.
| Property | Typical range / option |
|---|---|
| Materials | Aluminium, copper or stainless steel |
| Joining | Vacuum brazing / brazing |
| Channel options | Serpentine, parallel, microchannel |
| Coolant options | Water, glycol, dielectric fluid |
| Heat load | 200–5,000+ W |
| Flow | 0.5–10 L/min |
| Working pressure | 2–10 bar |
| Thermal resistance | 0.02–0.15 K/W |
| Finish options | Anodizing / nickel plating |
Applications
- EV battery systems
- IGBT and power electronics
- Energy storage
- Semiconductor equipment
Configure Your Cold Plate
Send SUNENG your installation drawing or a marked-up sketch, quantity and delivery destination. Identify the component contact areas, port locations, mounting holes and dimensions that must remain fixed.
For thermal selection, include heat load, coolant composition, inlet temperature, available flow and allowable pressure drop. Specify any inspection records needed for sample acceptance. Use the enquiry form below or the full enquiry page to discuss drawings and project requirements.
Ordering Questions
What is needed to confirm fit?
Provide the equipment model and revision together with a mounting drawing. We will use these to define the configuration for quotation.
Can the connections be changed?
Include the required thread or coupling, hose routing and available installation space in your enquiry so they can be reviewed with the plate design.
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
