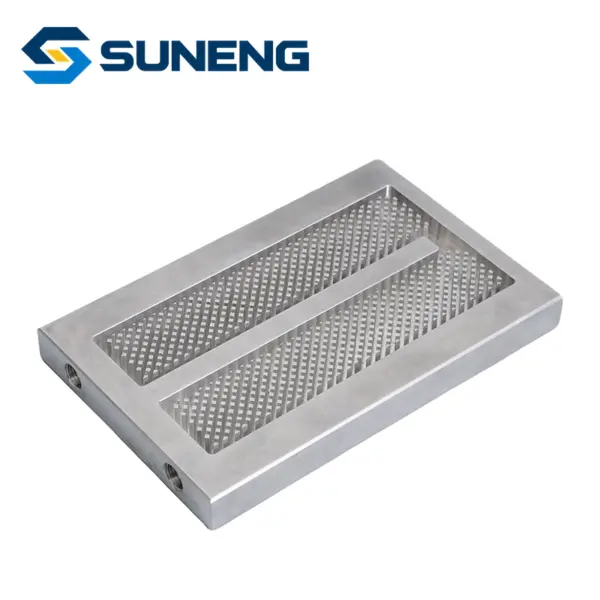

Brazed Liquid Cold Plate
- Aluminium brazed construction
- Multi-channel cooling
- Custom circuit layout
Product Overview

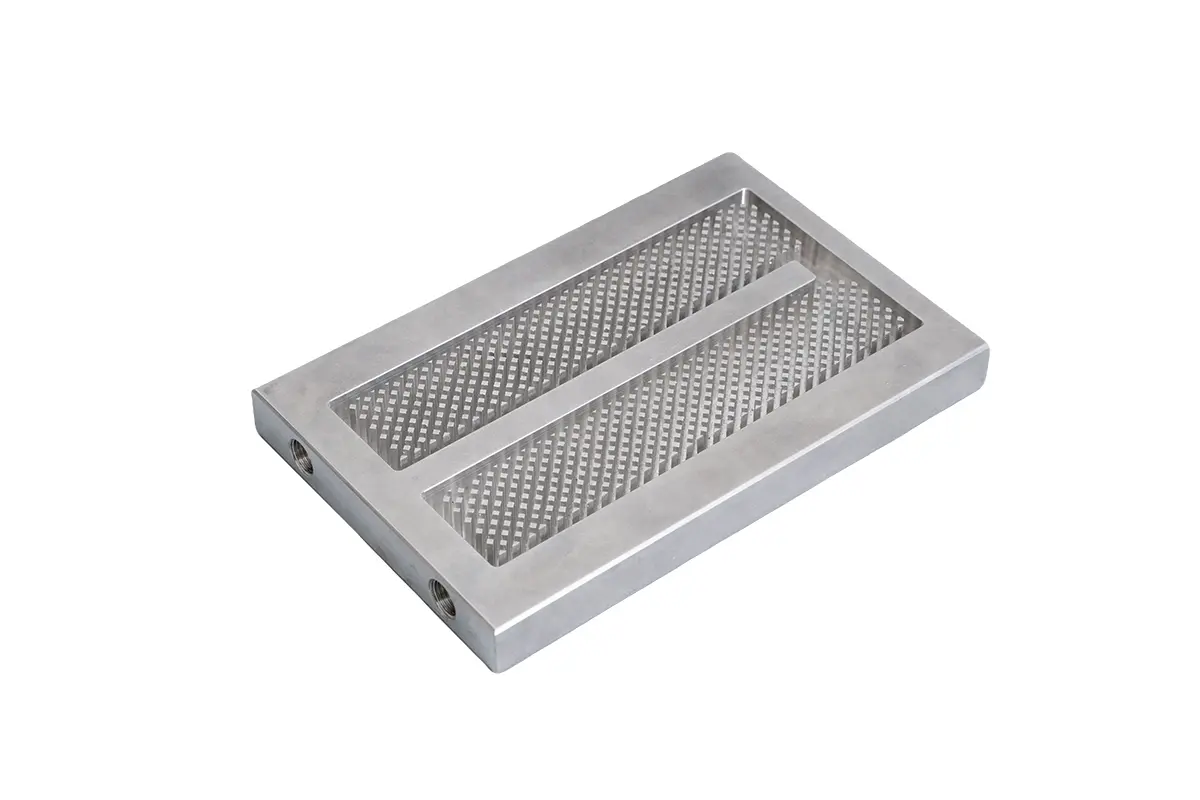

An aluminium brazed cold plate with internal fins or multiple coolant channels for compact, high-density thermal management. Channel arrangement and flow configuration are tailored to the equipment.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Construction & Cooling Design
Brazing joins the plate and internal heat-transfer features into an enclosed fluid path. Multi-pass and multi-circuit arrangements can distribute coolant across the mounting surface, while internal fins increase the area available for heat exchange.
Technical Specifications
Values below describe the available configuration. Final dimensions and operating conditions are defined in the approved drawing and order specification.
| Property | Typical range / option |
|---|---|
| Aluminium grades | AA3003 / AA6061 |
| Process | Vacuum brazing / controlled-atmosphere brazing |
| Coolant | Water / water-glycol |
| Maximum operating pressure | 1.5–3.0 MPa, design dependent |
| Heat flux | Up to 500 W/cm², design dependent |
| Channels | Multi-channel / microchannel |
| Flow configuration | Single pass / multi-pass / multi-circuit |
| Operating temperature | −40°C to 120°C |
| Surface flatness | ≤0.05 mm |
| Leakage rate | <1 × 10⁻⁶ mbar·L/s |
Applications
- Power electronics
- EV thermal management
- Data-centre equipment
- Industrial cooling
Configure Your Cold Plate
Send SUNENG your installation drawing or a marked-up sketch, quantity and delivery destination. Identify the component contact areas, port locations, mounting holes and dimensions that must remain fixed.
For thermal selection, include heat load, coolant composition, inlet temperature, available flow and allowable pressure drop. Specify any inspection records needed for sample acceptance. Use the enquiry form below or the full enquiry page to discuss drawings and project requirements.
Ordering Questions
What is needed to confirm fit?
Provide the equipment model and revision together with a mounting drawing. We will use these to define the configuration for quotation.
Can the connections be changed?
Include the required thread or coupling, hose routing and available installation space in your enquiry so they can be reviewed with the plate design.
