ANSI 55-5 C29.5 Porcelain Pin Type Insulator Ceramic Insulator for 11-33kv Distribution Lines
Product Overview
ANSI 55-5 Porcelain Pin Type Insulators are designed for overhead distribution and utility power line applications. Manufactured from high-strength vitrified porcelain, they provide reliable electrical insulation, excellent mechanical strength, and long-term outdoor durability. Suitable for 11kV–35kV distribution networks, the insulator performs reliably in utility poles, rural electrification projects, and power distribution systems worldwide.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Quick Spec
ANSI Class: ANSI 55-5
ANSI Class: ANSI 55-5
Material: High-Strength Electrical Porcelain
Type: Pin Type Insulator
Color: Brown Glazed
Application Voltage: 11kV–35kV
Leakage Distance: 533 mm
Dry Flashover Voltage: 80 kV
Wet Flashover Voltage: 50 kV
Cantilever Strength: 13.3 kN
Standard: ANSI C29.5 / IEC / CE / ISO9001
Product Features
- High-strength porcelain for reliable mechanical support.
- 533mm leakage distance improves insulation performance.
- 80kV dry flashover voltage ensures stable operation.
- Smooth glazed surface provides excellent anti-pollution capability.
- Suitable for long-term outdoor service in harsh environments.

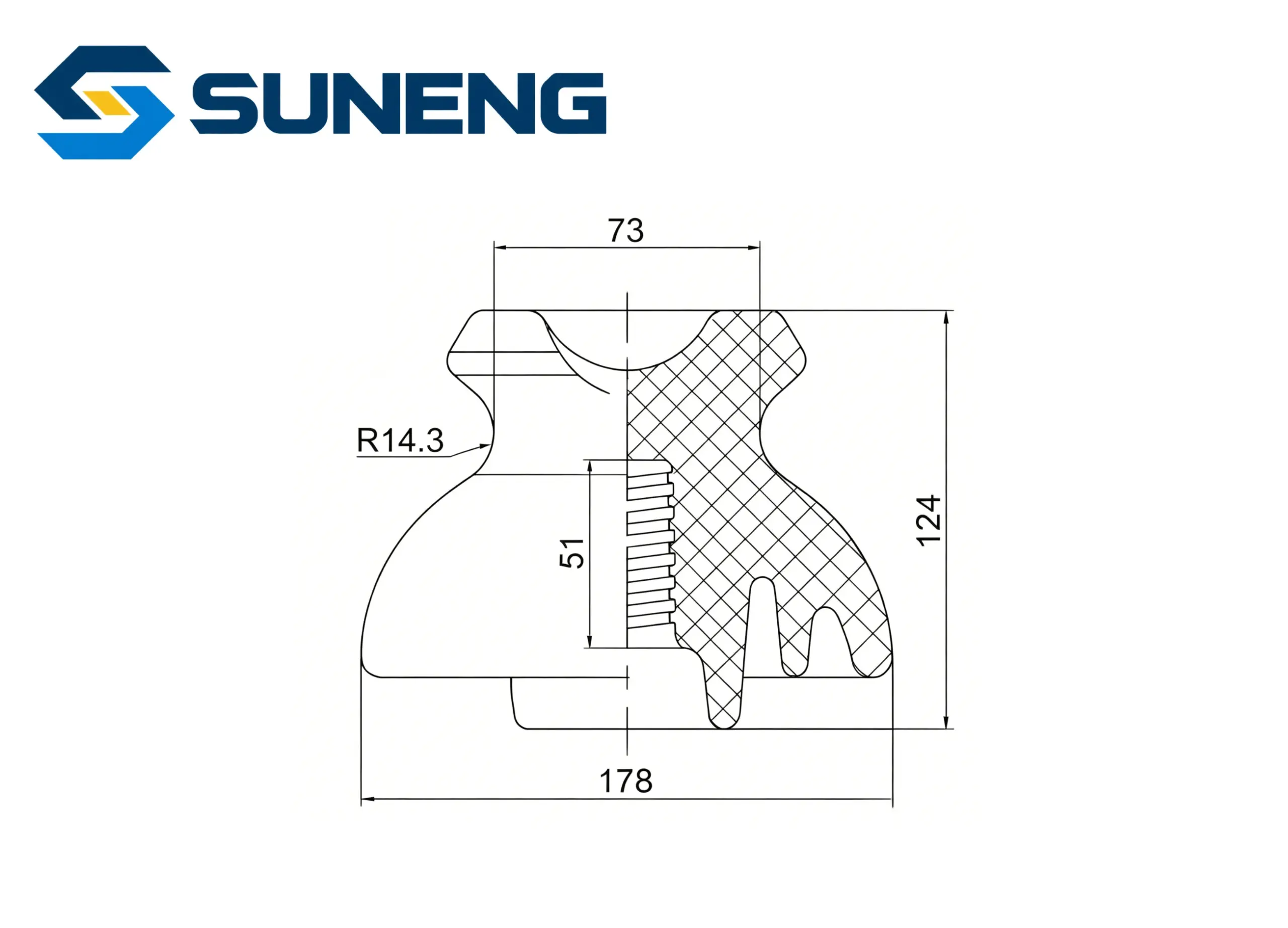

Product Structure

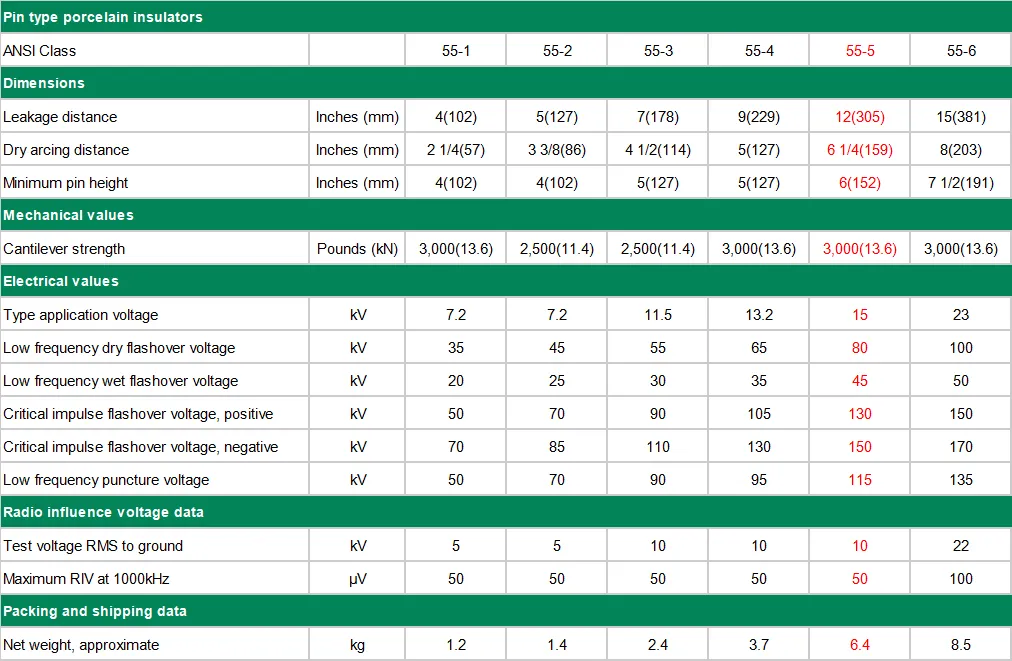

Performance & Dimensions
Applications
• Overhead distribution lines
• Utility pole installations
• Rural electrification projects
• Industrial power networks
• Coastal and polluted areas
• Power grid construction and upgrades
task-mtla1nssg0mdx_结果
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
Open Full Enquiry PageRelated Products

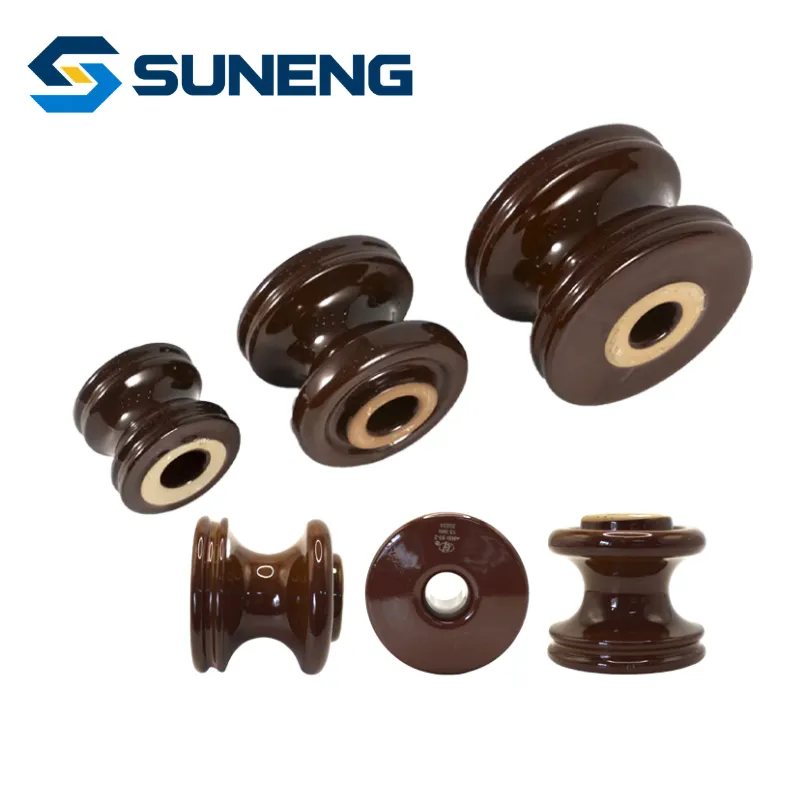

ANSI 53-2 C29.5 Electrical Ceramic Spool Insulator Porcelain 0.4kv~11kv Insulators
ANSI 57-13 C29.6 Electrical Ceramic Line Post Insulators Porcelain 33kv-45kv Insulator
ANSI 57-2 C29.6 Electrical Ceramic Suspension Line Post Insulators Porcelain 33kv Insulator
ANSI 53-2 C29.5 Electrical Ceramic Spool Insulator Porcelain 0.4kv~11kv Insulators

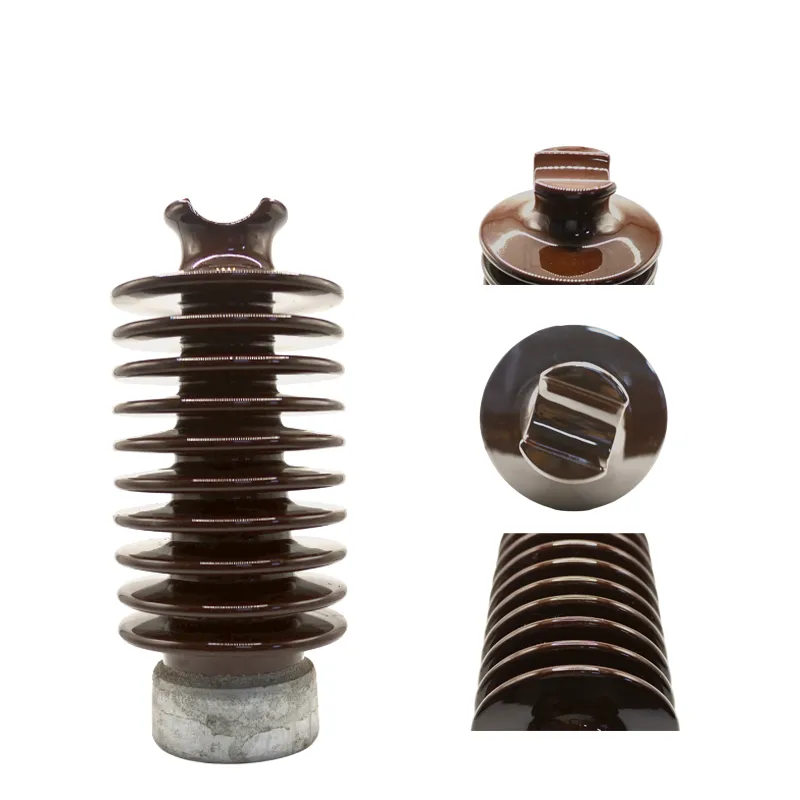

ANSI 57-4 C29.6 Electrical Ceramic Line Post Insulator Porcelain 33kv-55kv Insulators
