China / Yushui, Xinyu, Jiangxi
Luofang 500 kV Main Transformer Expansion
500 / 220 kVSUNENG supplied selected power transmission and distribution products and components for the Luofang capacity-expansion works.
Project context.
The Luofang expansion adds a third main-transformer bank at the existing 500 kV substation in Luofang Town, Yushui District, Xinyu. The new 1,000 MVA bank raises installed transformer capacity from 1,500 MVA to 2,500 MVA.

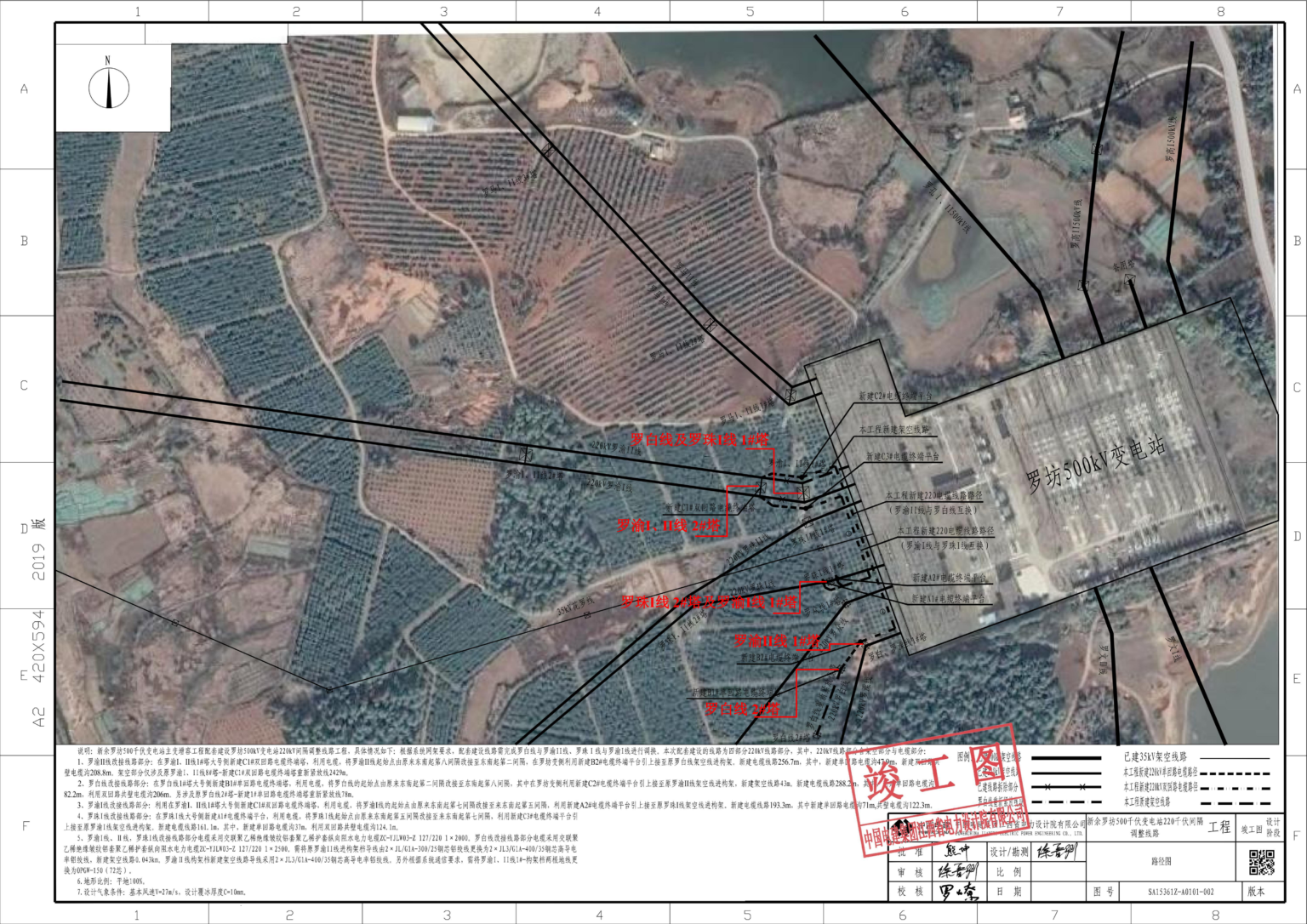

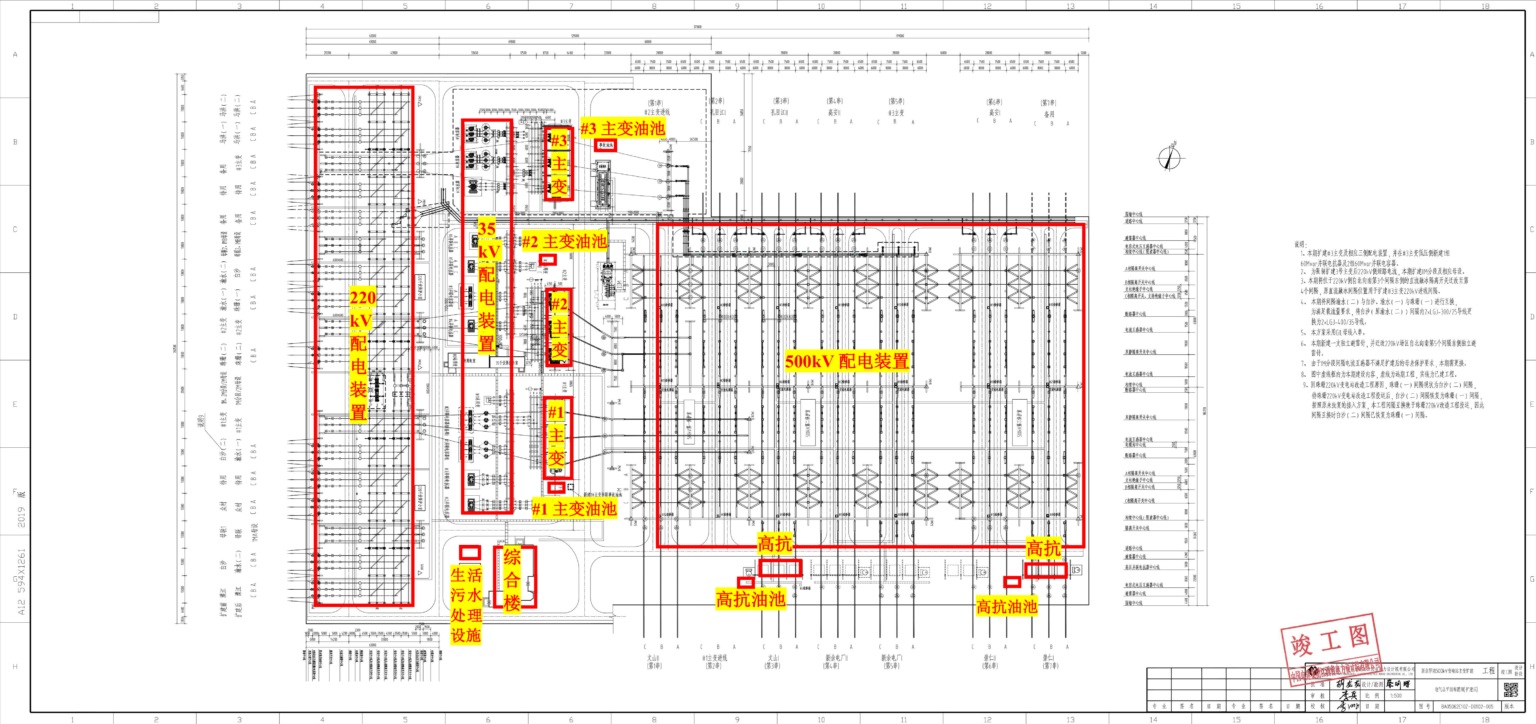

Completed works include two 60 Mvar shunt capacitor banks, one 60 Mvar reactor and reconnections of four 220 kV circuits. Construction ran from 16 May 2025 to 5 June 2026. The as-built electrical general arrangement below identifies the equipment positions and retained station layout; field photographs distinguish the new transformer bank from the wider station context.
Electrical scope
- Main-transformer expansion
- New No. 3 bank: 1 × 1,000 MVA; existing banks: 2 × 750 MVA
- Reactive compensation

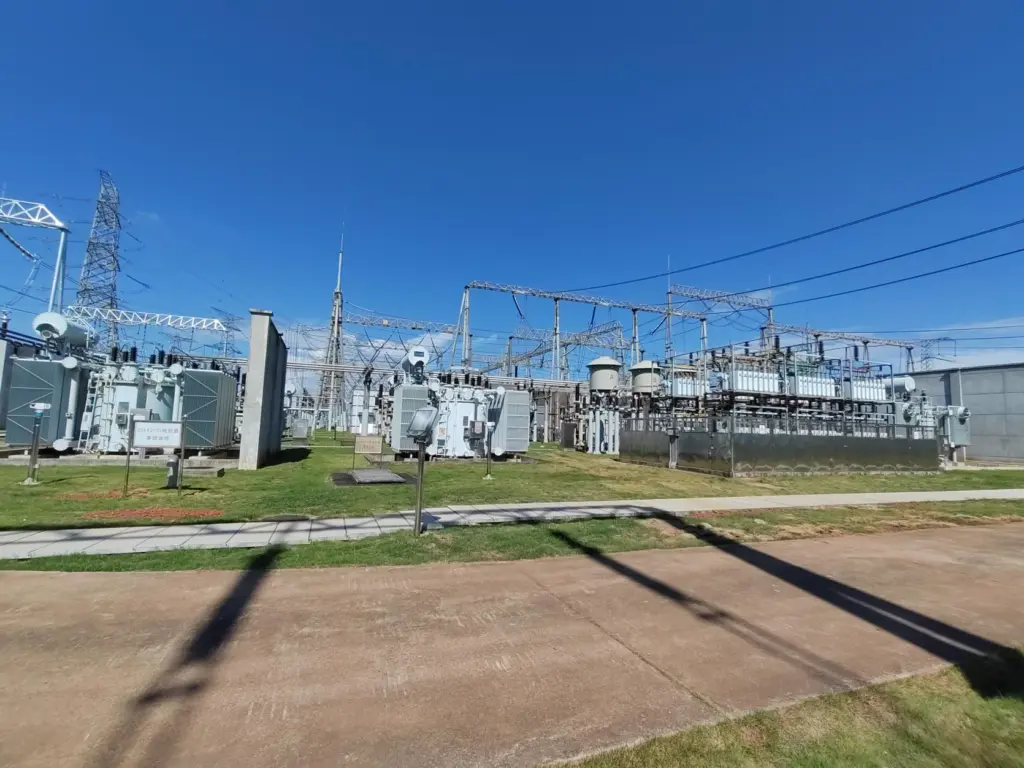

- 2 × 60 Mvar shunt capacitor banks + 1 × 60 Mvar reactor
- Station arrangement

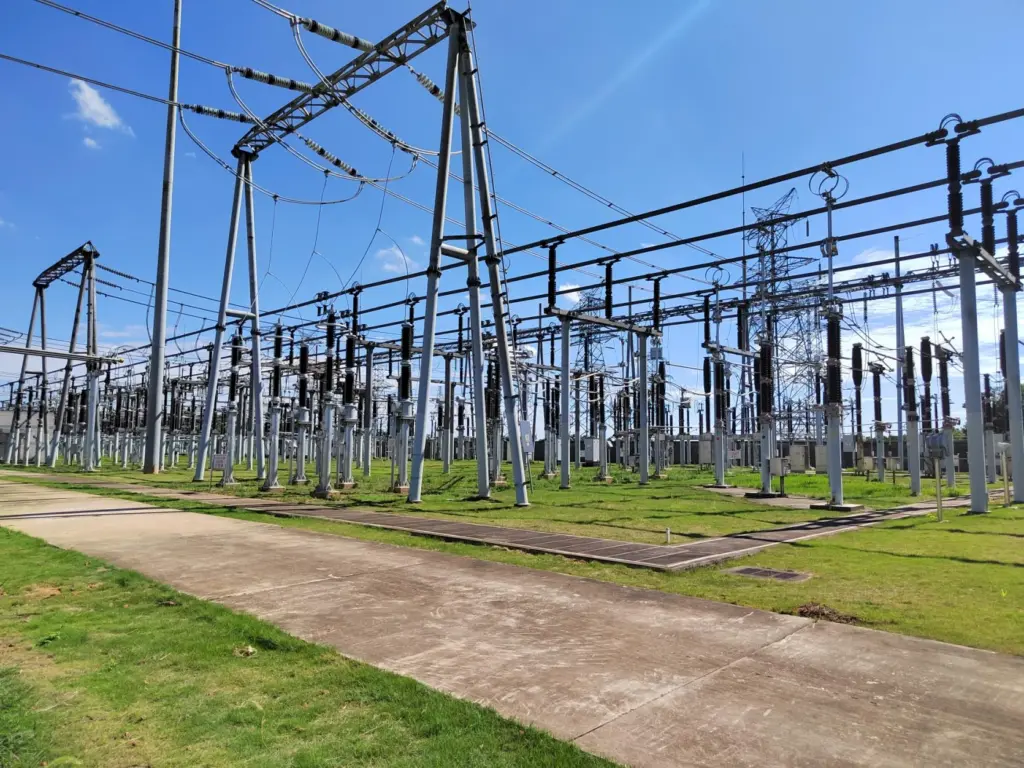

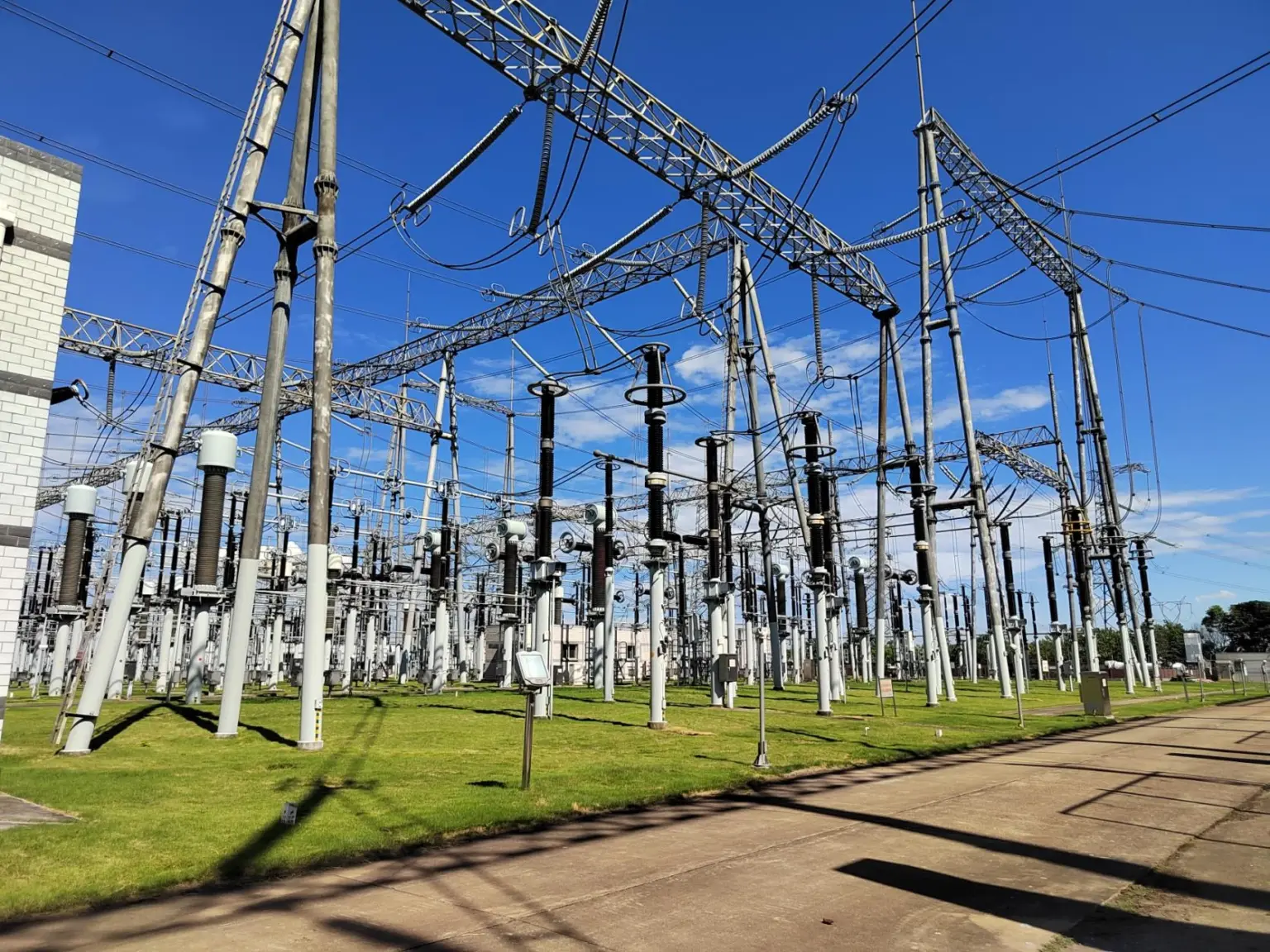

- Outdoor 500 kV and 220 kV AIS switchyards; 35 kV compensation area
- Bay reconnections
- Luobai ↔ Luoyu II; Luozhu I ↔ Luoyu I
- Luobai reconnection
- 331.2 m: 43 m overhead + 288.2 m cable
- Luoyu II reconnection
- 256.7 m cable
- Luozhu I reconnection
- 161.1 m cable
- Luoyu I reconnection
- 193.3 m cable
Electrical drawings
Review the electrical sheets and their equipment and route annotations.
Field imagery
Station equipment and line routes.

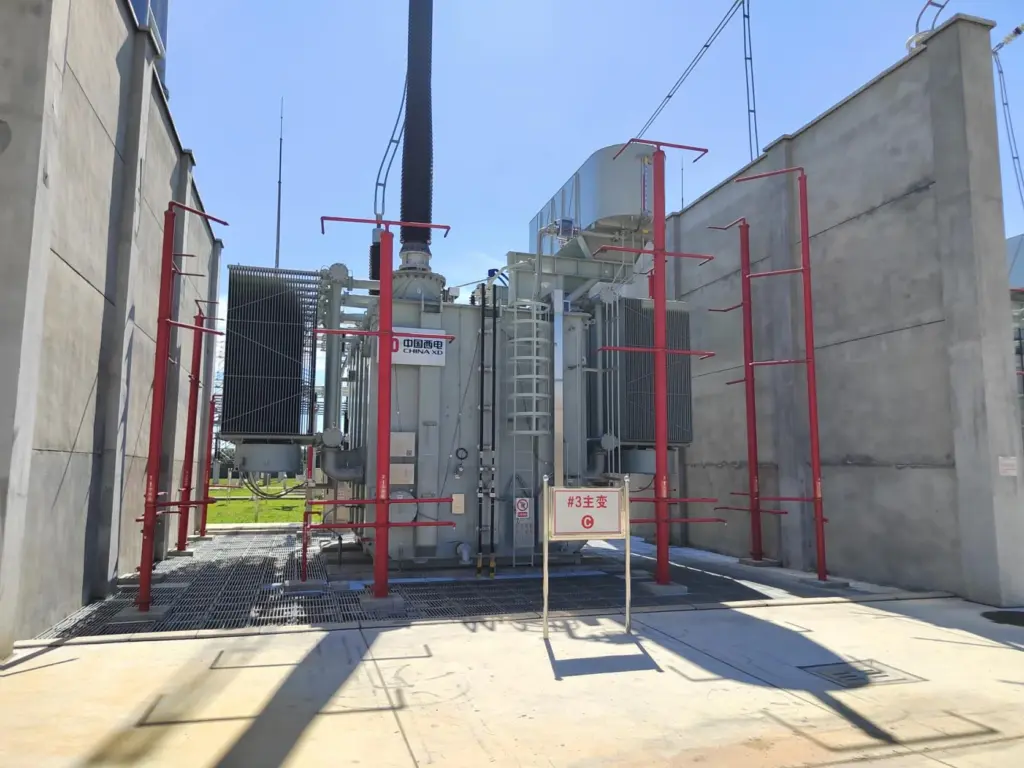

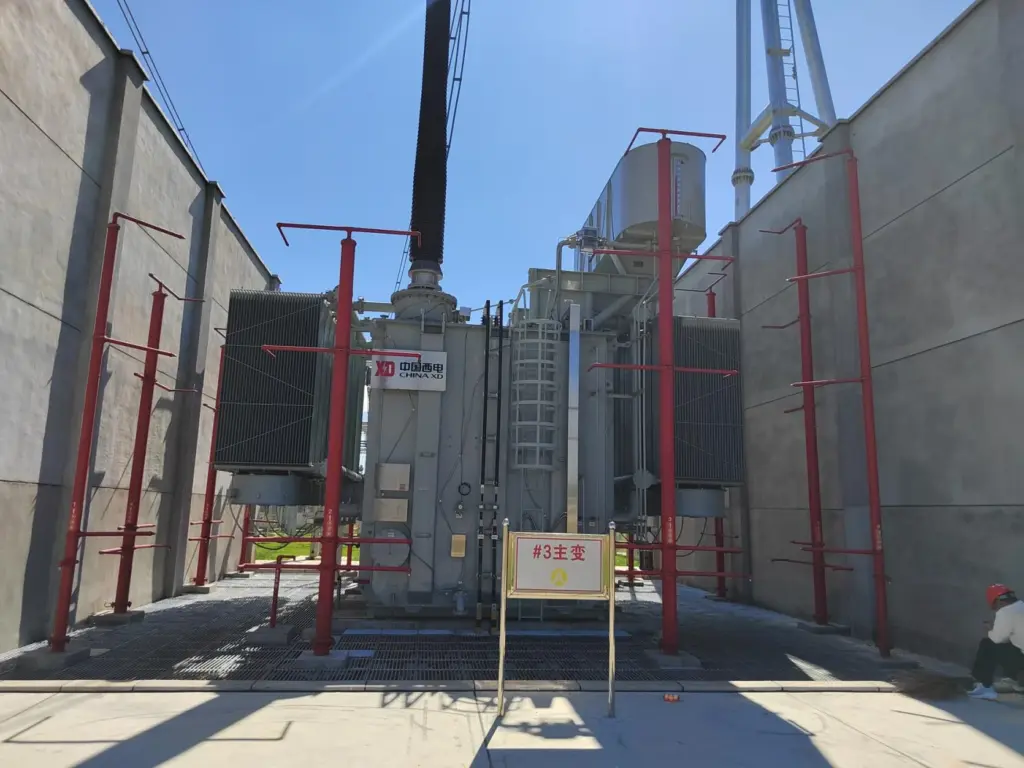

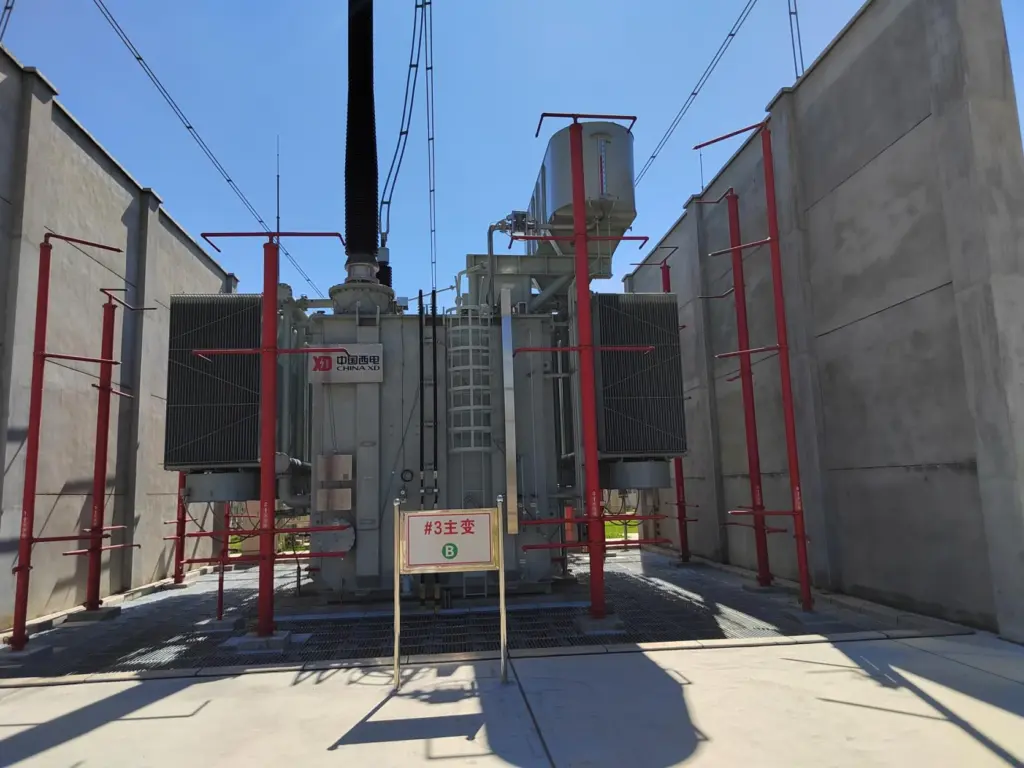

New No. 3 transformer bank

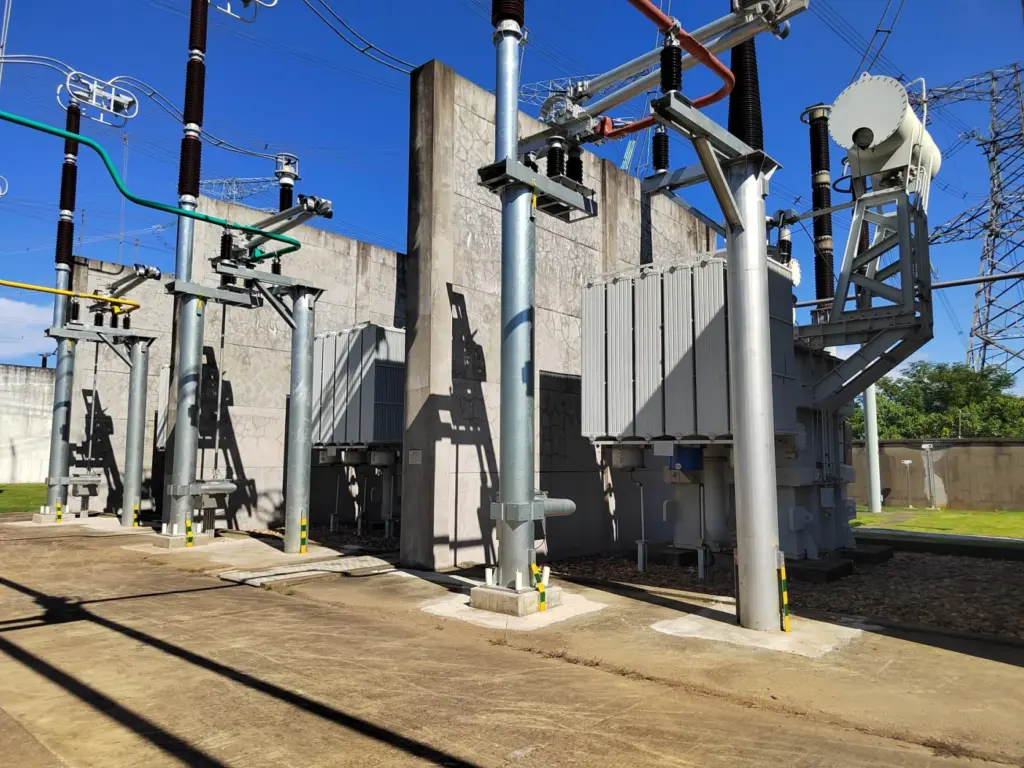

Station context
