China / Shanggao, Yichun, Jiangxi
Shanggao Power Plant 500 kV Outgoing Project
500 kVSUNENG supplied selected electrical products and components for the Shanggao 500 kV outgoing project.
Project context.
The Shanggao outgoing project connects Yichun Power Plant, formerly known as Shanggao Power Plant, to Jinjiang 500 kV substation in Shanggao County, Jiangxi. The completed Yijin line runs for 30.863 km and includes 72 new towers, together with one additional 500 kV outgoing bay within Jinjiang substation.
Most of the route uses single-circuit construction. The final 0.113 km enters Jinjiang on a double-circuit terminal arrangement with one circuit installed. The route crosses the Jinjiang River and passes beneath the ±800 kV Binjin line. The photographs show tower foundations, steelwork connections, overhead spans and the station approach.
Electrical scope

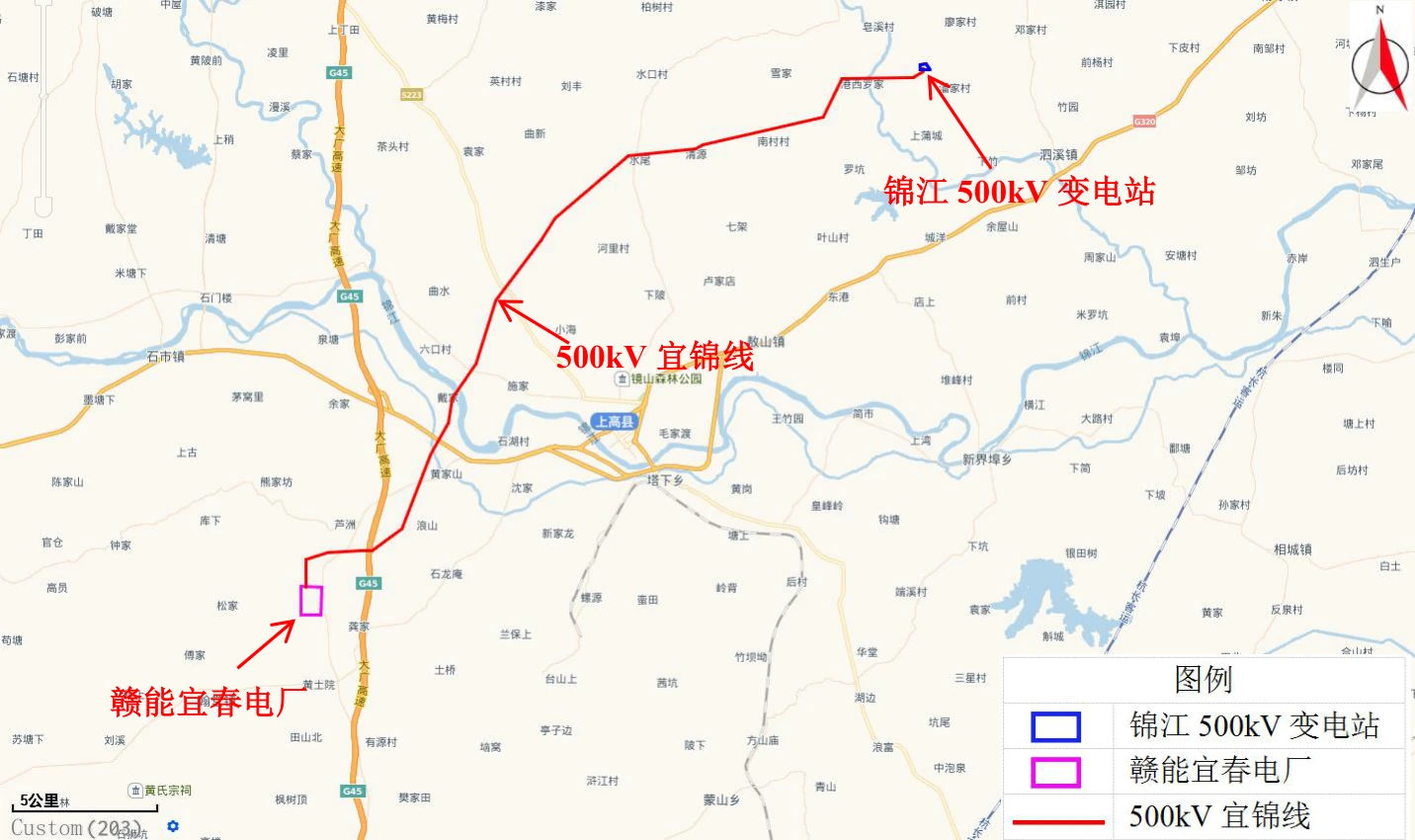

- Route endpoints
- Yichun Power Plant 500 kV switchyard to Jinjiang 500 kV substation
- Completed overhead line
- 30.863 km with 72 new towers
- Main route arrangement
- Approximately 30.75 km of single-circuit line
- Terminal arrangement
- 0.113 km on a double-circuit terminal structure with one circuit installed
- Substation work
- One 500 kV outgoing bay added within the existing Jinjiang station boundary
- River crossing

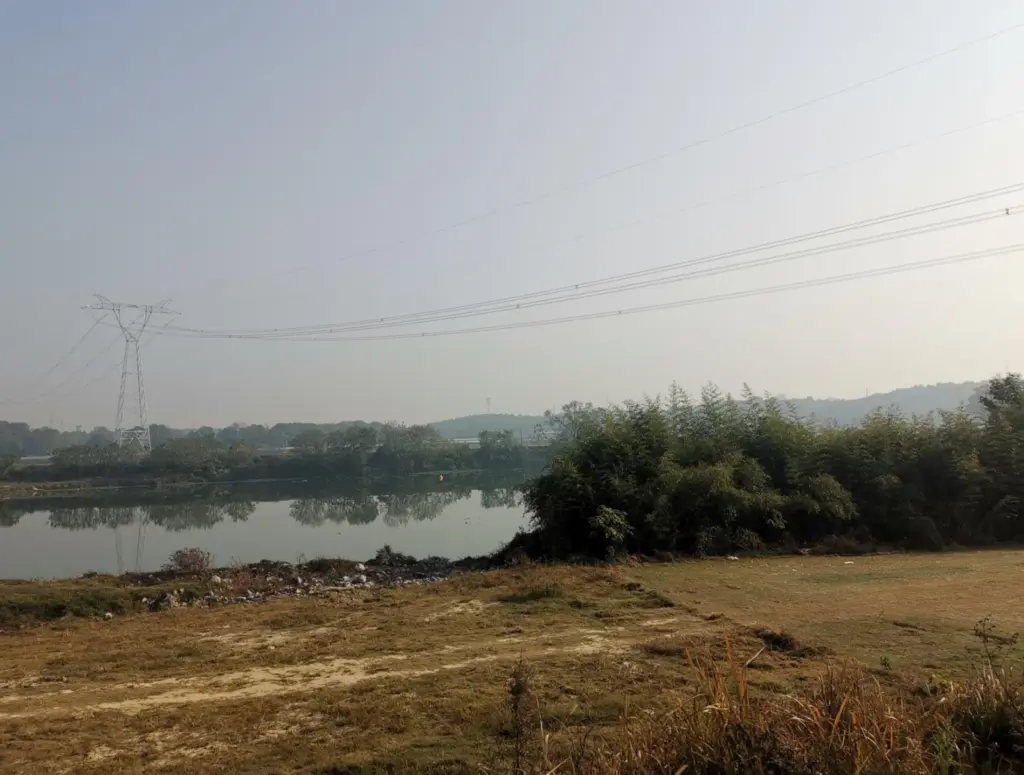

- Overhead crossing of the Jinjiang River
- Transmission-line crossing
- Yijin towers No. 53–54 pass beneath the ±800 kV Binjin line

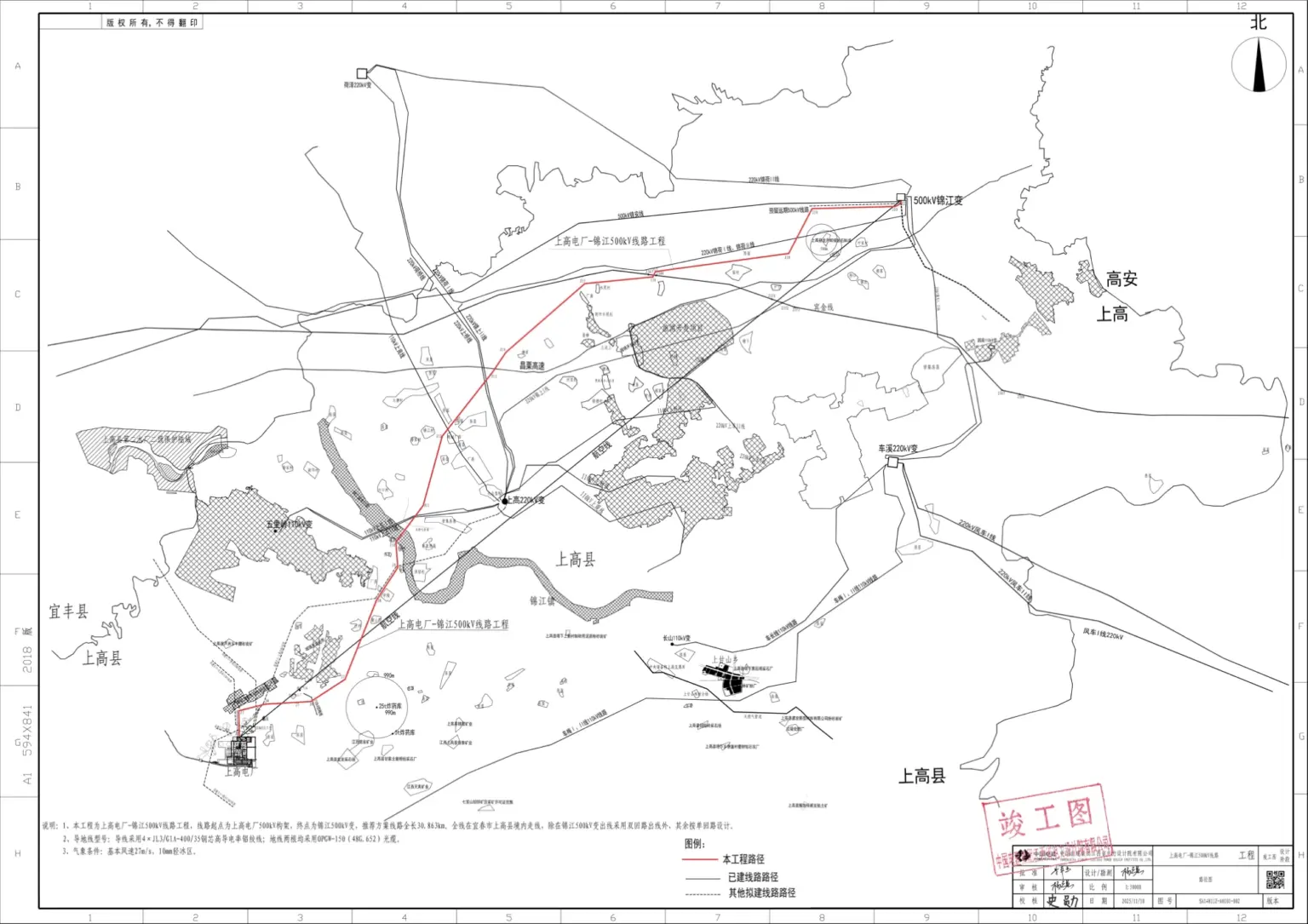

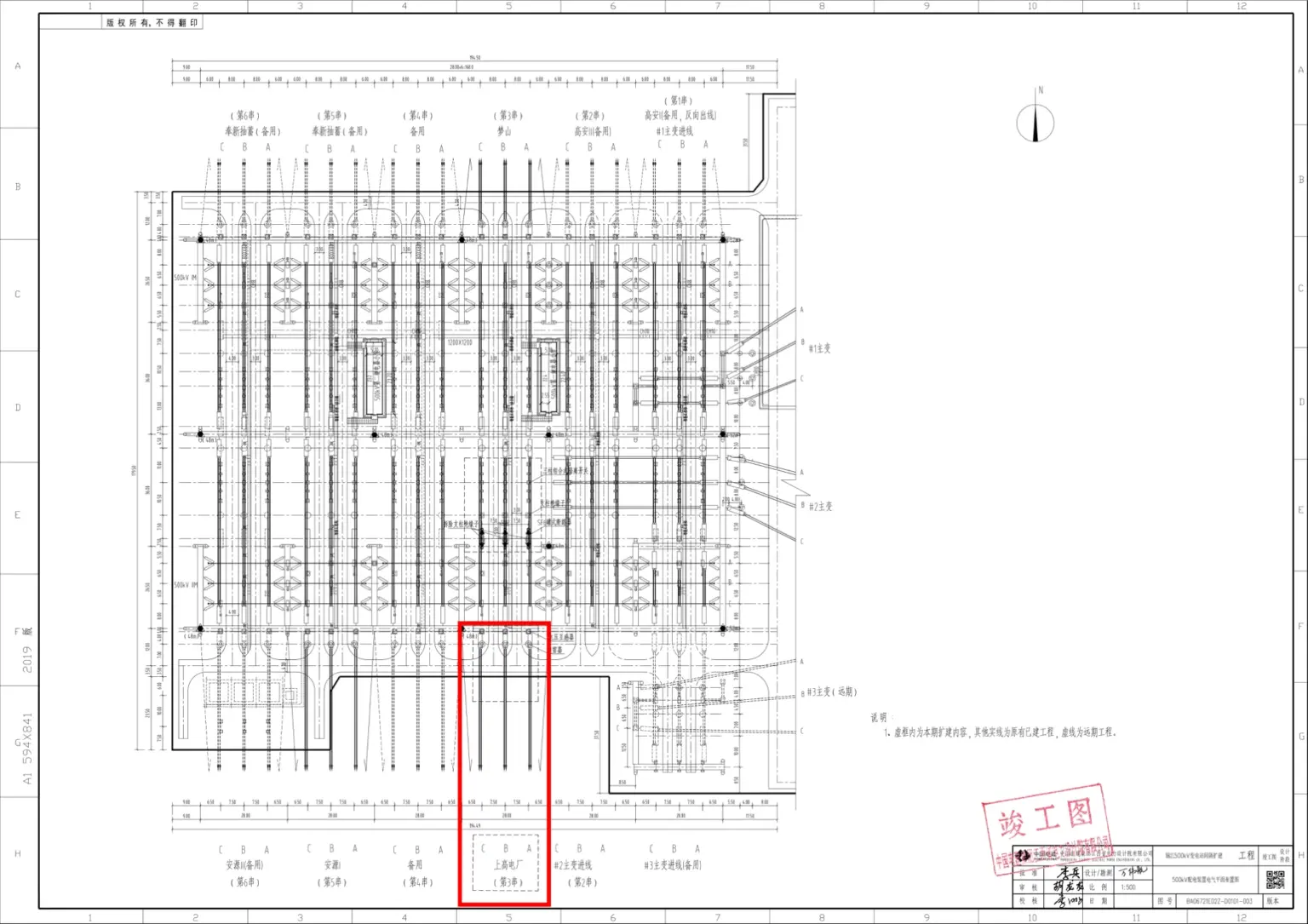

Electrical drawings
Review the electrical sheets and their equipment and route annotations.
Field imagery
Station equipment and line routes.

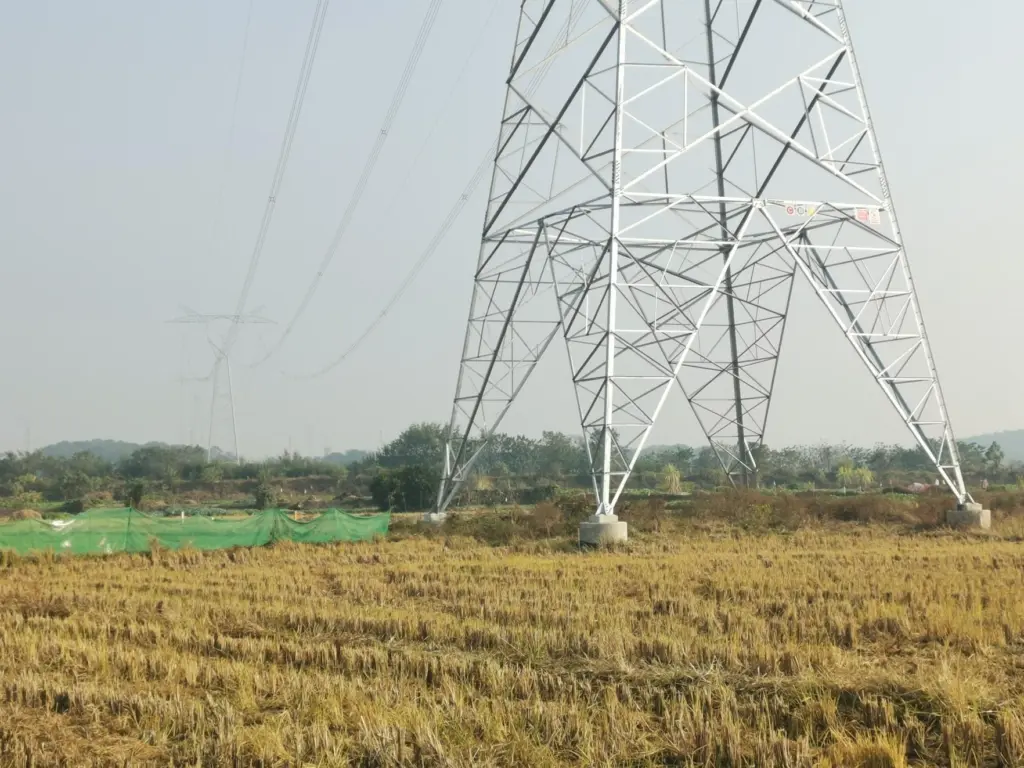

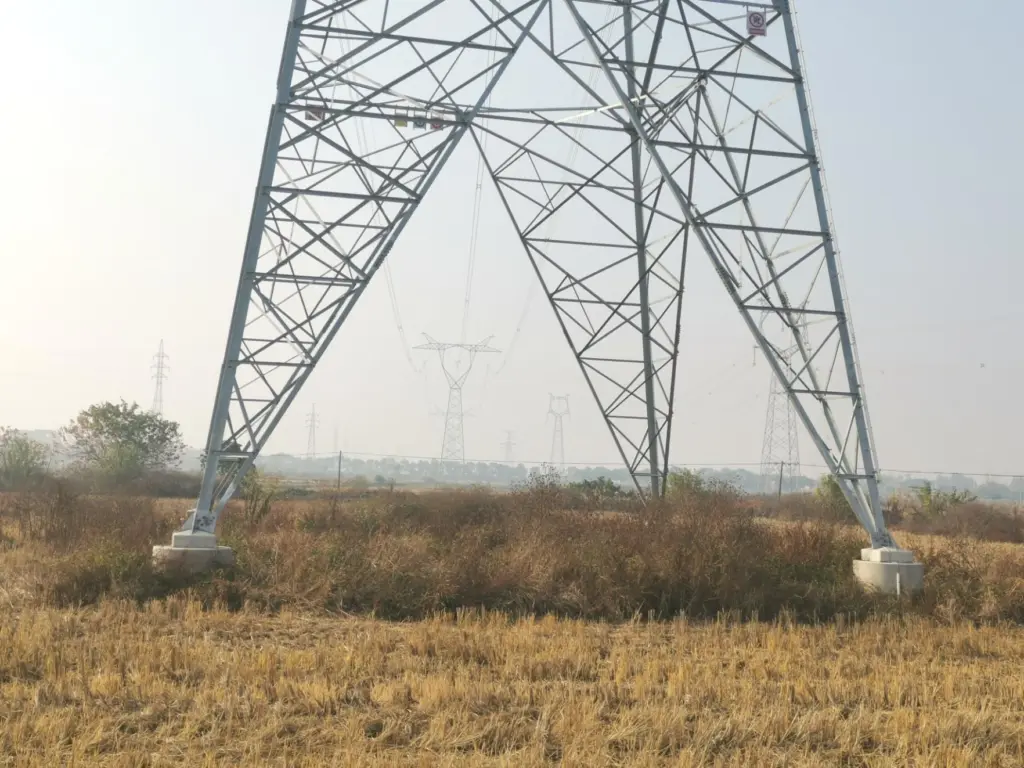

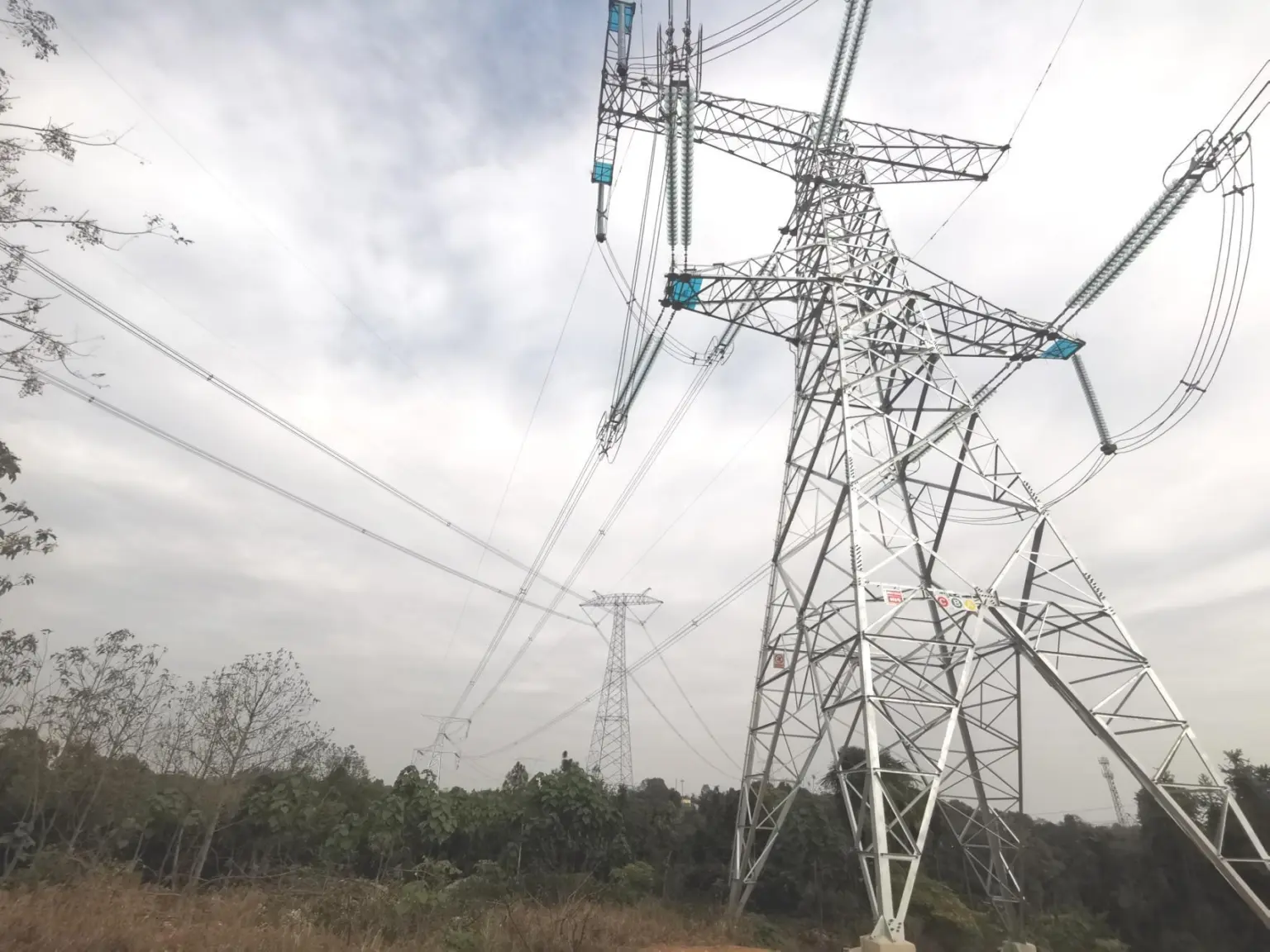

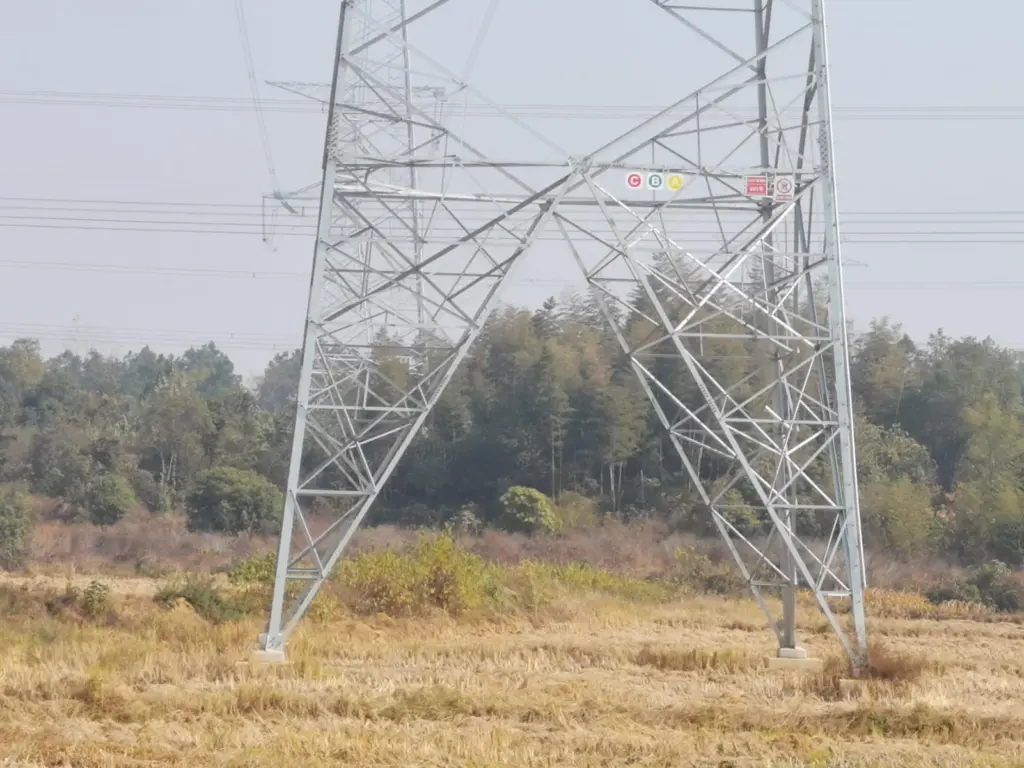

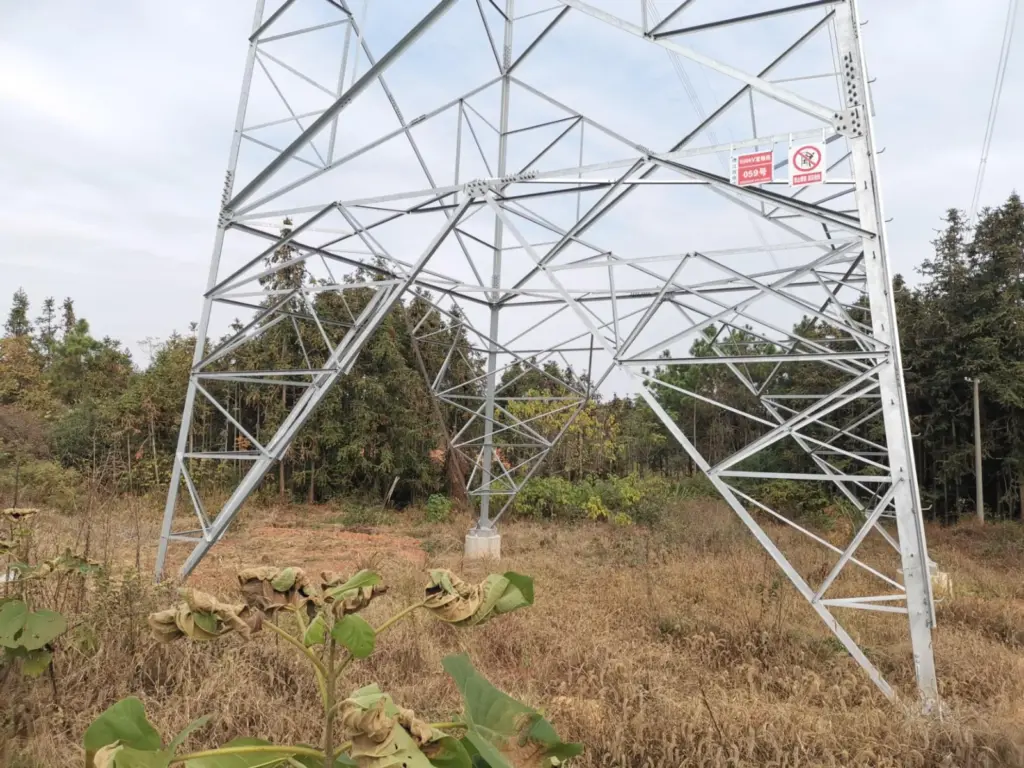

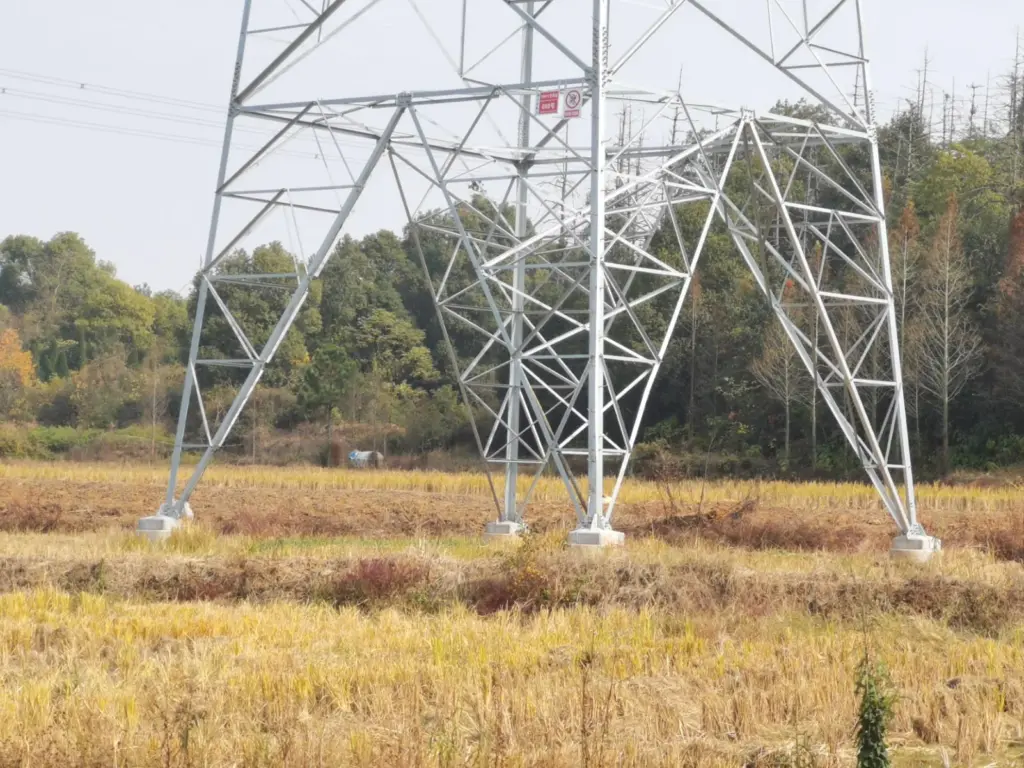

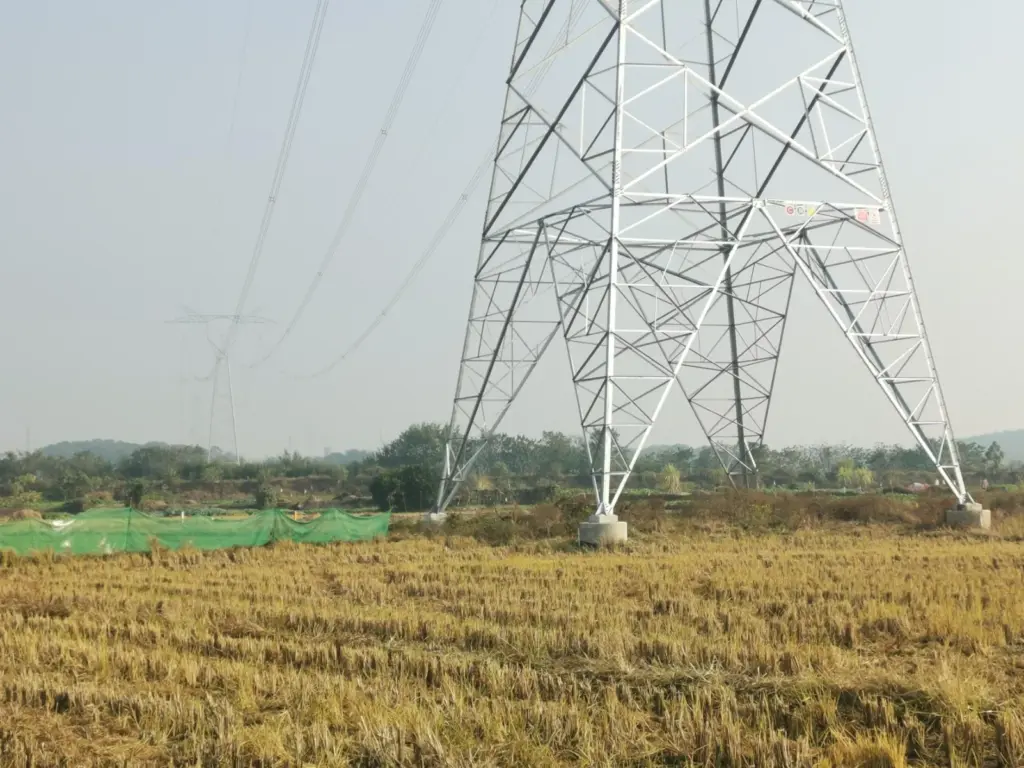

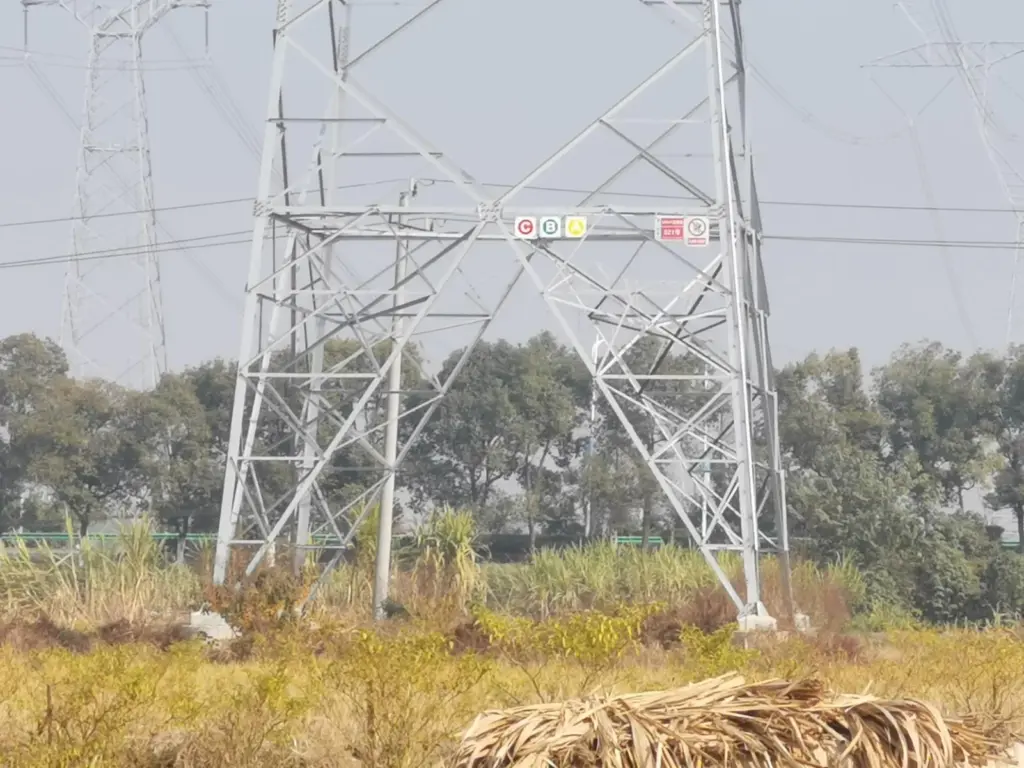

500 kV towers and foundations

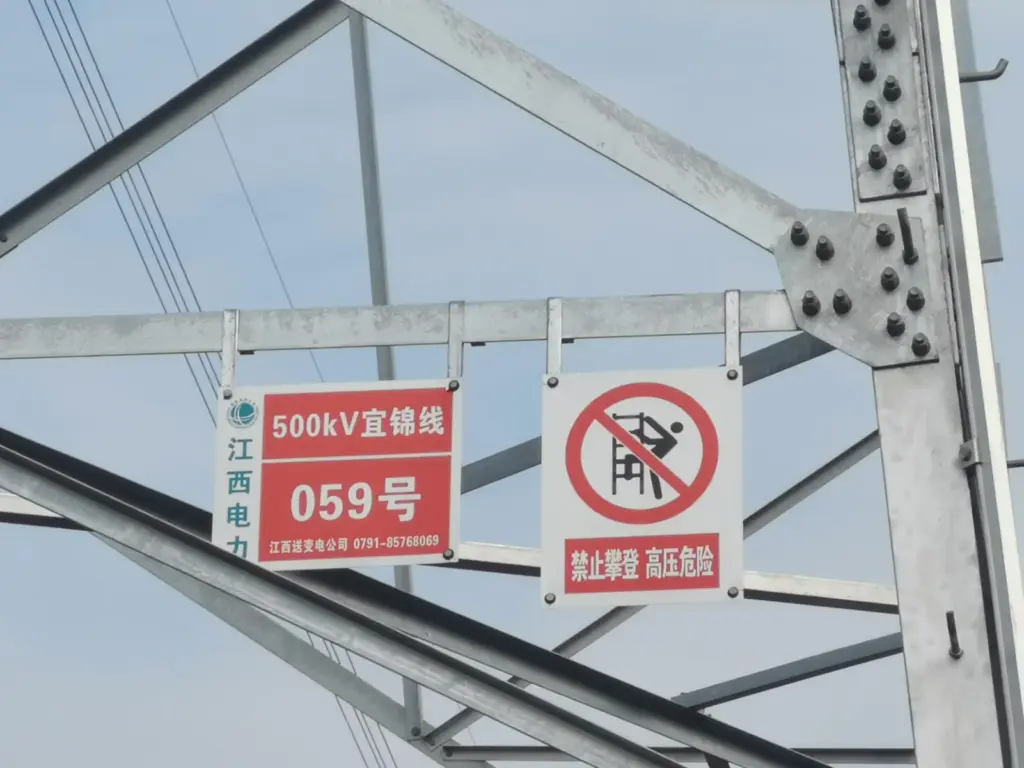

Different tower positions along the Yijin line, including foundation and steelwork details.

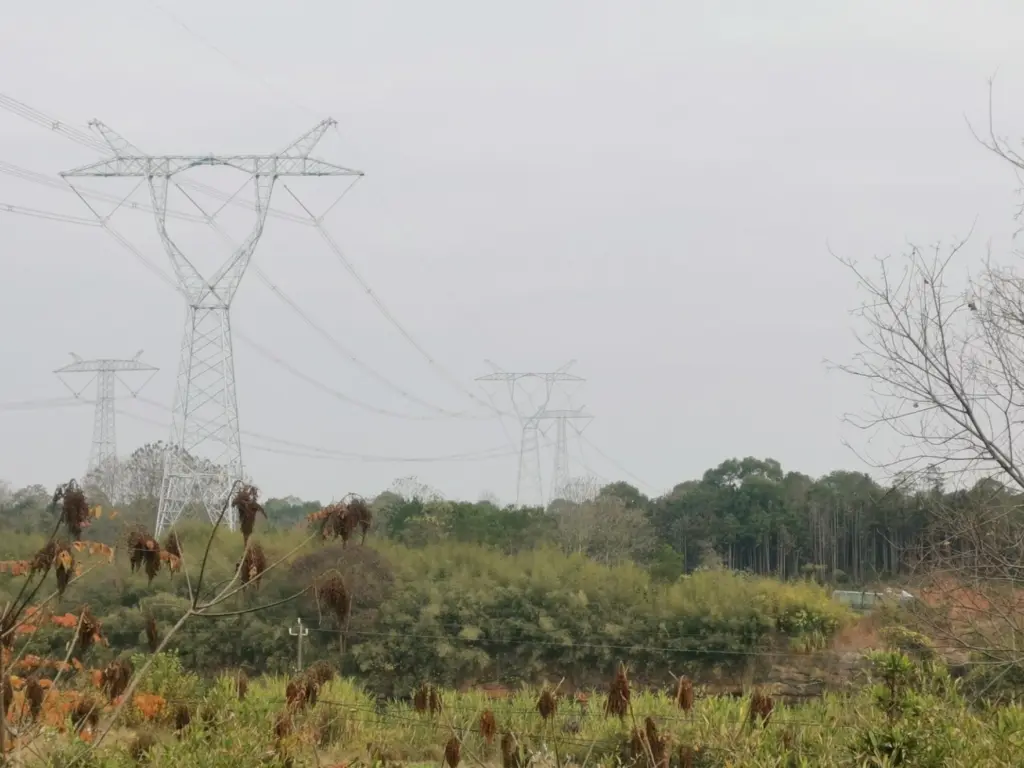

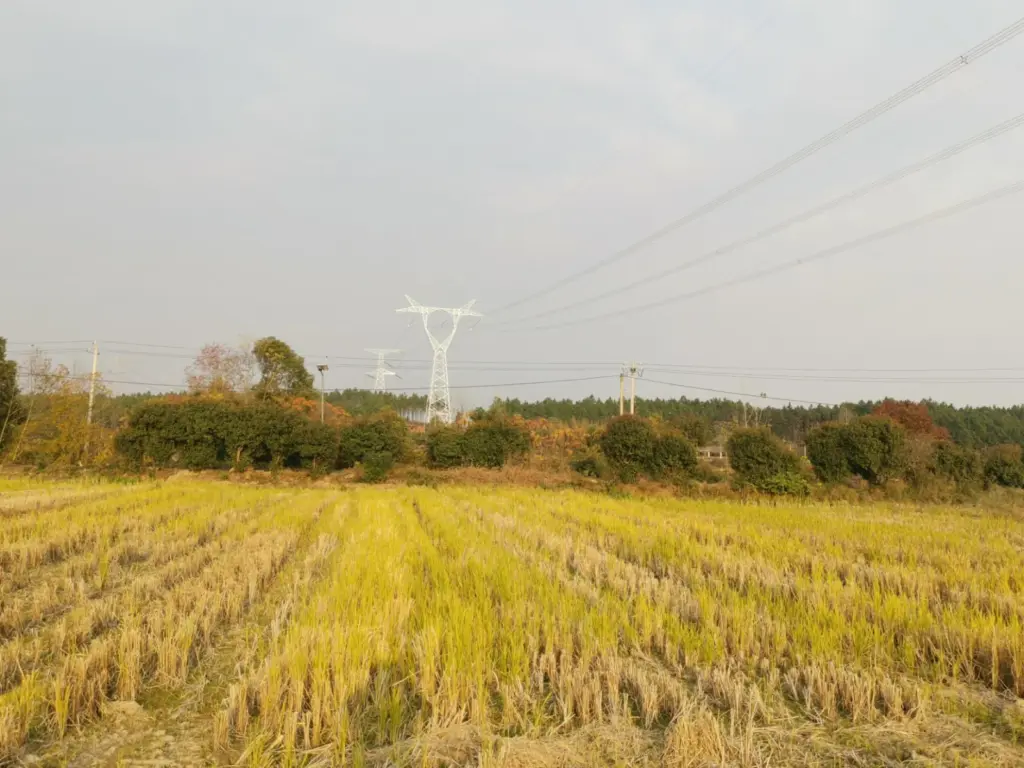

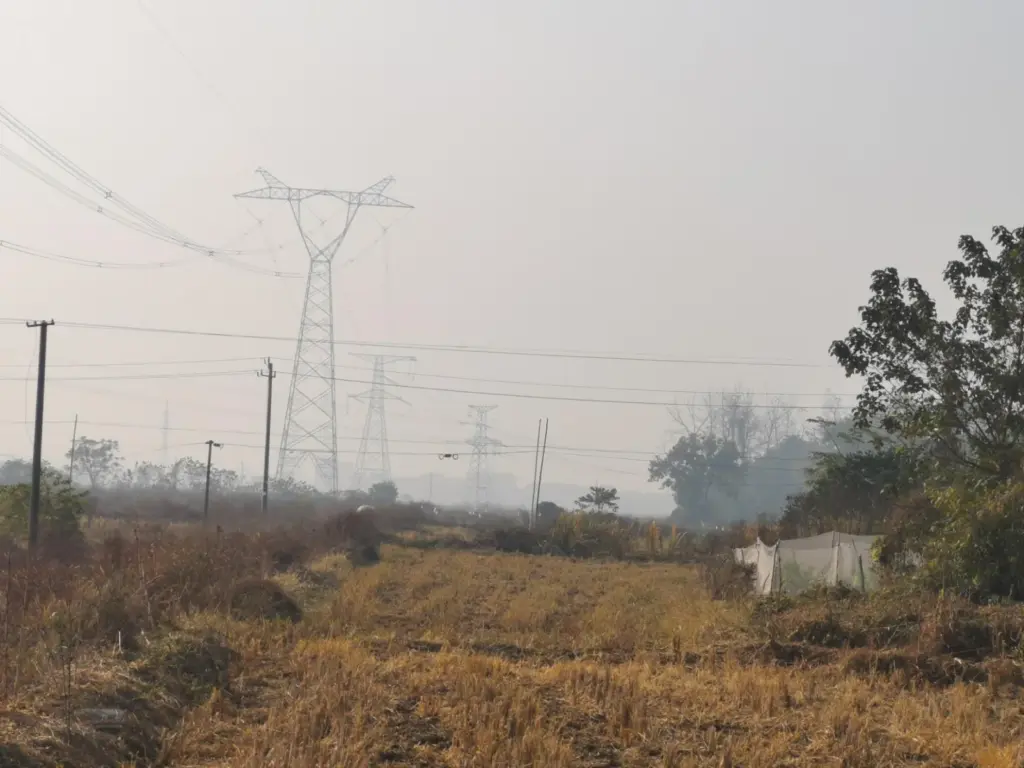

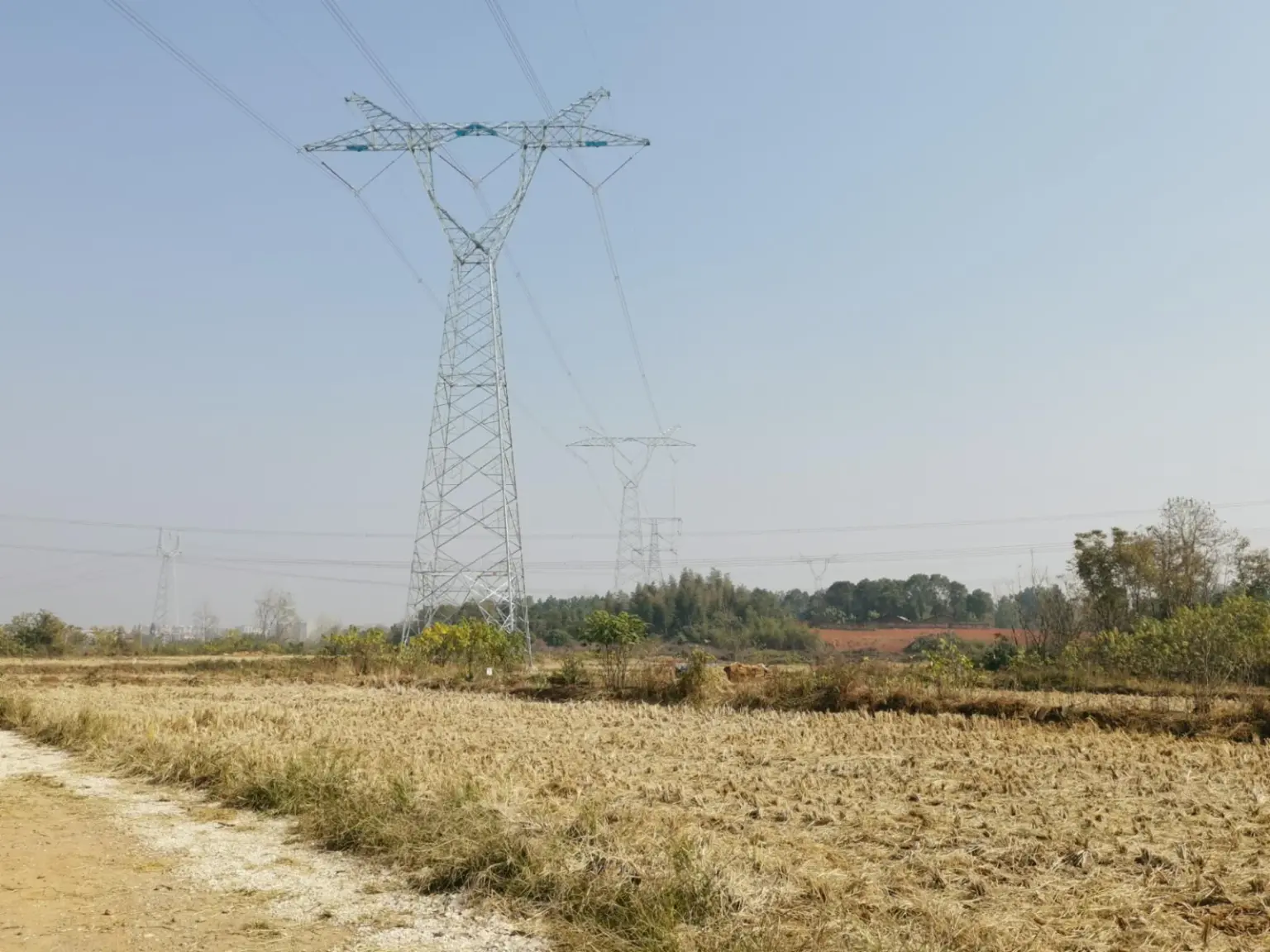

Line corridors and crossings
Overhead conductors across agricultural land, the Jinjiang River and the Binjin crossing.

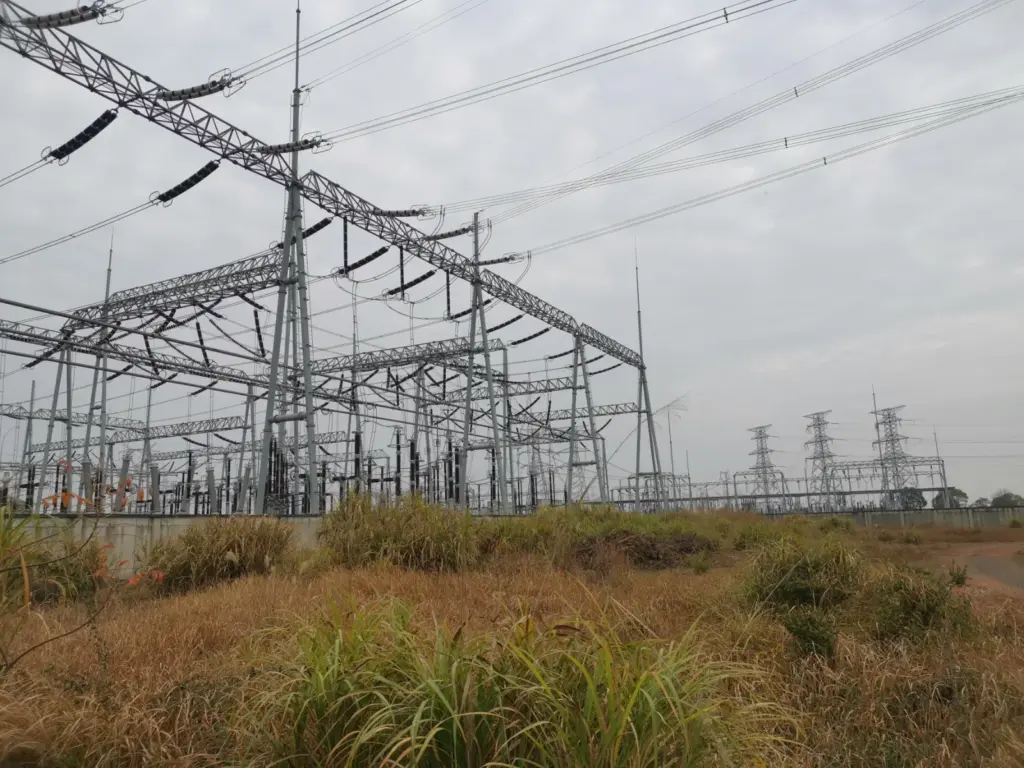

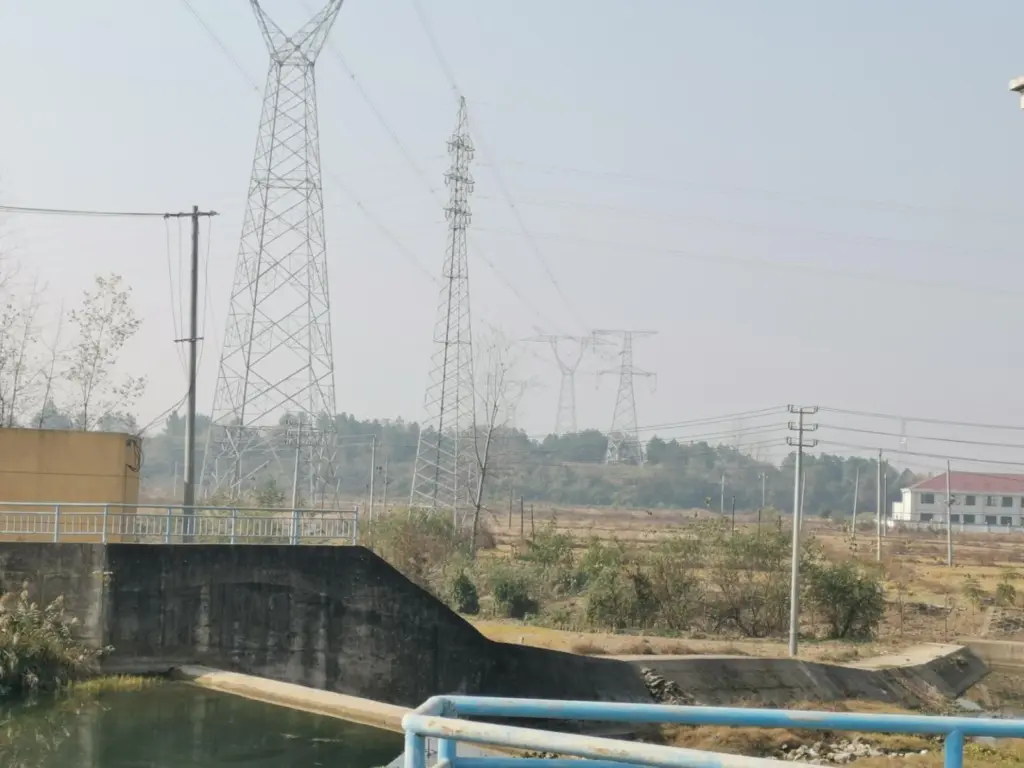

Jinjiang station connection
The approach corridor and switchyard connection at the receiving end.
