China / Wuzhong District, Suzhou, Jiangsu
Suzhou Yuexi 500 kV Substation & Line Connections
500 / 220 kVSUNENG supplied selected electrical products and components for the Suzhou Yuexi 500 kV substation and line-connection project.
Project context.
Yuexi 500 kV substation is located in Wuzhong District, Suzhou. The project installs two 1,000 MVA indoor three-phase transformers and indoor gas-insulated switchgear for the 500 kV and 220 kV systems.
The Mudu-Chefang 500 kV lines are looped into Yuexi through 4.971 km of new connections with 13 towers. The route combines double-circuit and mixed-voltage four-circuit tower structures; the lower 220 kV positions on the mixed-voltage towers were not strung in this phase.
Electrical scope
- Station configuration

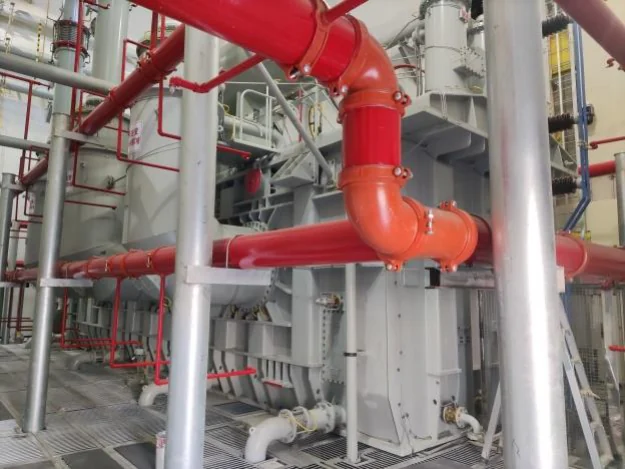

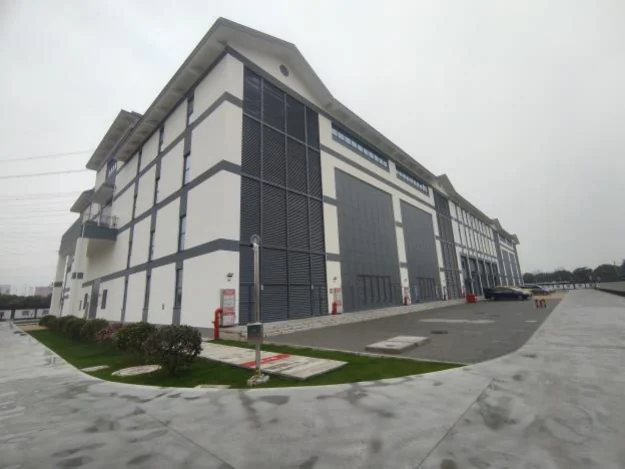

- Indoor three-phase main transformers and indoor GIS.
- Outgoing circuits
- Four 500 kV circuits and seven 220 kV circuits.
- Reactive compensation

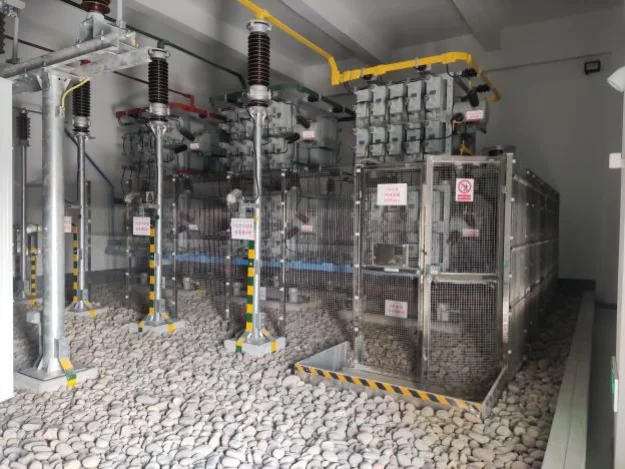

- Two 60 Mvar capacitor banks on the low-voltage side of each main transformer.
- Loop-in line lengths
- Eastern section: 2.706 km; western section: 2.265 km.
- Line conductors
- Four-conductor bundles of JL3/G1A-630/45.
- Mixed-voltage tower provision
- The lower 220 kV circuit positions were left unstrung in this phase.

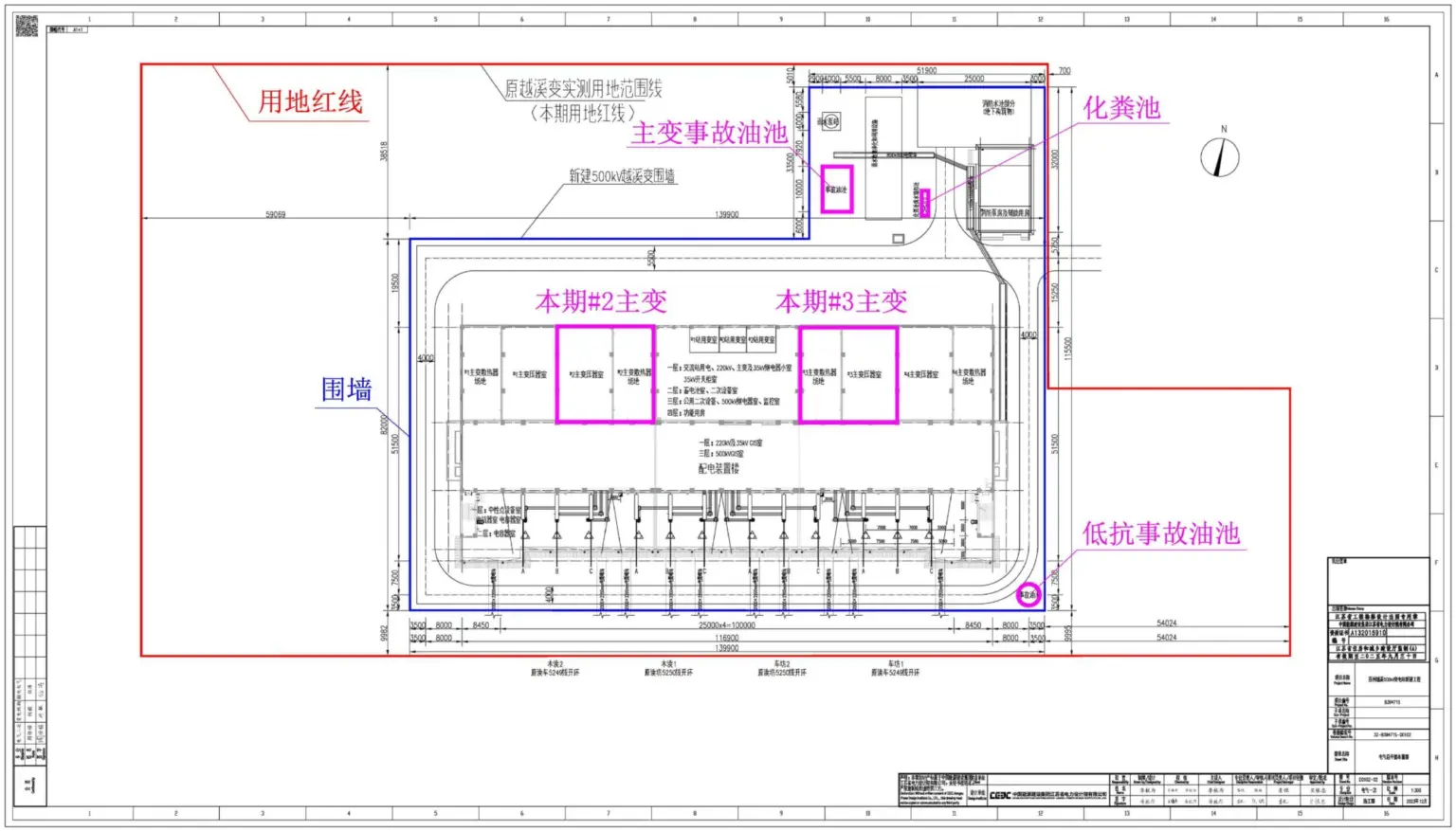

Electrical drawings
Review the electrical sheets and their equipment and route annotations.
Field imagery
Station equipment and line routes.

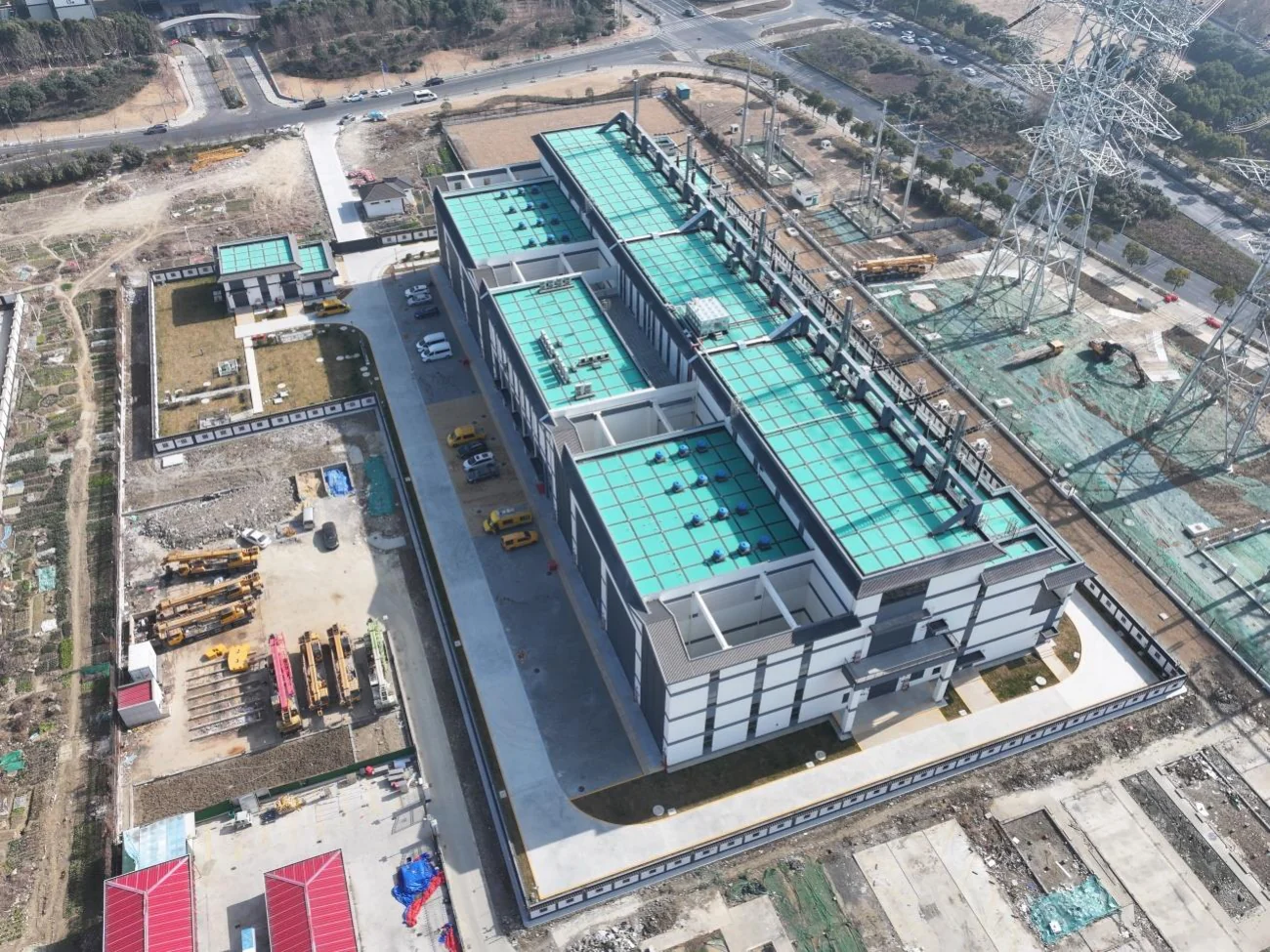

Yuexi substation equipment

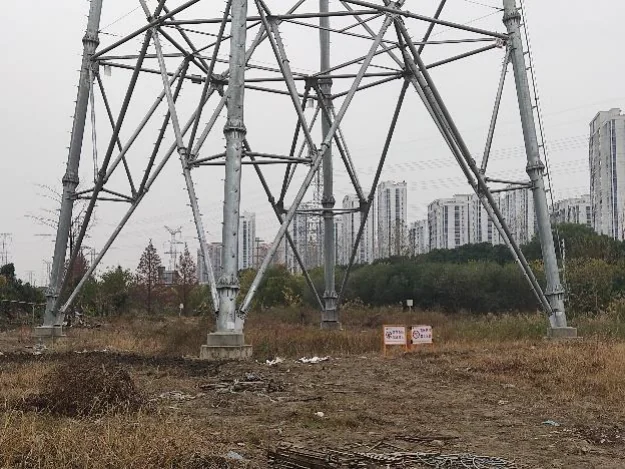

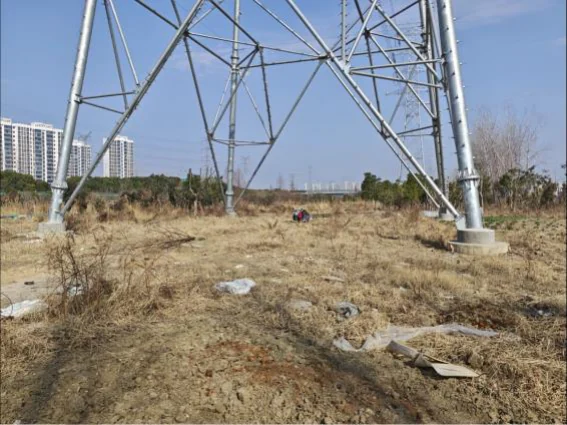

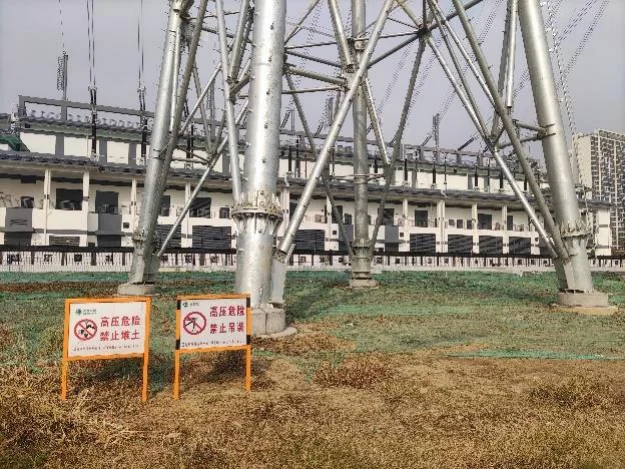

500 kV loop-in connections
