Tianyu 110 kV Outgoing Transmission Works

110 kV

Outgoing voltage110 kV

Towers and poles53

Yuqing I / II route5.77 km

Yufu route5.877 km

Selected SUNENG supply scope

SUNENG supplied selected electrical products and components for the Tianyu 110 kV outgoing works.

Project context.

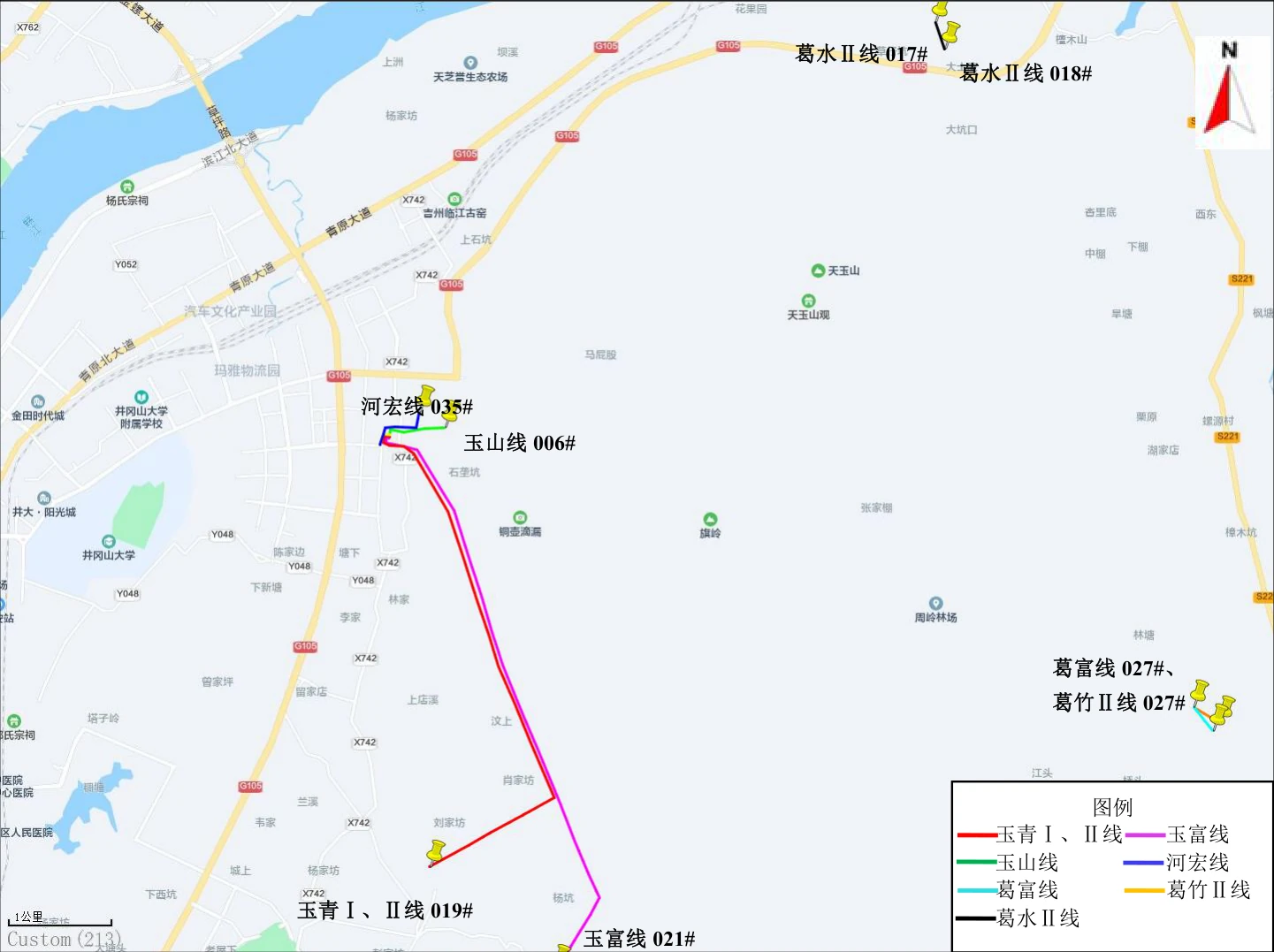

The Tianyu project connects the 110 kV outgoing network to Tianyu 220 kV substation in Ji’an, Jiangxi. This phase covers the Yuqing I and II, Yufu, Yudong and Yushan outgoing works, together with local reconnections on the Hehong, Geshui II, Gezhu II and Gefu lines.

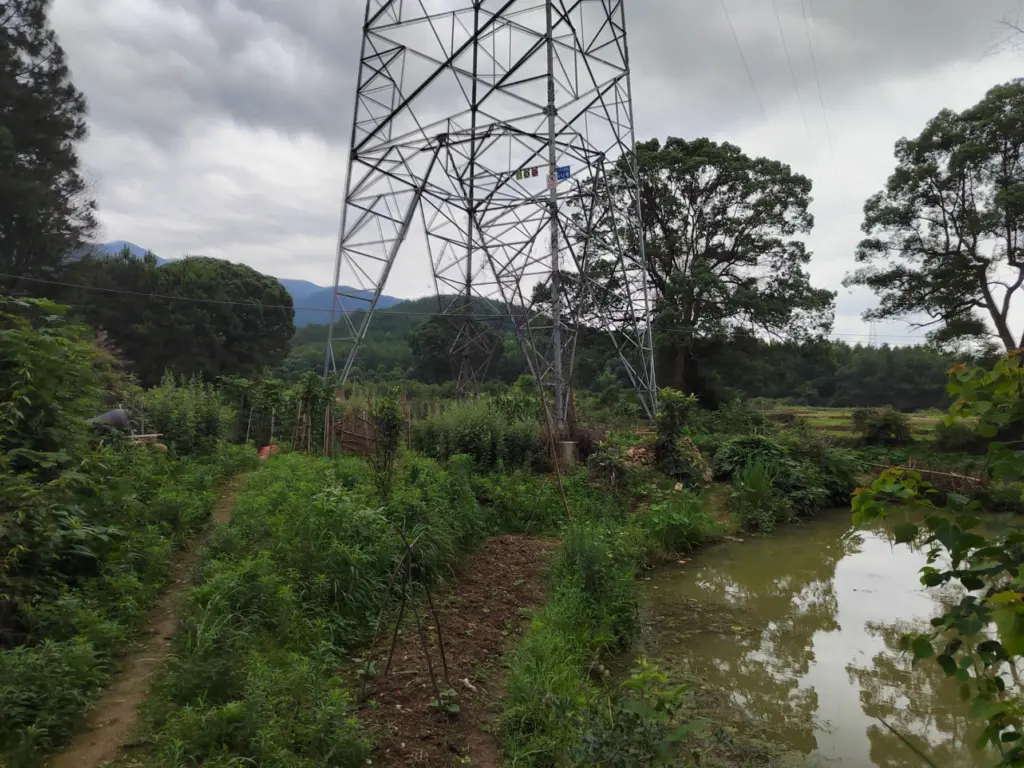

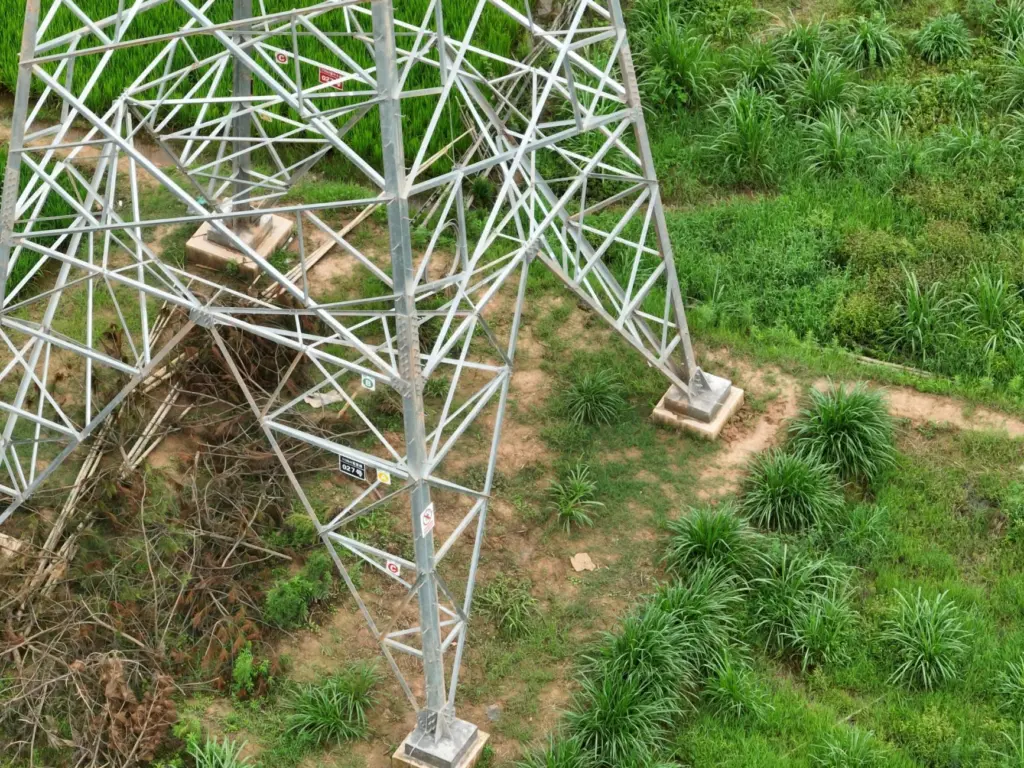

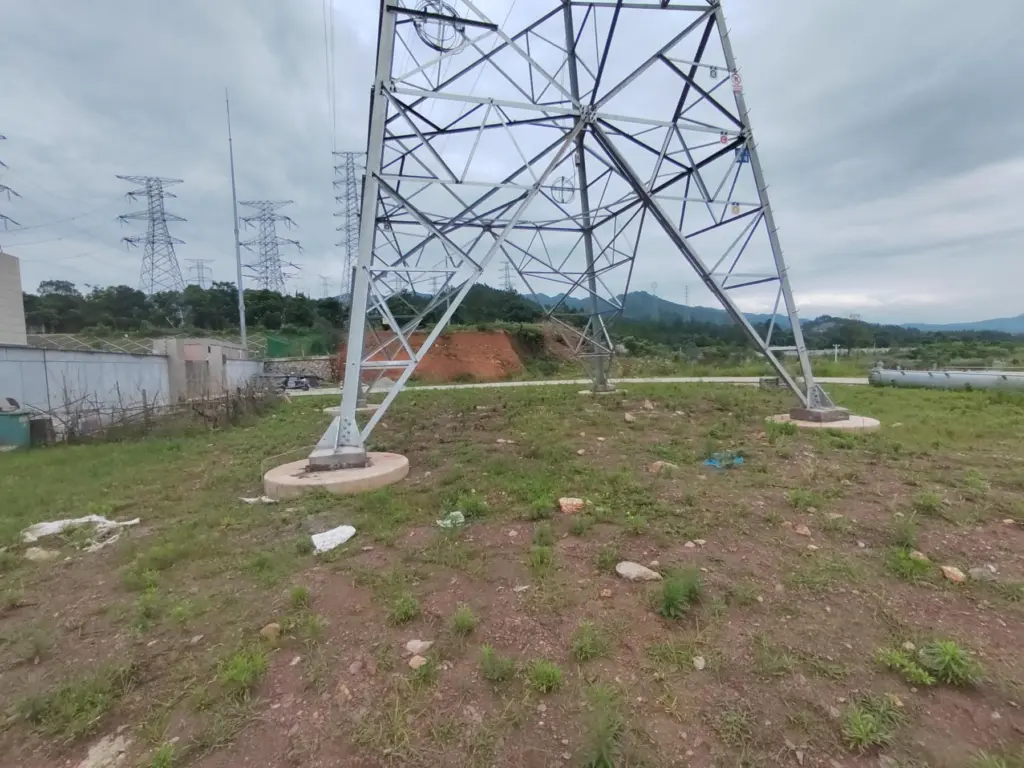

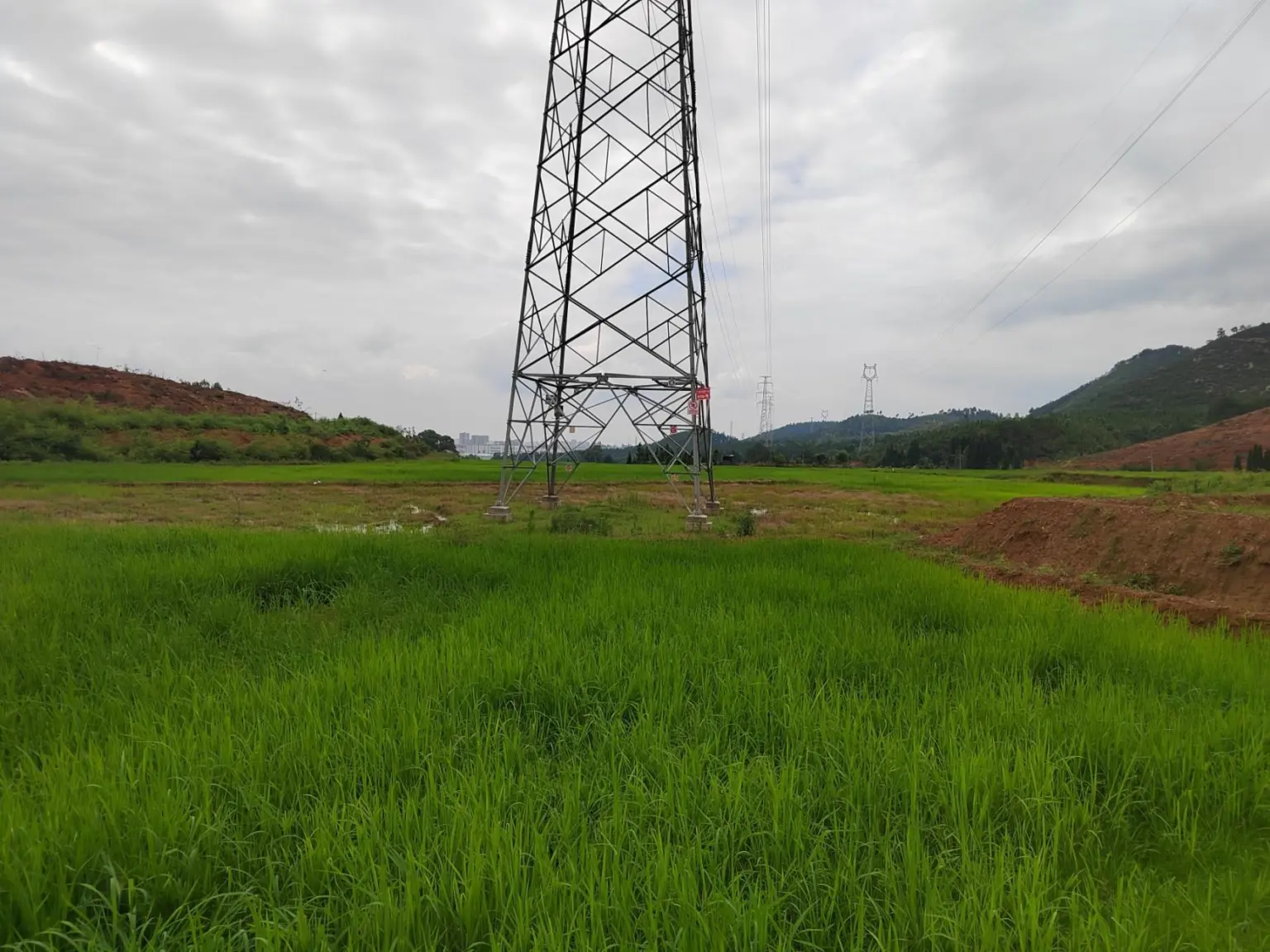

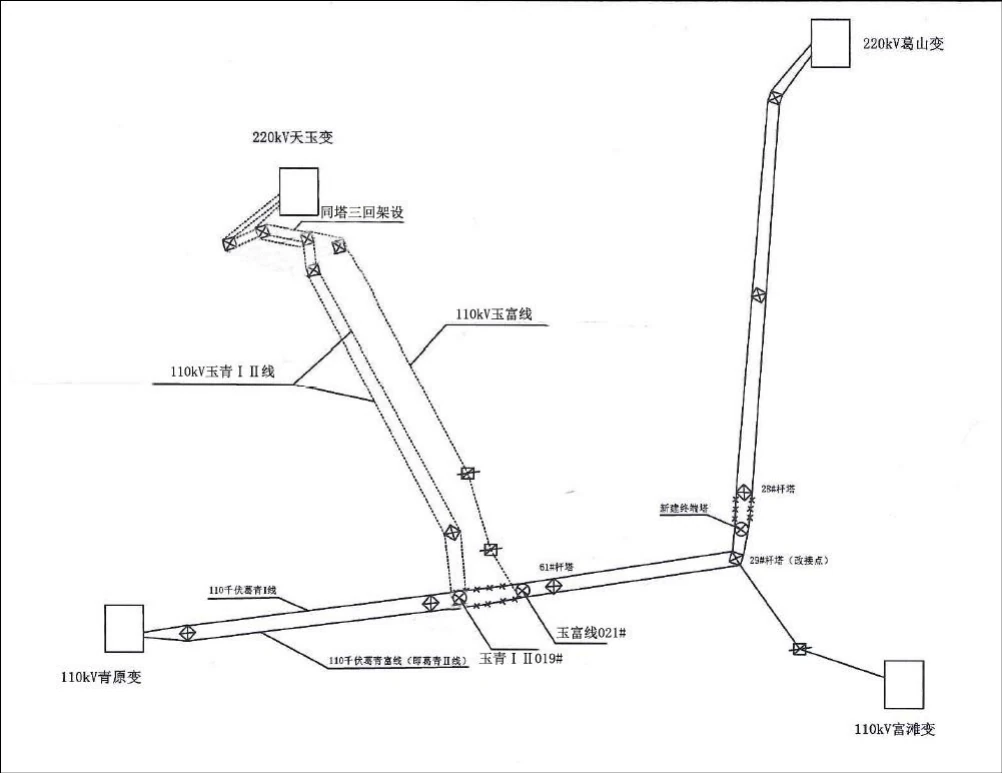

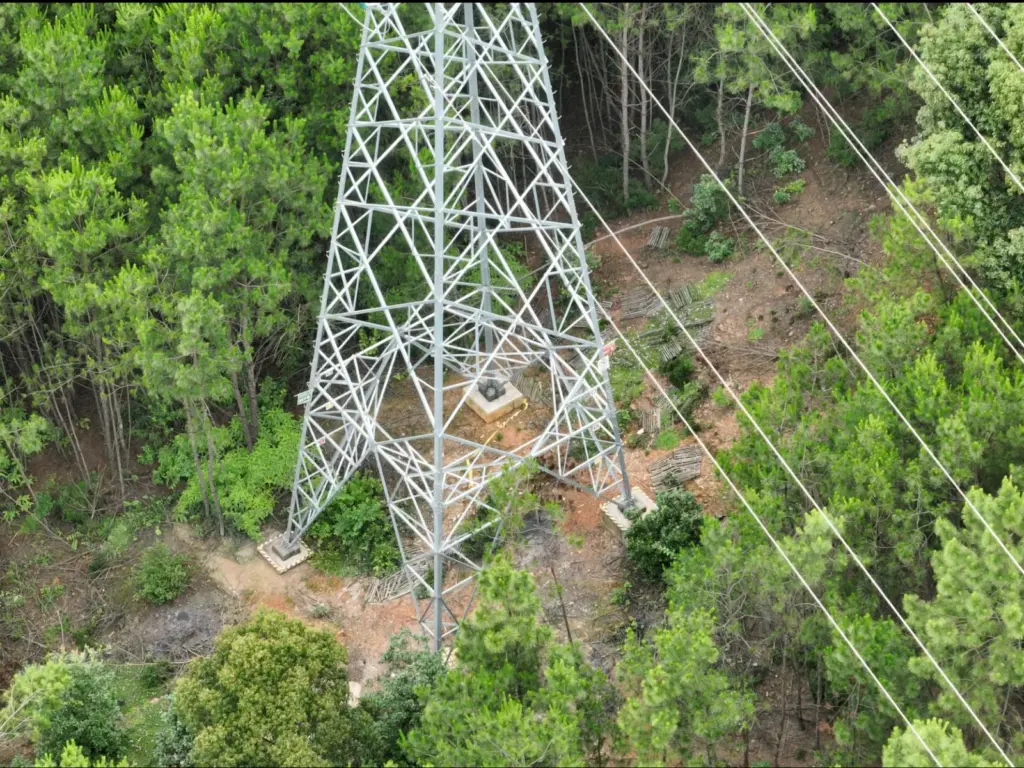

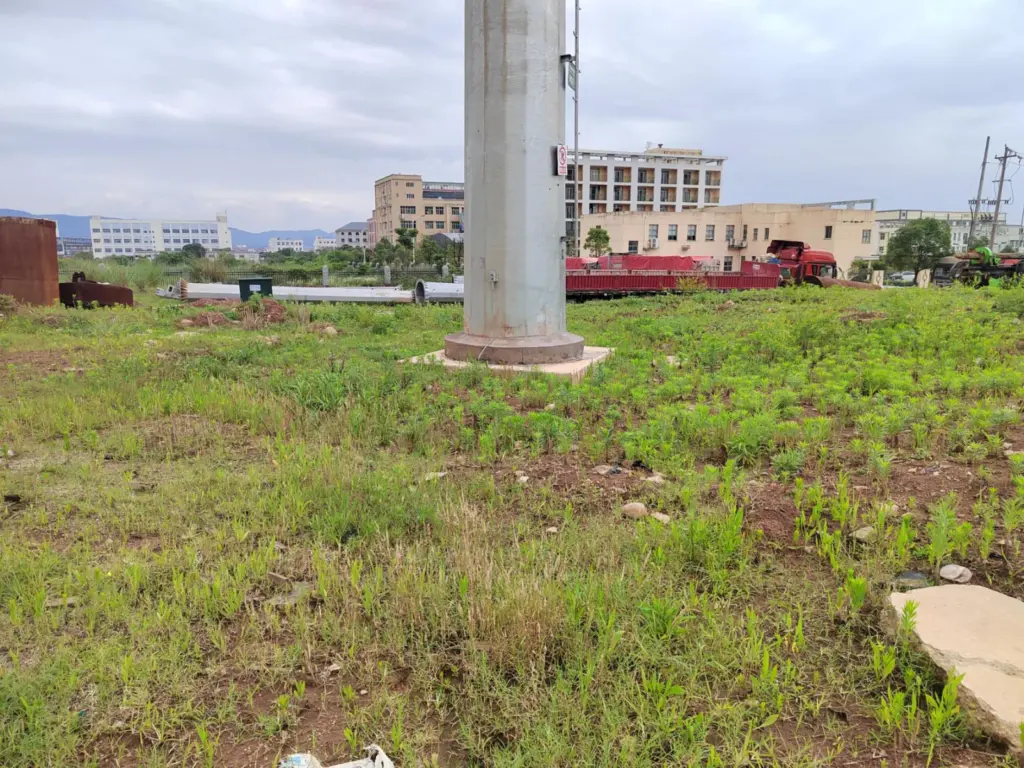

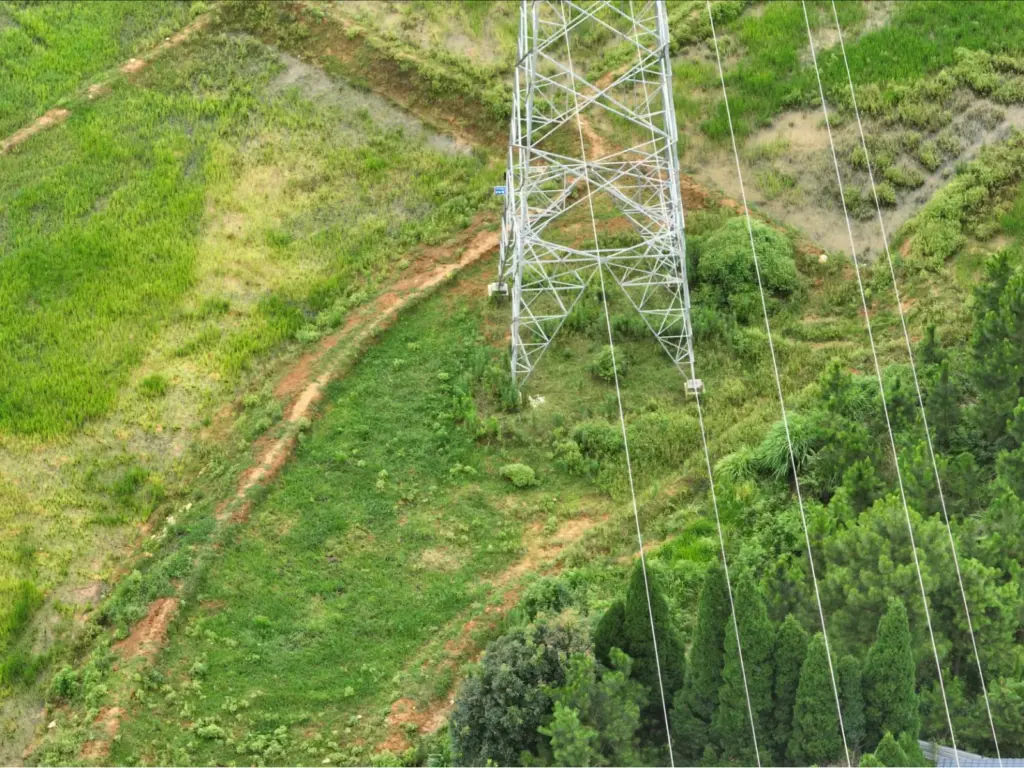

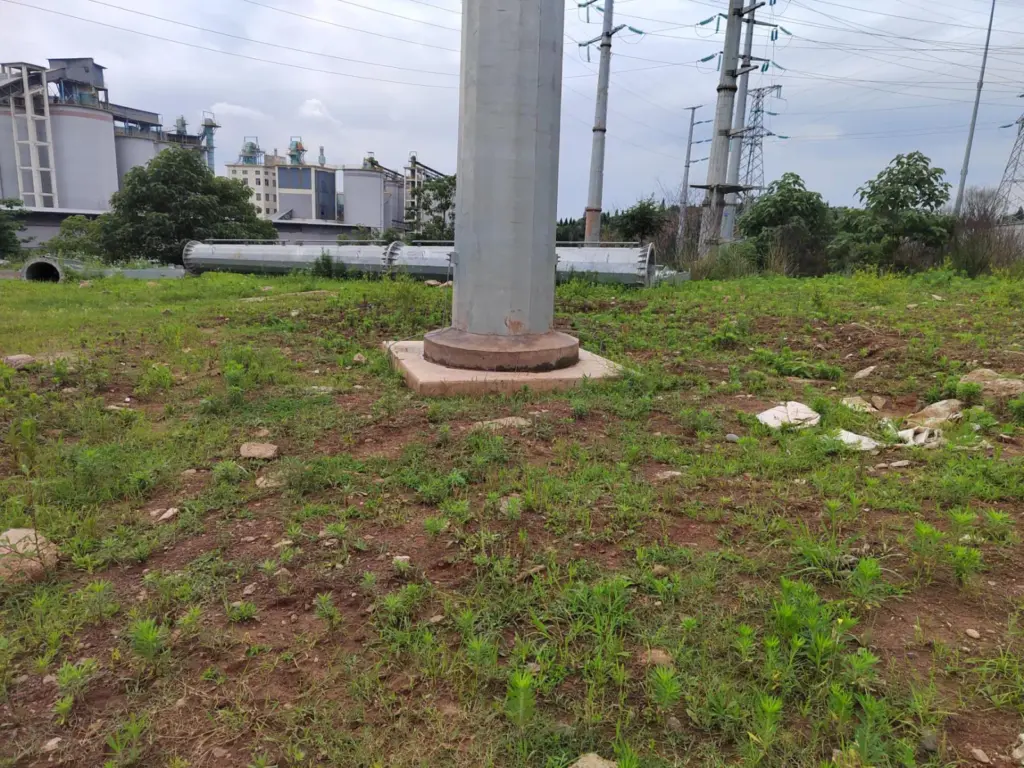

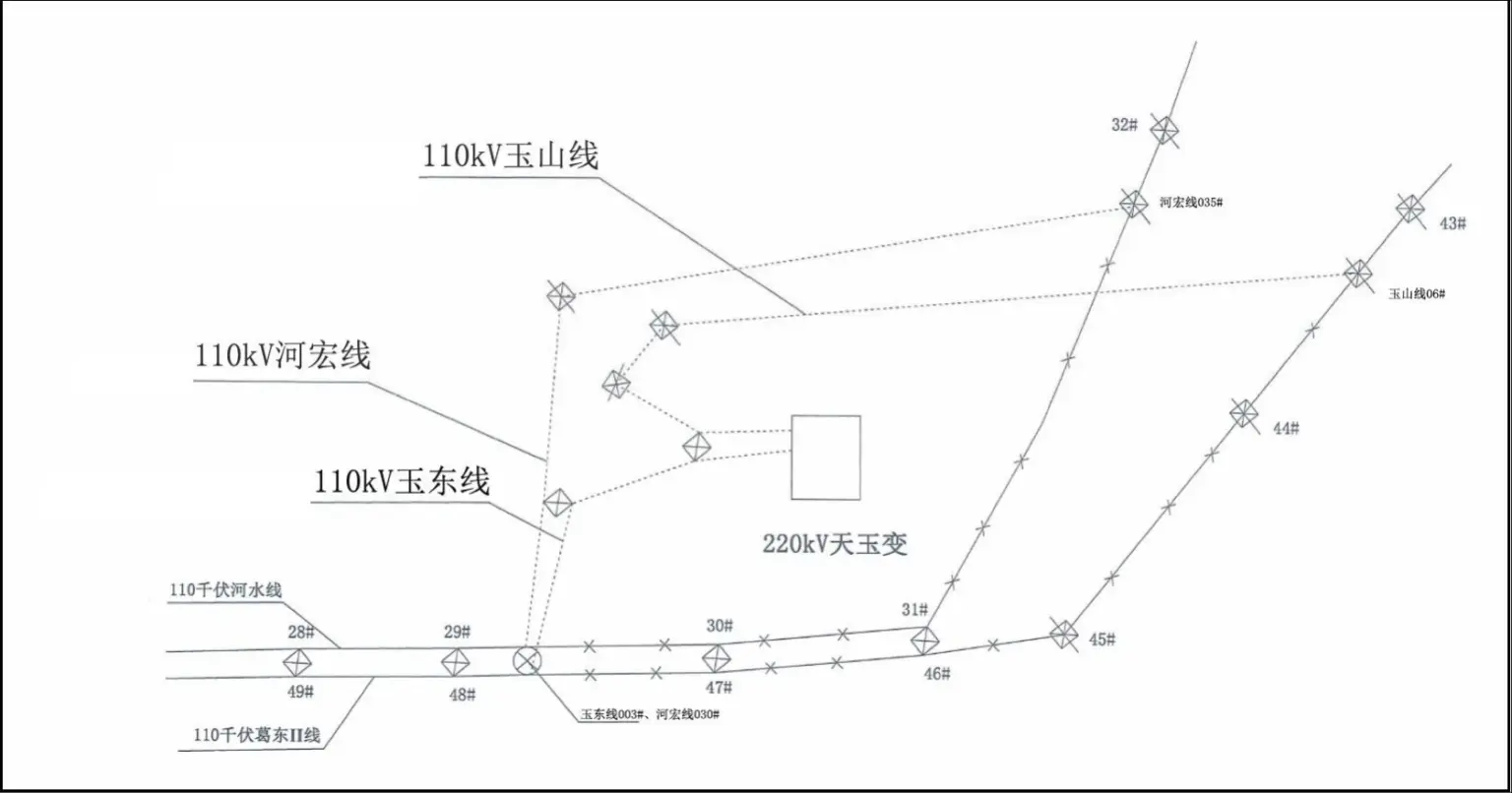

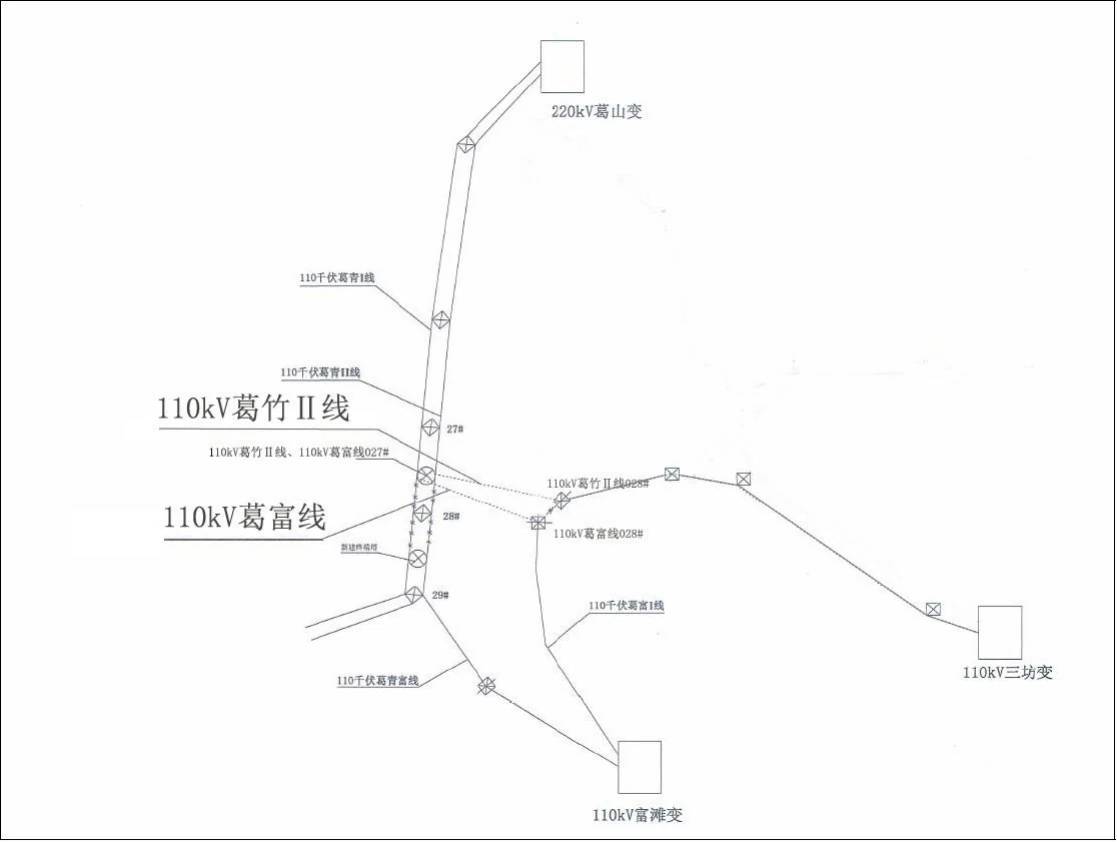

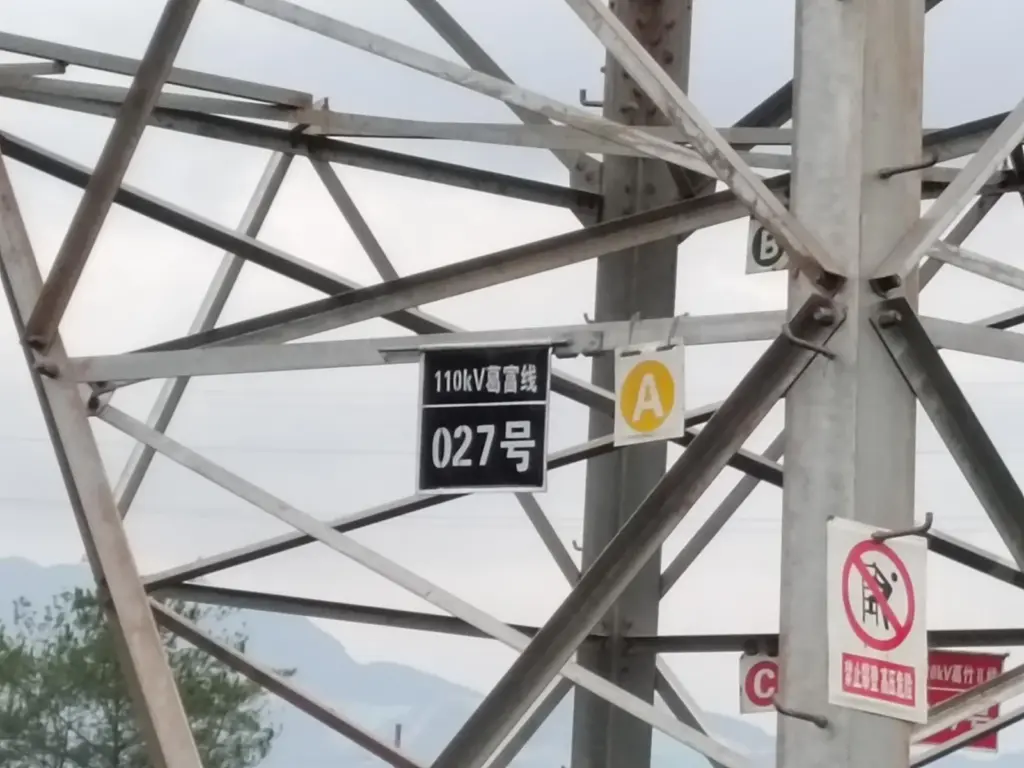

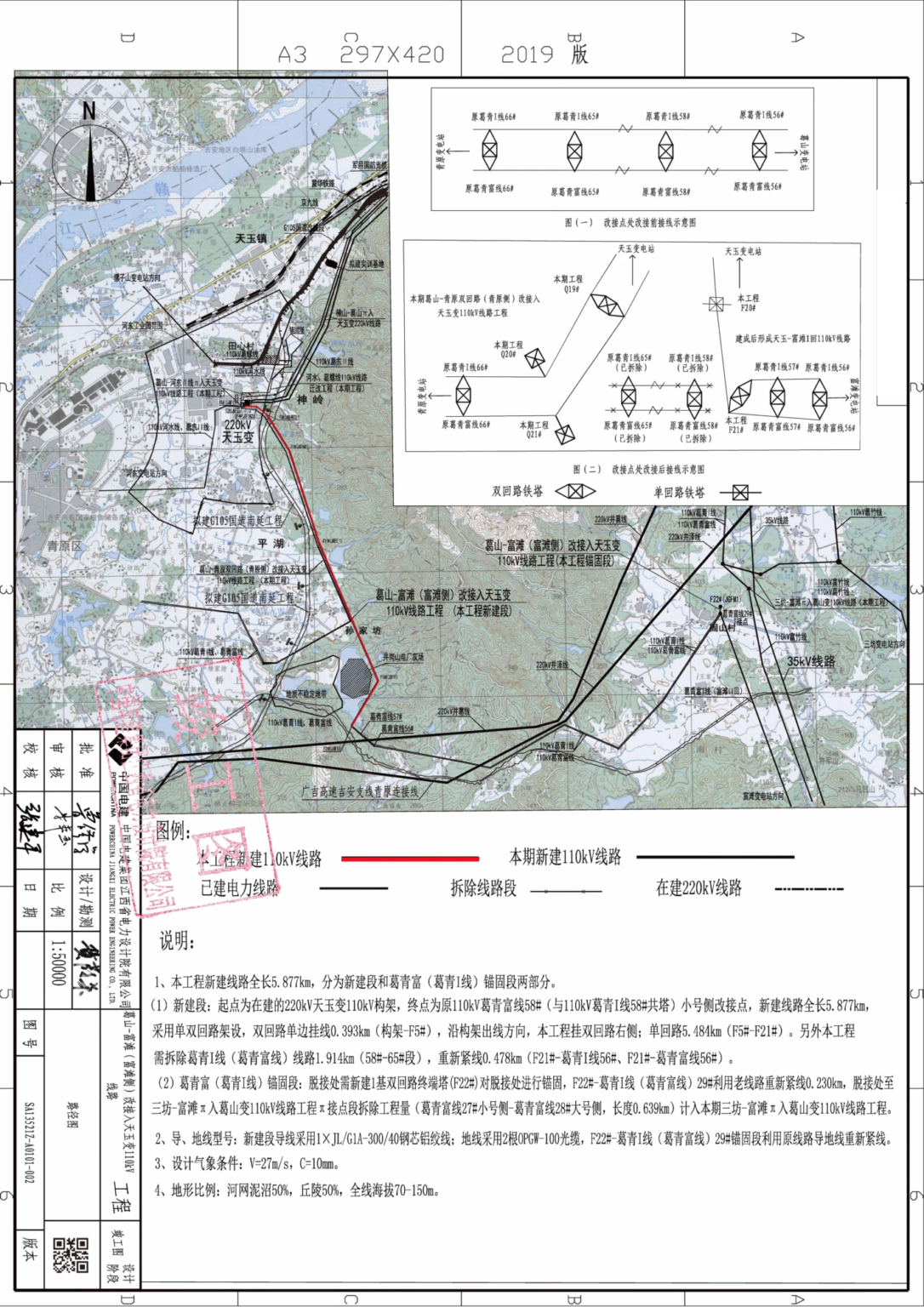

The completed works include 53 towers and poles. Single-circuit, double-circuit and shared three-circuit sections respond to the different route and connection requirements. The network diagrams explain the connections; the field photographs show lattice towers, steel poles, foundations and conductor arrangements along the routes.

Electrical scope

Associated station: Tianyu 220 kV substation; this project page covers the 110 kV outgoing works
Yuqing I and II: 5.77 km route, including 0.283 km shared with the Yufu circuit and 5.487 km of double-circuit construction

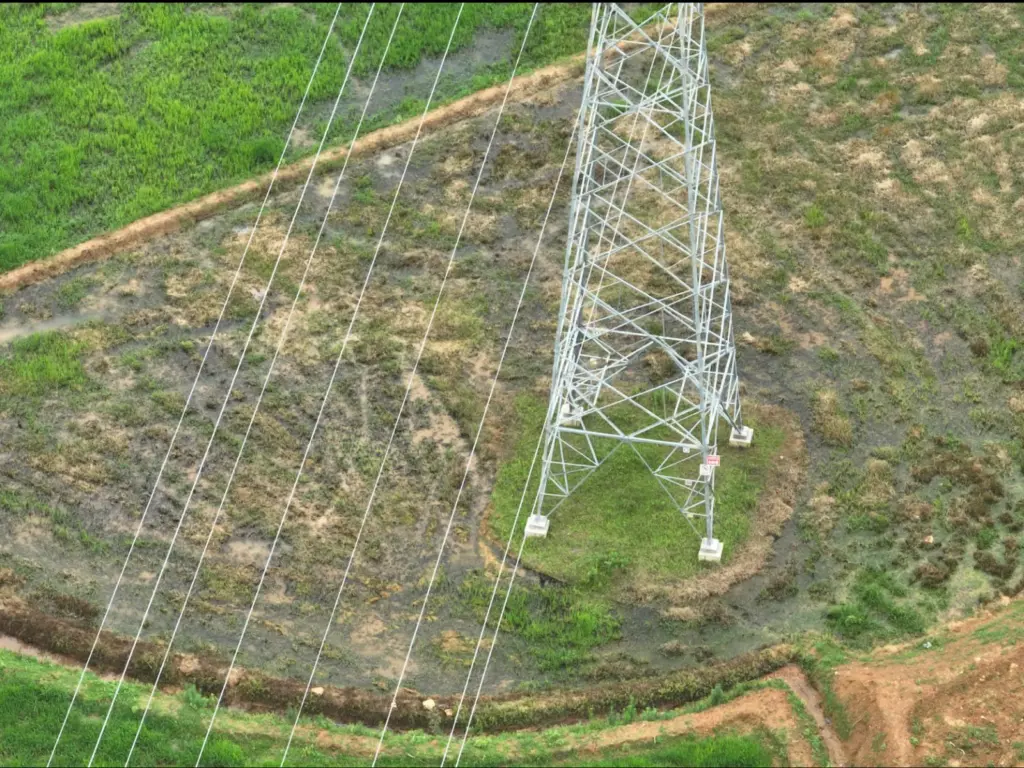

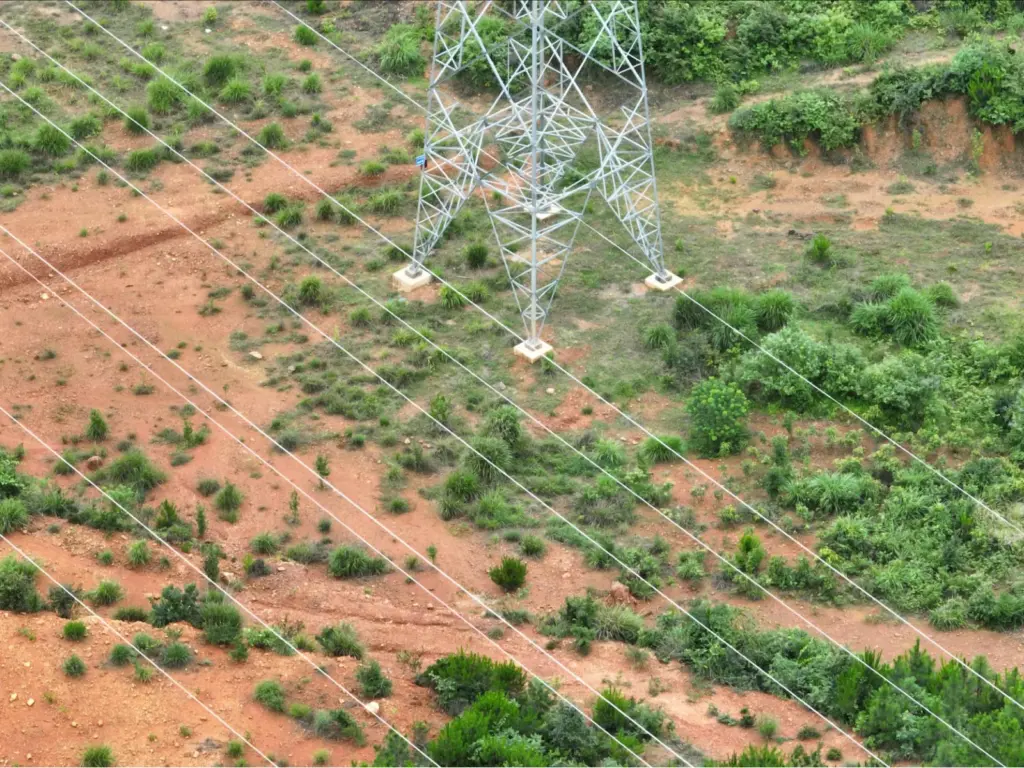

Yufu: 5.877 km route, including shared and single-circuit sections
Yudong and Yushan: 0.160 km and 0.624 km of outgoing-line works, respectively
Hehong reconnection: 0.603 km, including 0.106 km shared with the Yudong line

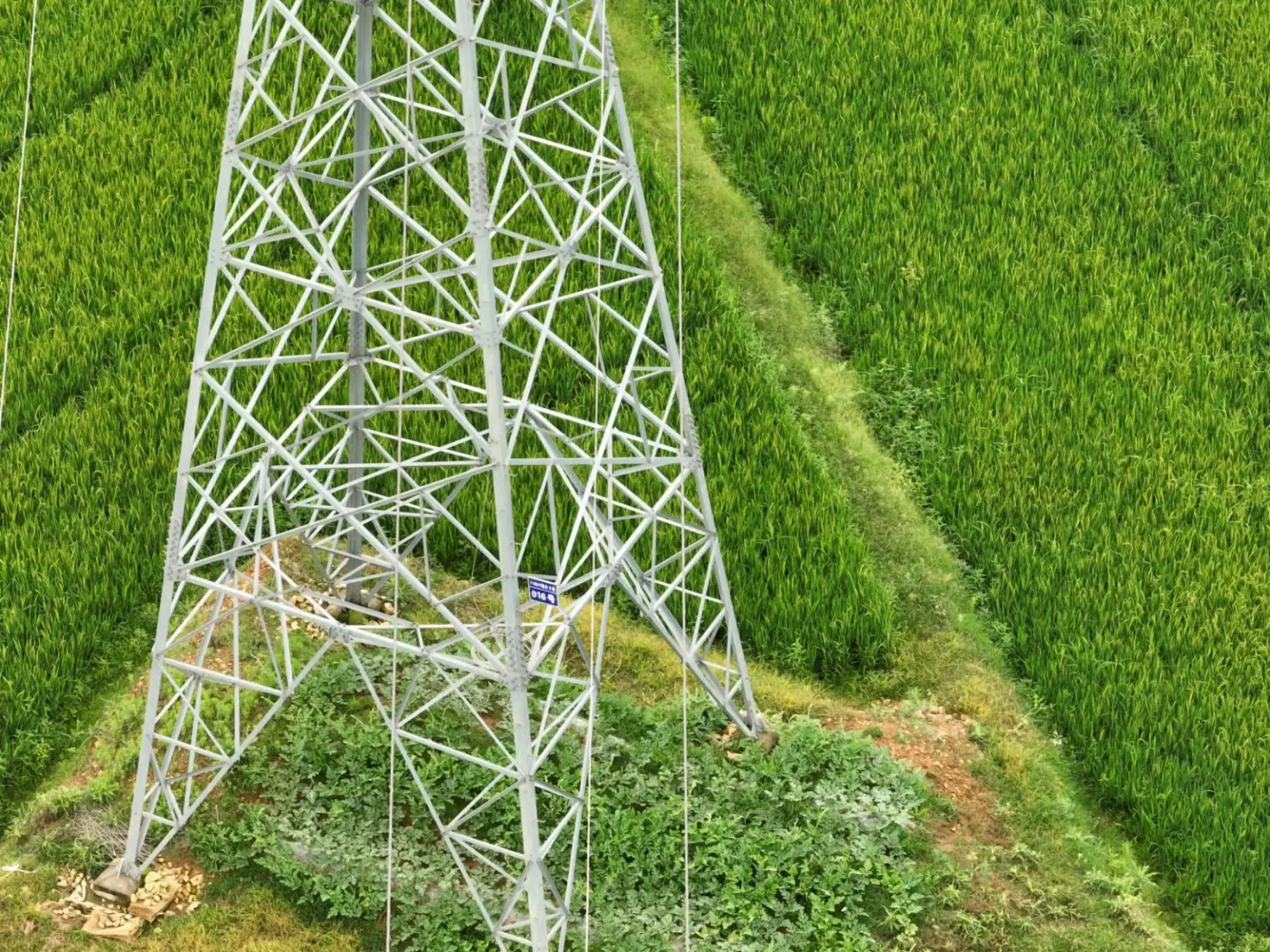

Other local reconnections: Geshui II: 0.272 km; Gezhu II: 0.295 km; Gefu: 0.283 km
Tower and pole count: 53 across the completed 110 kV works, with shared structures counted once
Conductor specification: 1 × JL/G1A-300/40 aluminium conductor steel reinforced (ACSR)
