ZS Type Hot-DIP Galvanized Clevis Link Fittings for Overhead Power Line
Product Overview

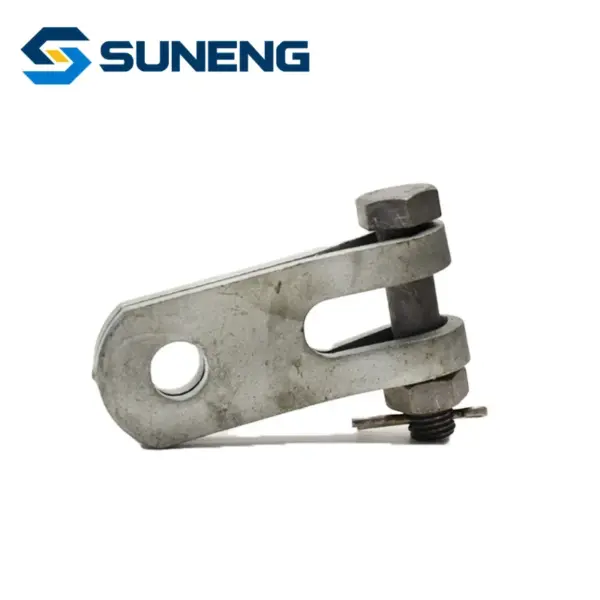

ZS Series Clevis Tongue Fittings are designed for connecting insulators, shackles and line fittings in overhead transmission and distribution projects. Manufactured from forged galvanized steel, they provide excellent mechanical strength, reliable load-bearing performance and superior corrosion resistance. Available in load ratings from 70kN to 250kN, they are suitable for a wide range of utility applications.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Quick Specs
Models: ZS-7 to ZS-25
Failure Load: 70kN-250kN
Material: Hot-Dip Galvanized Forged Steel
Connection Type: Clevis Connection
Weight Range: 0.60kg-4.33kg
Application: Suspension & Tension Line Hardware
Corrosion Protection: Hot-Dip Galvanized
Standards: IEC / GB / DL/T
OEM/ODM Service: Available
Models: ZS-7 to ZS-25
Failure Load: 70kN-250kN
Material: Hot-Dip Galvanized Forged Steel
Connection Type: Clevis Connection
Weight Range: 0.60kg-4.33kg
Application: Suspension & Tension Line Hardware
Corrosion Protection: Hot-Dip Galvanized
Standards: IEC / GB / DL/T
OEM/ODM Service: Available
Product Features
- Designed specifically for insulator string and line hardware connections
- Essential accessory for porcelain, glass and composite insulators
- Hot-dip galvanized steel provides excellent corrosion resistance
- High mechanical strength ensures secure insulator assembly
- Precision manufactured for accurate fit and reliable performance
- Suitable for transmission and distribution line applications

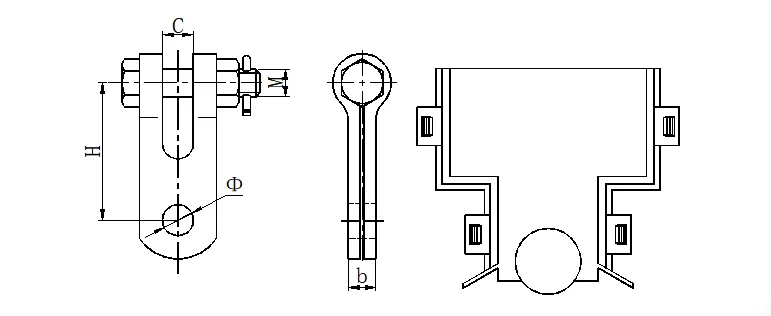

Product Structure
Technical Specifications
| Stable designCatalog No. | Model | C (mm) | b (mm) | M (mm) | Φ (mm) | H (mm) | Specified Failure Load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ZS-7 | 18 | 16 | 16 | 20 | 80 | 70 | 0.60 | |
| ZS-10 | 20 | 18 | 18 | 20 | 80 | 100 | 0.90 | |
| ZS-12 | 22 | 22 | 22 | 24 | 80 | 120 | 1.00 | |
| ZS-16 | 26 | 24 | 24 | 26 | 90 | 160 | 1.90 | |
| ZS-25 | 33 | 30 | 30 | 33 | 120 | 250 | 4.33 | |
| ZS-0780 | 18 | 16 | 16 | 20 | 80 | 70 | 0.60 | |
| ZS-1080 | 20 | 18 | 18 | 20 | 80 | 100 | 0.90 |
Applications
• Porcelain Insulator String Assembly
• Glass Insulator String Connections
• Composite Insulator Installations
• Overhead Transmission Lines
• Power Distribution Networks
• Utility Pole Hardware Systems
