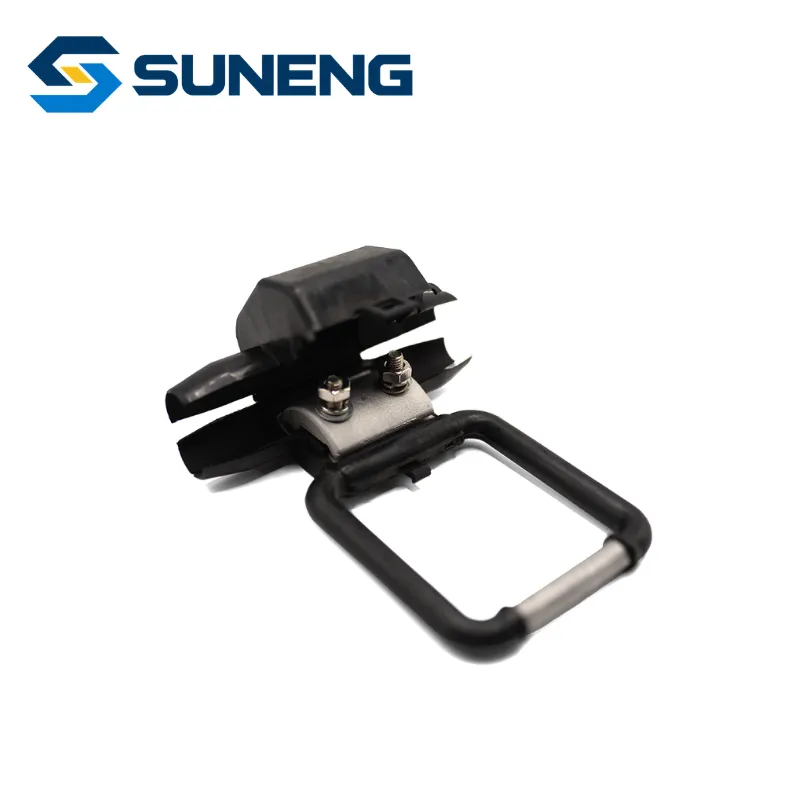

Jdl-50-240 High Performance Grounding Cable Clamp Hardware

Product Overview

JDL series insulated test & earth ring is a professional safety hardware for 10kV overhead insulated lines, integrating conductor fixing, insulation protection and earthing. With high-strength aluminum alloy clamp and flame-retardant insulation housing, it is suitable for long-term outdoor use. It provides a standardized temporary earthing point for line maintenance, reducing electric shock risks, widely used in power grid projects.

Discuss This Product Request Documents

Share the model, quantity, drawing, destination and project requirement for a focused response.

Product Features

Integrated insulation housing (flame-retardant, UV-resistant, outdoor durable)
Split-type cable gland (adaptive, dust/rain proof)
High-strength earth ring (anti-deformation, good conductivity)
Self-locking clamping (low contact resistance, firm fit)
Anti-electric shock design (full insulation protection)

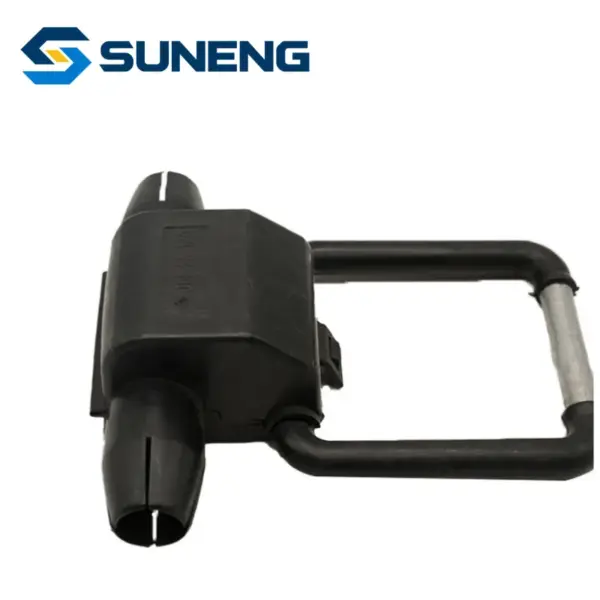

Product Structure

Technical Specifications

MODEL	Main Conductor Range	Stripping Width	Remarks
JDL-16-120	16-120	75	Integral Insulation Cover
JDL-50-240	50-240	80	Integral Insulation Cover

Applications

Overhead Distribution Lines
Substation Grounding Systems
Power Transmission Networks
Utility Pole Grounding Connections
Transformer Grounding Installations
Switchgear & Electrical Cabinet Grounding
Renewable Energy Power Stations
Industrial Plant Earthing Systems
Communication Tower Grounding
Railway Electrification Projects
Construction Site Temporary Grounding
Lightning Protection Grounding Systems
