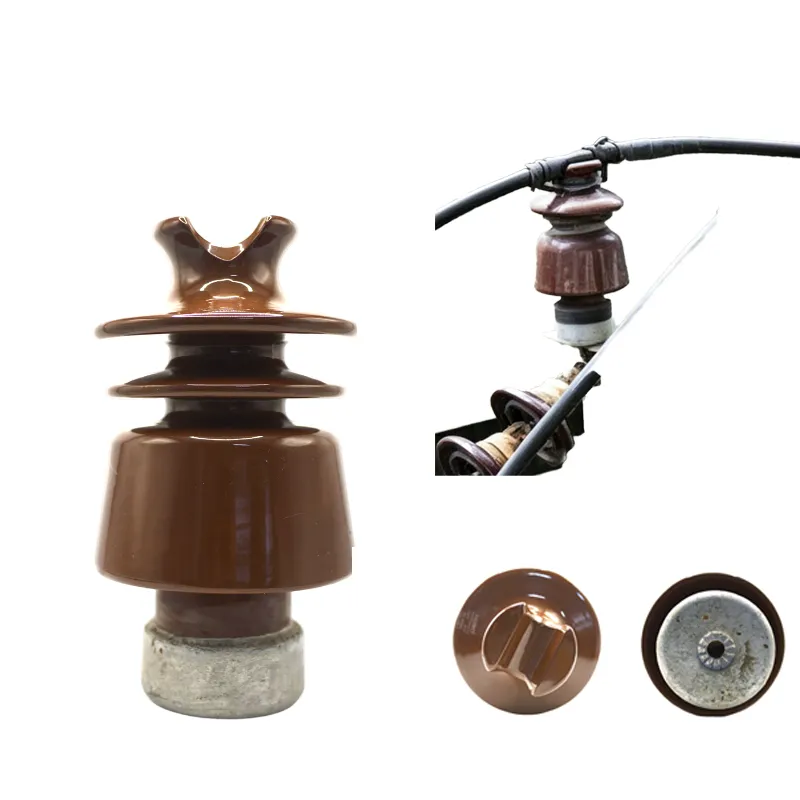

24PC(600) Electrical Ceramic Line Post Insulator Porcelain 33kv Insulators
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Overview
24PC(600) Line Post Porcelain Insulator conforms to IEC 60383 and ANSI C29.7-1993 standards, crafted with high-strength electrical porcelain featuring 600mm creepage distance and 12.5kN cantilever strength to deliver stable mechanical load resistance and superior anti-pollution insulation performance for medium voltage overhead vertical pole mounting with over 30 years outdoor service life.
Core Parameters
Model: 24PC(600)
Standards: IEC 60383, ANSI C29.7-1993
Service Life: Over 30 Years
Creepage Distance: 600 mm
Cantilever Strength: 12.5 kN
Low Frequency Dry Flashover Voltage: 85 kV
Low Frequency Wet Flashover Voltage: 65 kV
Positive Critical Impulse Flashover Voltage: 150 kV
Negative Critical Impulse Flashover Voltage: 160 kV
Mounting Thread: M20
Model: 24PC(600)
Standards: IEC 60383, ANSI C29.7-1993
Service Life: Over 30 Years
Creepage Distance: 600 mm
Cantilever Strength: 12.5 kN
Low Frequency Dry Flashover Voltage: 85 kV
Low Frequency Wet Flashover Voltage: 65 kV
Positive Critical Impulse Flashover Voltage: 150 kV
Negative Critical Impulse Flashover Voltage: 160 kV
Mounting Thread: M20
Product Features
- • 12.5kN stable cantilever load resistance
- • 600mm long creepage distance for anti-fouling
- • Reliable dry, wet and lightning impulse insulation
- • High-density porcelain anti-UV and salt fog aging
- • Standard M20 bottom mounting for easy installation

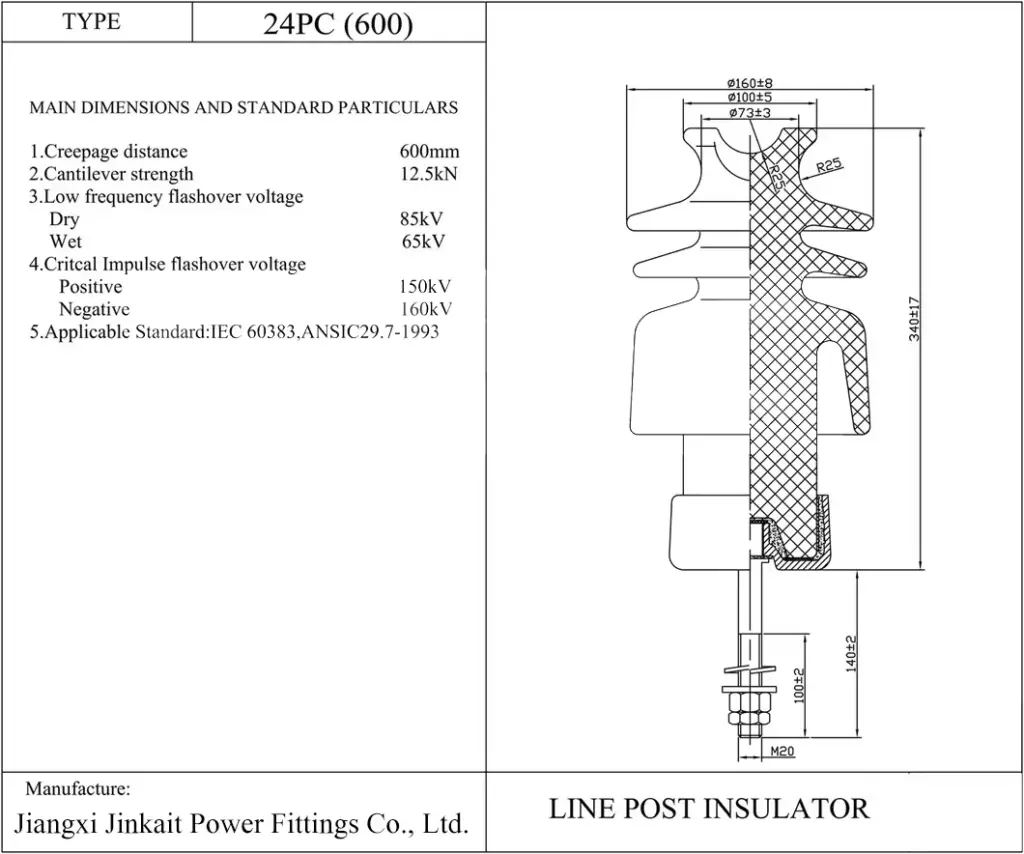

Performance & Dimensions
Application Area
• Medium voltage overhead vertical distribution lines
• Steel & concrete utility pole fixed mounting
• Light and medium pollution power transmission zones
• ANSI & IEC standard overhead power grid projects
